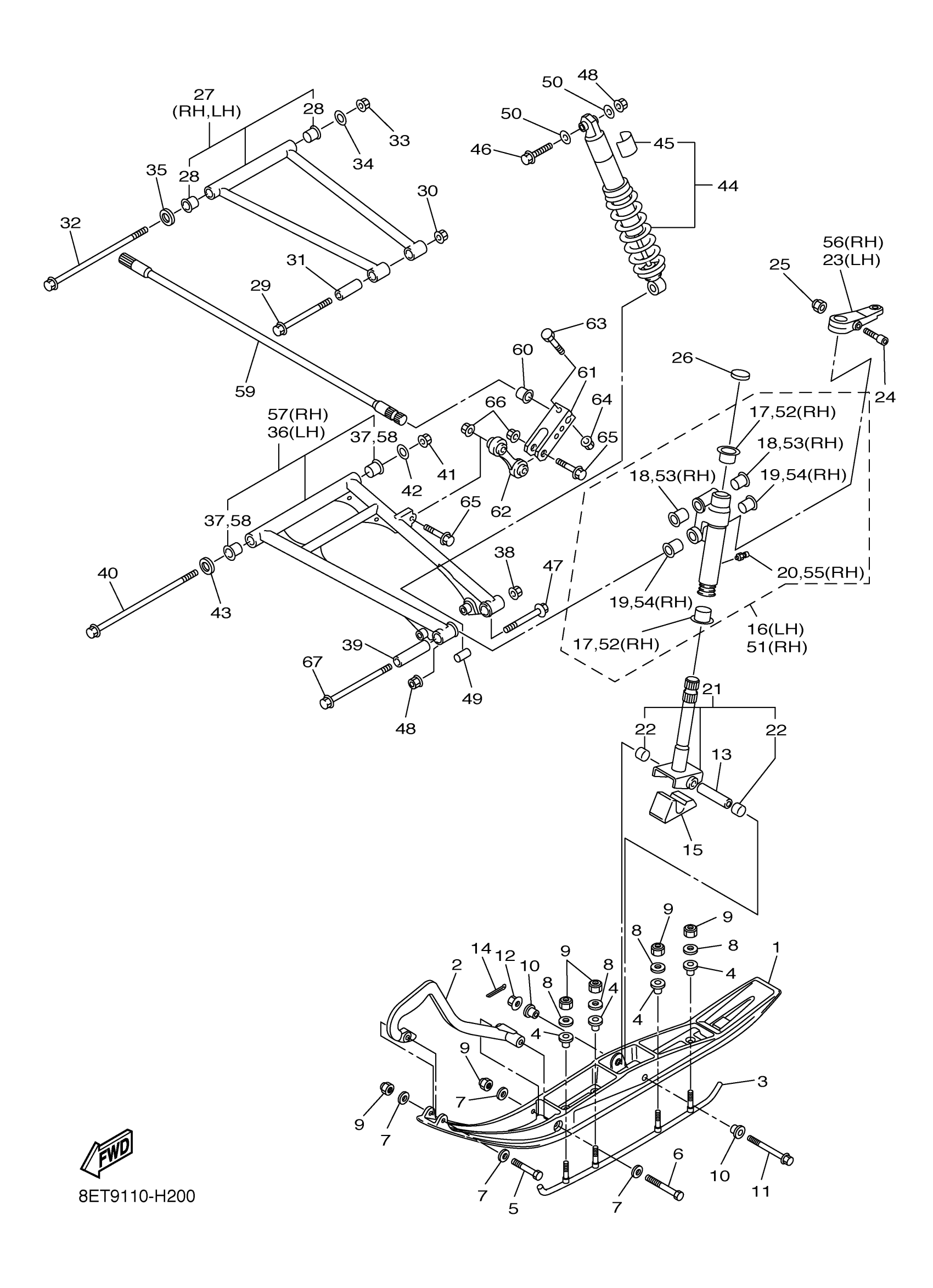

Yamaha RST90YS (RS VENTURE) 8ET9 2009 SKI Diagram

#

Description
Price

1

SKI 1, BLACK

8FE-23711-00-BK

Unavailable

2

BLACK 8DM HANDLE PLASTIC

8DM-23712-00-BK

Unavailable

3

RUNNER

8EN-23731-00-XX

Unavailable

4

BUSH, SKI 1

8EK-F3751-00-00

$5.66

5

BOLT, HEXAGON

97017-08055-00

$6.88

6

BOLT, HEXAGON

97027-08100-00

$4.55

7

WASHER, PLATE (3L7)

90201-08784-00

$2.54

8

WASHER, PLATE(3XP)

90201-086P8-00

$4.35

9

NUT, NYLON

95717-08300-00

$2.57

10

. COLLAR 1

8EX-F3754-00-00

Unavailable

11

BOLT, FLANGE

90105-10070-00

$9.46

12

NUT, SELF-LOCKING(JN5)

95607-10200-00

$3.32

13

COLLAR

90387-1012H-00

$20.68

14

PIN, COTTER

91490-20025-00

$1.31

15

STOPPER 1

8CR-23743-10-00

$22.97

16

STEERING KNUCKLE ASSY (LEFT)

8ES-23501-10-00

$275.85

17

BUSH, SOLID

90381-25115-00

$8.09

18

BUSH, SOLID

90381-15N50-00

$5.22

19

BUSH, SOLID

90381-18N51-00

$9.77

20

NIPPLE, GREASE

93700-06M03-00

$7.15

21

COLUMN, SKI ASSY

8ES-23803-00-00

$193.57

22

BUSH, BIMETAL FORMED

90384-16N51-00

$4.35

23

ARM, OUTSIDE 1

8FA-23851-00-00

$112.58

24

BOLT, HEXAGON SOCKET HEAD

90110-08N53-00

$3.45

25

NUT, SELF-LOCKING

90185-08169-00

$7.09

26

CAP, CASE

3YK-22472-40-00

$4.63

27

FRONT UPPER ARM COMP.

8JA-23540-20-00

$137.11

28

BUSH, SOLID

90381-15N50-00

$5.22

29

BOLT, FLANGE

90105-10N51-00

$6.89

30

NUT, SELF-LOCKING(JN5)

95607-10200-00

$3.32

31

COLLAR

90387-10099-00

$17.69

32

BOLT, FLANGE

90105-10N54-00

$39.60

33

NUT, SELF-LOCKING(JN5)

95607-10200-00

$3.32

34

WASHER, PLATE (17K)

90201-106F2-00

$7.66

35

WASHER

90209-15N50-00

$1.58

36

FRONT LOWER ARM COMP. (LEFT)

8JA-23570-20-00

$279.25

37

BUSH, SOLID

90381-16N51-00

$7.52

38

NUT, U FLANGE

95607-12200-00

$5.43

39

COLLAR

90387-12N54-00

$16.71

40

BOLT, FLANGE

90105-10N55-00

$51.09

41

NUT, SELF-LOCKING(JN5)

95607-10200-00

$3.32

42

WASHER, PLATE (17K)

90201-106F2-00

$7.66

43

WASHER

90209-15N50-00

$1.58

44

ABSORBER ASSY 1

8ET-2376A-30-00

$591.99

45

LABEL, WARNING

4AA-22259-60-00

$6.02

46

BOLT, WASHER BASED (4K0)

90105-10169-00

$9.98

47

BOLT, WASHER BASED(59V)

90105-10392-00

$8.40

48

NUT, SELF-LOCKING(JN5)

95607-10200-00

$3.32

49

COLLAR

90387-10N59-00

$12.34

50

WASHER, PLATE (17K)

90201-106F2-00

$7.66

51

STEERING KNUCKLE ASSY (RIGHT)

8ES-23502-10-00

$392.12

52

BUSH, SOLID

90381-25115-00

$8.09

53

BUSH, SOLID

90381-15N50-00

$5.22

54

BUSH, SOLID

90381-18N51-00

$9.77

55

NIPPLE, GREASE

93700-06M03-00

$7.15

56

ARM, OUTSIDE 2

8FA-23852-00-00

$110.66

57

FRONT LOWER ARM COMP. (RIGHT)

8JA-23580-20-00

$279.25

58

BUSH, SOLID

90381-16N51-00

$7.52

59

BAR, STABILIZER FRONT

8FG-2386E-00-00

$128.69

60

BUSH, STABILIZER FRONT

8FG-2386G-00-00

$2.91

61

ARM, STABILIZER

8FG-2386L-00-00

$65.52

62

JOINT, STABILIZER 1

8ES-2385L-00-00

$103.15

63

BOLT, HEXAGON (538)

90101-06278-00

$1.82

64

NUT, U FLANGE

95604-06200-00

$2.35

65

BOLT, FLANGE(4FM)

95814-08030-00

$6.28

66

NUT, U FLANGE(4KG)

95604-08200-00

$2.17

67

BOLT, FLANGE

90105-12N54-00

$14.18
