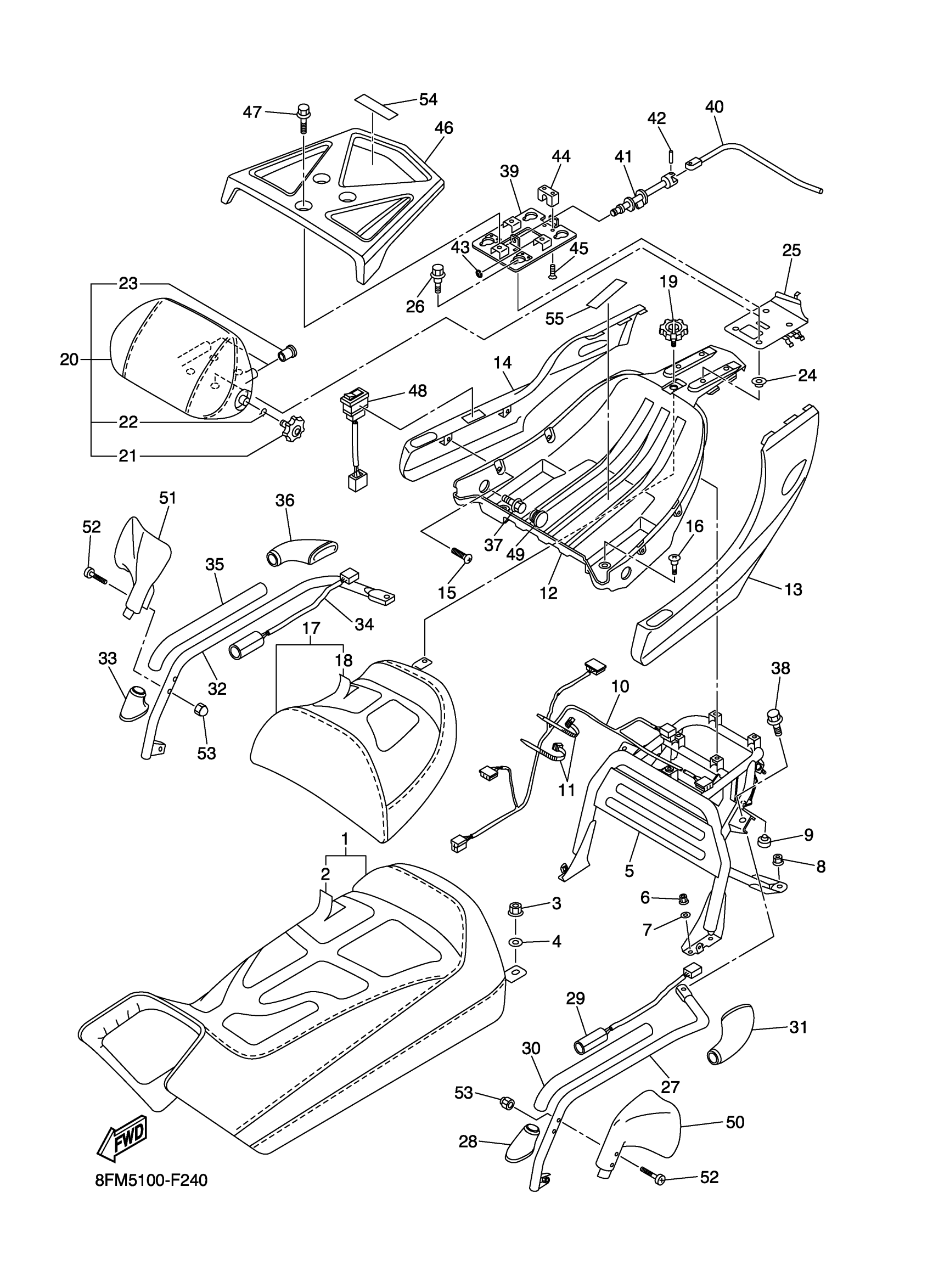

Yamaha RST90YS (RS VENTURE) 8ET9 2009 SEAT Diagram

#

Description
Price

1

SINGLE SEAT ASSY

8ET-24710-00-00

$822.99

2

SEAT COVER COMP.

8ET-2470F-01-00

Unavailable

3

NUT, NYLON

95717-08300-00

$2.57

4

WASHER, PLATE

90201-08053-00

$5.63

5

REINFORCEMENT

8ET-24766-01-00

$341.62

6

NUT, NYLON

95717-08300-00

$2.57

7

WASHER, PLATE

90201-08053-00

$5.63

8

NUT, SELF-LOCKING

95602-08200-00

$2.77

9

STOPPER

8FA-24768-00-00

$4.89

10

CORD, TAILLIGHT

8ET-84717-00-00

$43.65

11

CLAMP(4FM)

90464-15195-00

$2.77

12

COVER, TAIL

8ET-24756-01-00

$74.34

13

COVER, TAIL 1

8ET-2471K-00-00

$178.37

14

COVER, TAIL 2

8ET-2472K-00-00

$178.37

15

SCREW, TRUSS TAP.

97707-50025-00

$6.18

16

SCREW, BINDING

90154-06009-00

$2.92

17

TANDEM SEAT ASSY

8ET-24750-00-00

$533.99

18

SEAT COVER COMP. ,2

8ET-2470H-00-00

$289.83

19

KNOB

8ET-24598-00-00

$35.86

20

SEAT BACK ASSY

8ET-24790-10-00

$803.99

21

KNOB

8DM-24598-01-00

$48.00

22

CLIP

8DM-24519-00-00

$6.40

23

PLUG (5R2)

90338-18122-00

$6.71

24

COLLAR(3VD)

90387-072Y3-00

$5.77

25

PLATE, LOCK

8ET-2479K-00-00

$47.02

26

BOLT

8ET-24834-00-00

$3.17

27

STAY, FRONT 1

8ET-2474F-00-00

$73.83

28

COVER 1

8ET-2842M-00-00

$13.57

29

ASSIST GRIP WARMER ASSY 1

8GS-2474B-00-00

$146.82

30

COVER

8ET-24796-00-00

$42.57

31

COVER 3

8ET-2843J-00-00

$77.18

32

STAY, FRONT 2

8ET-2474G-00-00

$53.69

33

COVER 2

8ET-2842N-00-00

$13.57

34

ASSIST GRIP WARMER ASSY 1

8GS-2474B-00-00

$146.82

35

COVER

8ET-24796-00-00

$42.57

36

COVER 4

8ET-2844J-00-00

$29.60

37

BOLT, FLANGE

95814-08016-00

$6.68

38

BOLT, FLANGE(8AB)

95817-08020-00

$7.00

39

PLATE, GUIDE 2

8ET-2476E-00-00

$73.26

40

LEVER, SEAT

8ET-2477F-00-00

$72.02

41

BAR, SEAT LEVER

8ET-2478C-00-00

$87.85

42

PIN, SPRING

91690-40020-00

$3.30

43

CIRCLIP

99080-07600-00

$2.89

44

HOLDER 1

8ET-24847-00-00

$52.97

45

SCREW (1FK)

90151-06036-00

$7.22

46

CARRIER, REAR

8ET-24842-00-00

$177.94

47

BOLT, FLANGE(8AB)

95817-08020-00

$7.00

48

SWITCH

8ET-82917-00-00

$184.08

49

PLUG(XA1)

90338-28242-00

$1.95

50

GUARD, BRUSH 1

8ET-26141-00-00

$62.65

51

GUARD, BRUSH 2

8ET-26142-00-00

$59.60

52

SCREW, BINDING

98907-06030-00

$5.94

53

NUT (J17)

95380-06800-00

$6.74

54

EMBLEM

8ET-24897-00-00

$3.14

55

EMBLEM

8FM-24897-01-00

$3.54
