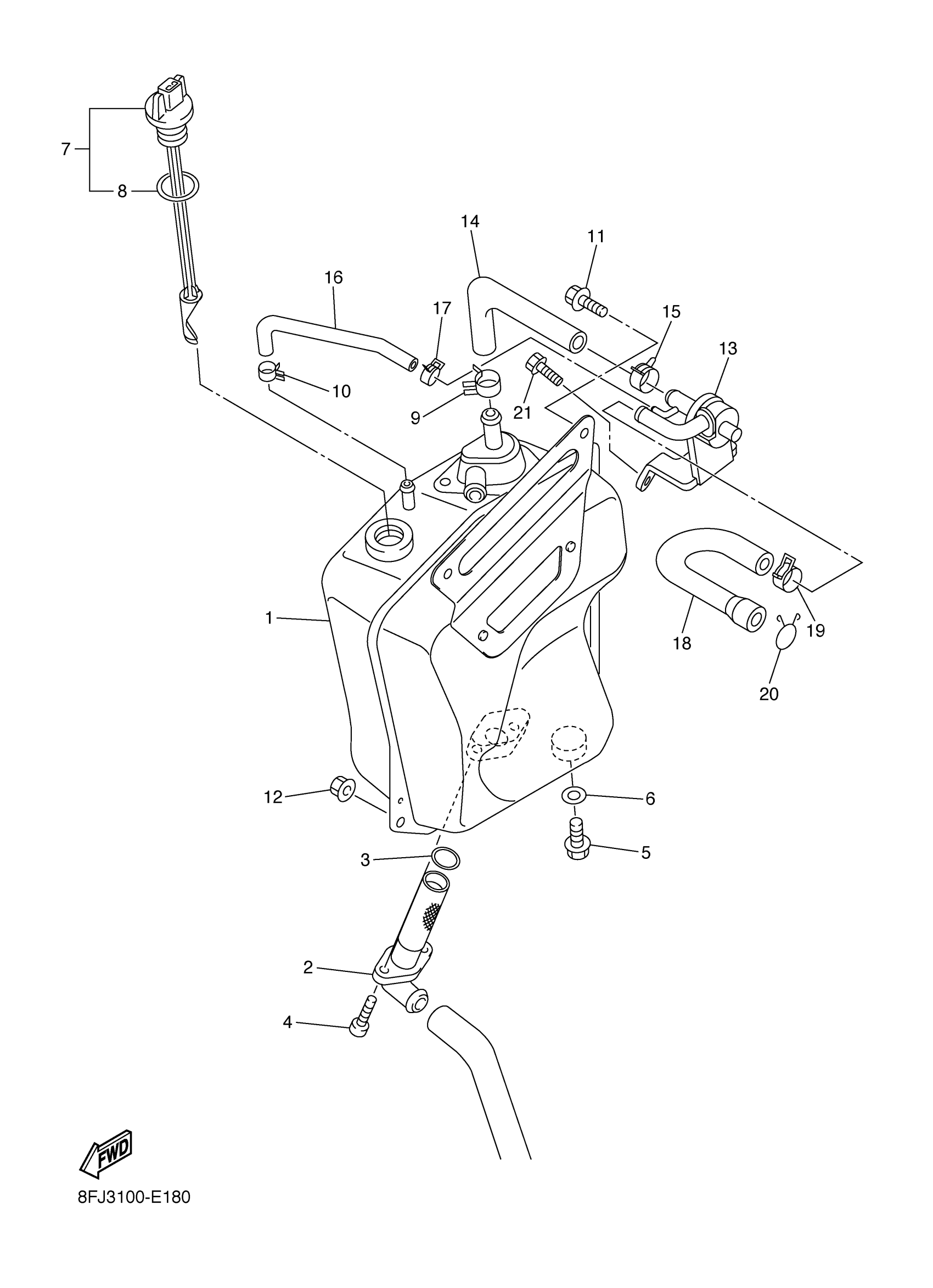

Yamaha RST90YS (RS VENTURE) 8ET9 2009 OIL TANK Diagram

#

Description
Price

1

TANK, OIL

8FG-21751-02-00

$541.17

2

OIL PIPE COMP. 2

8FG-13406-00-00

$60.89

3

O-RING (603)

93210-19026-00

$6.68

4

BOLT,SOCKET

91317-06016-00

$1.16

5

BOLT, FLANGE

95817-08012-00

$3.98

6

GASKET(3AJ)

90430-08204-00

$6.36

7

OIL LEVEL GAUGE ASSY

8FA-85720-01-00

$81.05

8

O-RING

8FP-85075-00-00

$8.25

9

CLIP

90468-08104-00

$2.72

10

CLIP (7K7)

90467-11044-00

$5.10

11

BOLT, FLANGE

95817-06016-00

$1.49

12

NUT, SELF-LOCKING

95602-08200-00

$2.77

13

VALVE ASSY.

8ES-13520-00-00

$166.94

14

PIPE, OIL TANK BREATHER

8ES-21745-00-00

$17.65

15

CLIP

90468-08104-00

$2.72

16

PIPE, OIL TANK

8ES-2174N-00-00

$13.92

17

CLIP (7K7)

90467-11044-00

$5.10

18

PIPE 1

8ES-21816-00-00

$28.25

19

CLIP (23E)

90467-20085-00

$8.31

20

CLIP (21V)

90467-22080-00

$6.17

21

BOLT, FLANGE

95817-06020-00

$2.69
