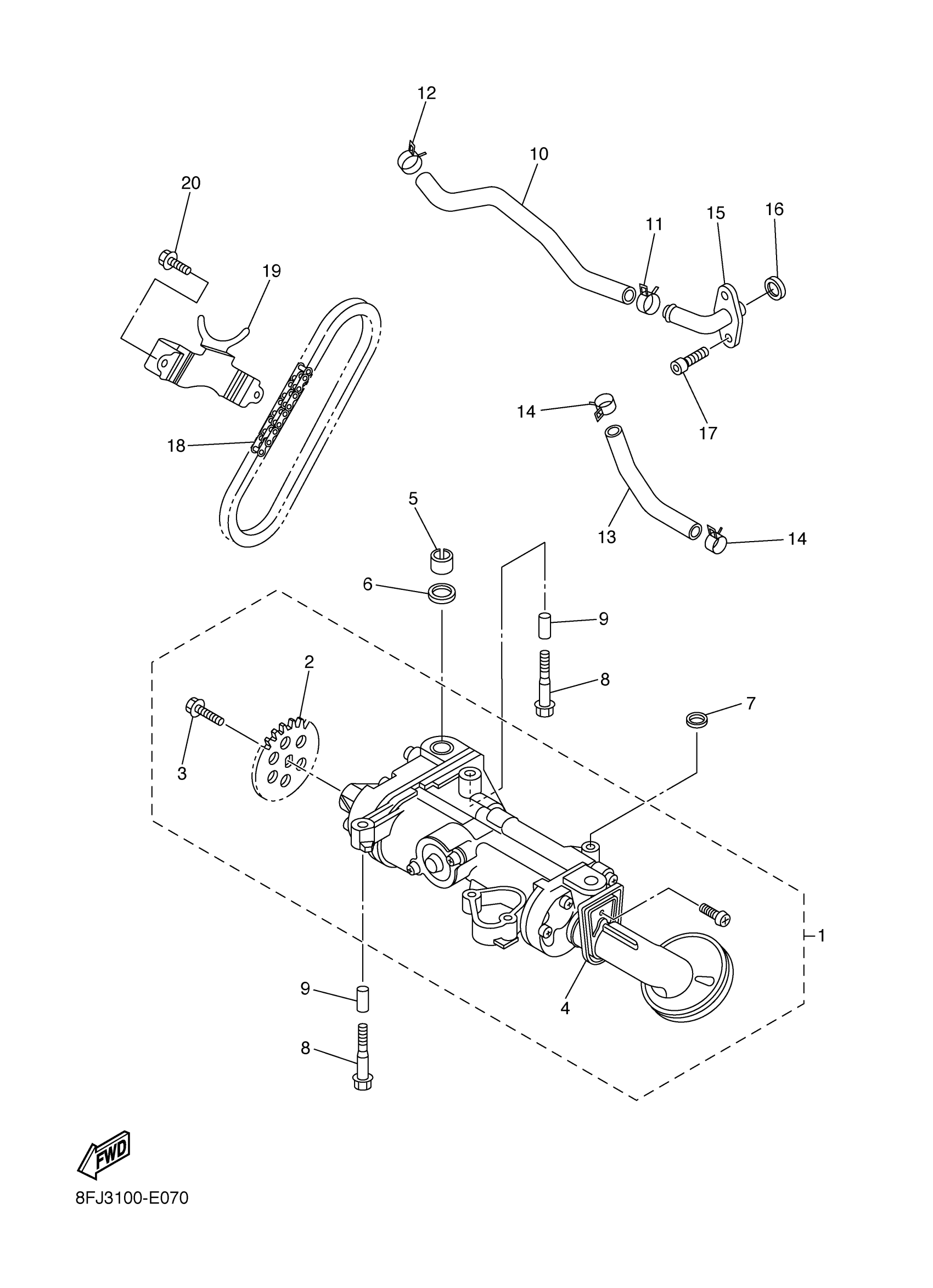

Yamaha RST90YS (RS VENTURE) 8ET9 2009 OIL PUMP Diagram

#

Description
Price

1

OIL PUMP ASSY

8ES-13300-00-00

$787.99

2

SPROCKET, DRIVEN

4XV-13355-00-00

Unavailable

3

BOLT, FLANGE

90105-06066-00

$6.31

4

SPACER, STRAINER

8ES-13427-00-00

$14.55

5

PIPE

8ES-13284-00-00

$3.49

6

O-RING (1L9)

93210-18322-00

$4.77

7

O-RING (26H)

93210-14579-00

$5.69

8

BOLT, FLANGE

95817-06040-00

$4.54

9

PIN, DOWEL(8AH)

91808-22019-00

$6.86

10

HOSE, OIL 1

8ES-13464-00-00

$15.94

11

CLIP(34X)

90467-22097-00

$7.14

12

CLIP(34X)

90467-22097-00

$7.14

13

HOSE, OIL 2

8ES-13465-00-00

$13.17

14

CLIP(34X)

90467-22097-00

$7.14

15

CONNECTOR, SUCTION PIPE

8ES-13115-00-00

$39.06

16

O-RING (26H)

93210-16629-00

$5.86

17

BOLT(3MA)

91312-06016-00

$4.89

18

CHAIN

94580-25064-00

$9.89

19

HOLDER

8ES-13898-01-00

$25.38

20

BOLT, FLANGE

95817-06012-00

$1.49
