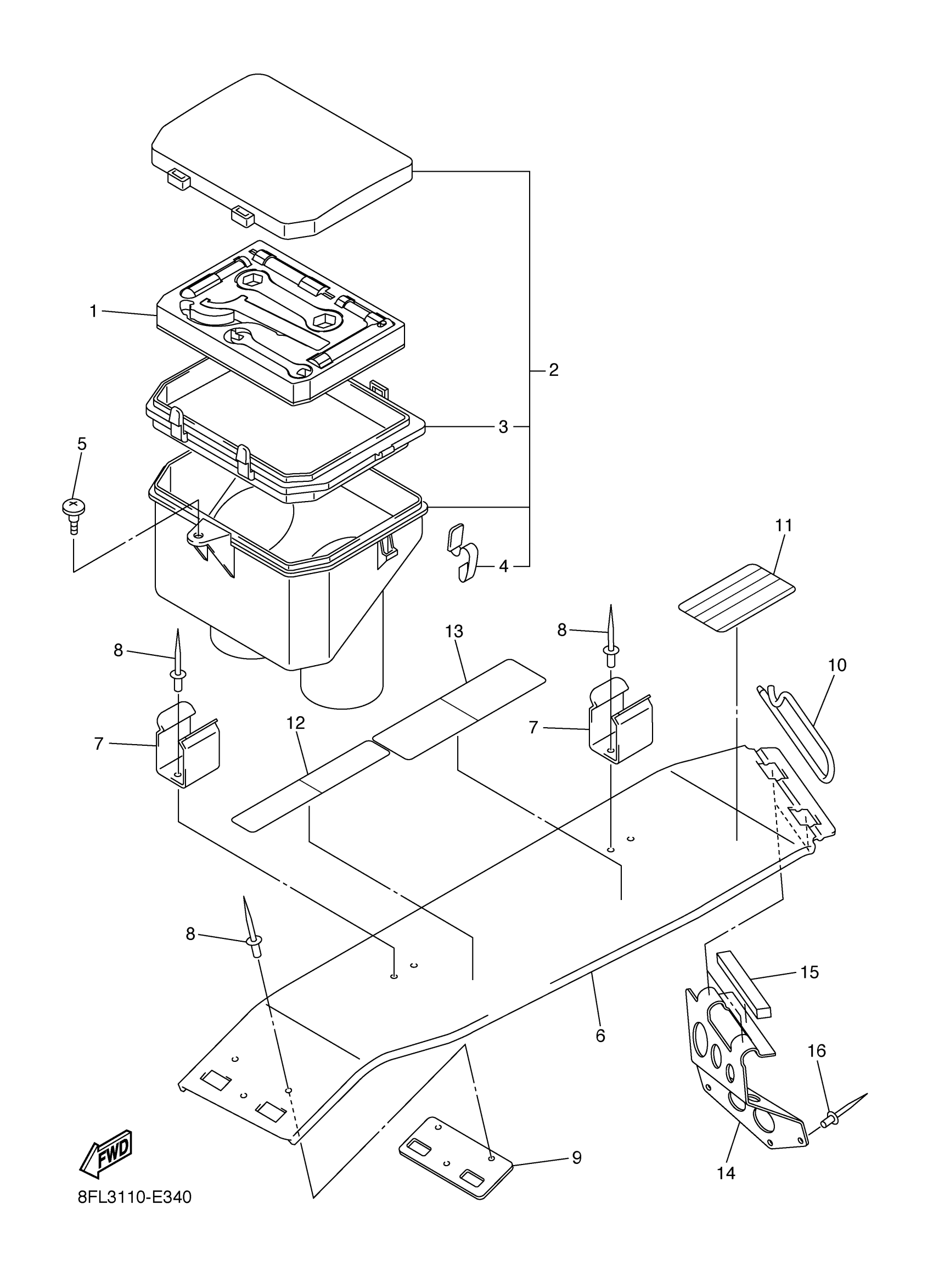

Yamaha RST90YS (RS VENTURE) 8ET9 2009 GUARD LUGGAGE BOX Diagram

#

Description
Price

1

TOOL KIT

8ES-28100-00-00

Unavailable

2

LUGGAGE BOX ASSY

8FA-77390-00-00

$84.23

3

BOX, TOOL

8FA-77381-00-00

Unavailable

4

HOOK

8FA-2814E-00-00

$6.64

5

SCREW, BINDING

90154-06009-00

$2.86

6

GUARD, DRIVE

8FA-77311-02-00

Unavailable

7

STAY, BELT

8CR-77338-00-00

$4.80

8

RIVET, BLIND

90267-48010-00

$1.97

9

PROTECTOR

8FA-77373-00-00

Unavailable

10

PIN

8CR-77384-01-00

$11.60

11

LABEL, WARNING 2

8BD-77762-00-00

$3.89

12

LABEL, CAUTION

8ES-1417E-00-00

Unavailable

13

LABEL 1

8ES-47578-00-00

Unavailable

14

HOOK

8FA-21973-00-00

Unavailable

15

DAMPER 1

8CR-77319-00-00

$1.49

16

RIVET, BLIND

90267-47195-00

Unavailable
