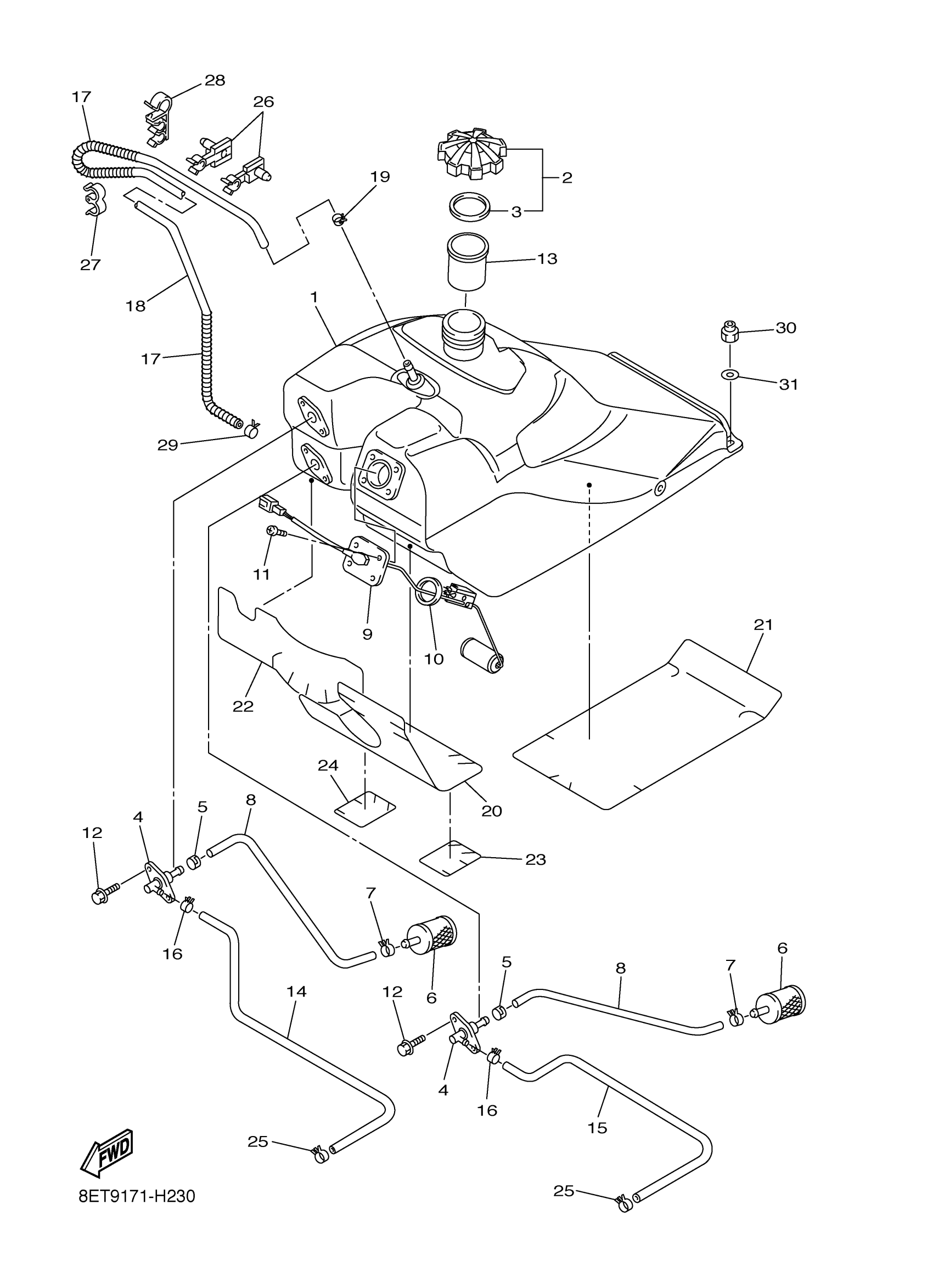

Yamaha RST90YS (RS VENTURE) 8ET9 2009 FUEL TANK Diagram

#

Description
Price

1

TANK, FUEL

8FJ-24111-10-00

$1,103.99

2

CAP ASSY

8FG-24610-01-00

$34.95

3

GASKET, CAP 1

8HV-24641-00-00

Unavailable

4

SUCTION PIPE COMP. 1

8CR-24301-01-00

$55.60

5

CLIP

90468-04092-00

$2.54

6

FILTER ASSY

8H5-24560-00-00

$11.47

7

CLIP (7K7)

90467-11044-00

$5.10

8

PIPE, SUCTION 1

8FA-24335-01-00

Unavailable

9

SENDER UNIT ASSY, FUEL METER

8FG-85752-02-00

Unavailable

10

O-RING (102)

93210-41041-00

$5.86

11

SCREW, BIND

98902-05008-00

$1.23

12

BOLT, FLANGE

95817-06016-00

$1.49

13

TUBE, FILLER

8FG-24114-00-00

$24.80

14

PIPE, FUEL 1

8ET-24311-00-00

$75.12

15

PIPE, FUEL 1

8ET-24311-10-00

$75.12

16

CLIP (7K7)

90467-11044-00

$5.10

17

SPRING, COMPRESSION (10L)

90501-08668-00

$10.02

18

TUBE, FLEXIBLE VINYL(8AT)

91A20-05145-00

$23.43

19

CLIP (8A1)

90467-09026-00

$2.72

20

PROTECTOR, FUEL TANK

8FA-24141-00-00

$64.48

21

PROTECTOR, FUEL TANK

8FA-24141-10-00

$58.80

22

INSULATOR, FUEL TANK 1

8FA-2416F-00-00

$28.42

23

INSULATOR, FUEL TANK 1

8HF-2416F-00-00

$4.20

24

INSULATOR, FUEL TANK 2

8HF-2416G-00-00

$4.23

25

CLIP (7K7)

90467-11044-00

$5.10

26

CLAMP

90464-09015-00

$3.42

27

CLAMP(4HM)

90464-13194-00

$1.46

28

CLAMP

90464-16010-00

$4.45

29

CLIP (8A1)

90467-09026-00

$2.72

30

NUT, NYLON

95717-08300-00

$2.57

31

WASHER, PLATE

90201-08053-00

$5.63
