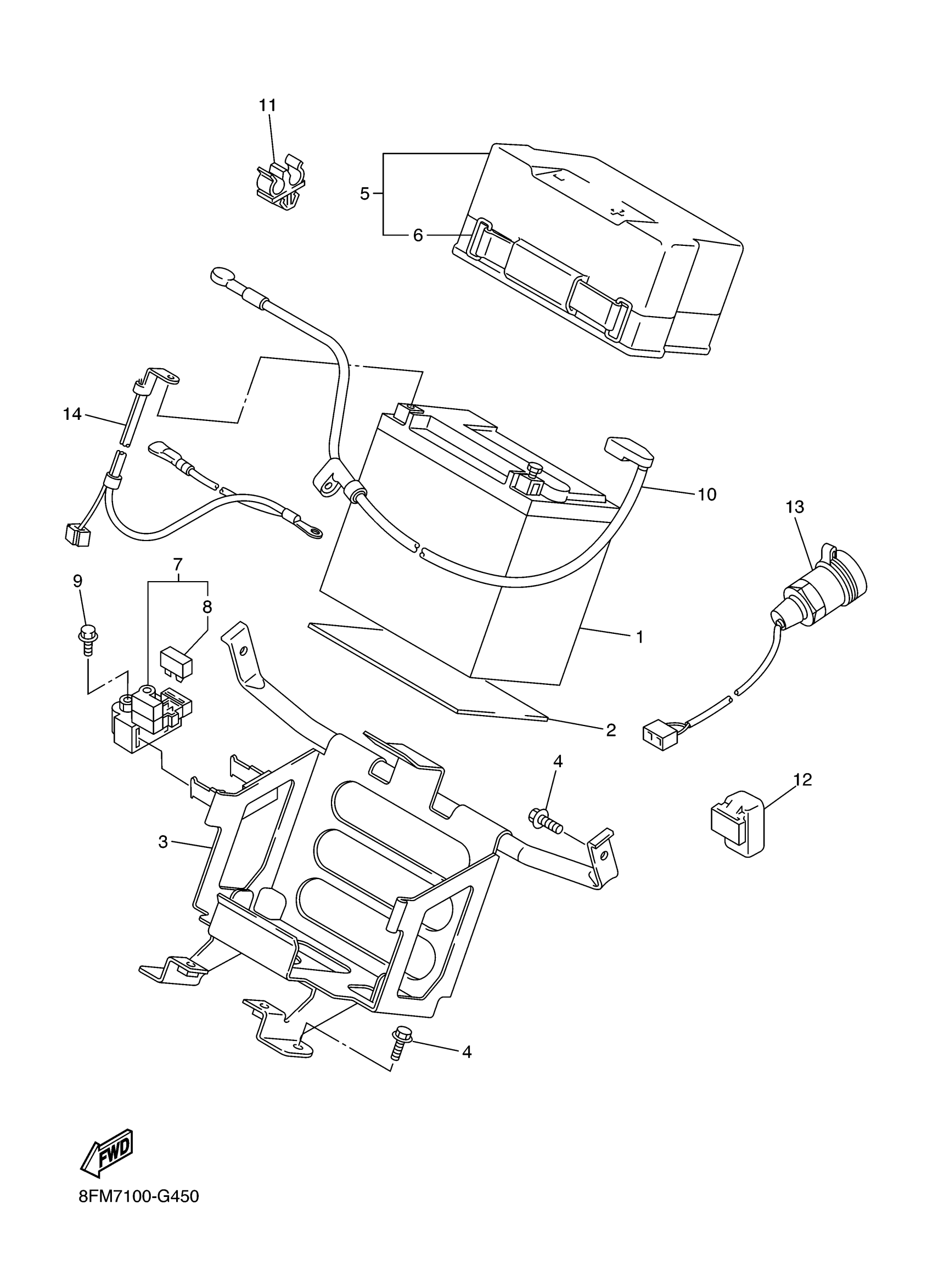

Yamaha RST90YS (RS VENTURE) 8ET9 2009 ELECTRICAL 2 Diagram

BATTERY ASSY (YUASA YTX20L-BS)

YTX-20LBS-00-00

$160.64

SEAT, BATTERY

8FA-82122-00-00

Unavailable

BRACKET, BATTERY

8ES-2199G-00-00

Unavailable

BOLT, FLANGE

95814-08016-00

$6.35

COVER, BATTERY

8FA-82129-00-00

$35.83

BAND, BATTERY

8DM-82131-10-00

$12.14

STARTER RELAY ASSY (RC19-003)

4DN-81940-12-00

$125.70

FUSE (12V 30A)

1AE-82151-00-00

$5.93

BOLT, FLANGE

95022-06008-00

$6.17

WIRE, PLUS LEAD

8FA-82115-01-00

Unavailable

CLAMP(87A)

90464-08126-00

$1.86

RELAY ASSY (8DM-11)

8DM-81950-11-00

$22.75

TERMINAL COMP.

8FP-8254B-00-00

Unavailable

WIRE, MINUS LEAD

8ES-82116-01-00

Unavailable
