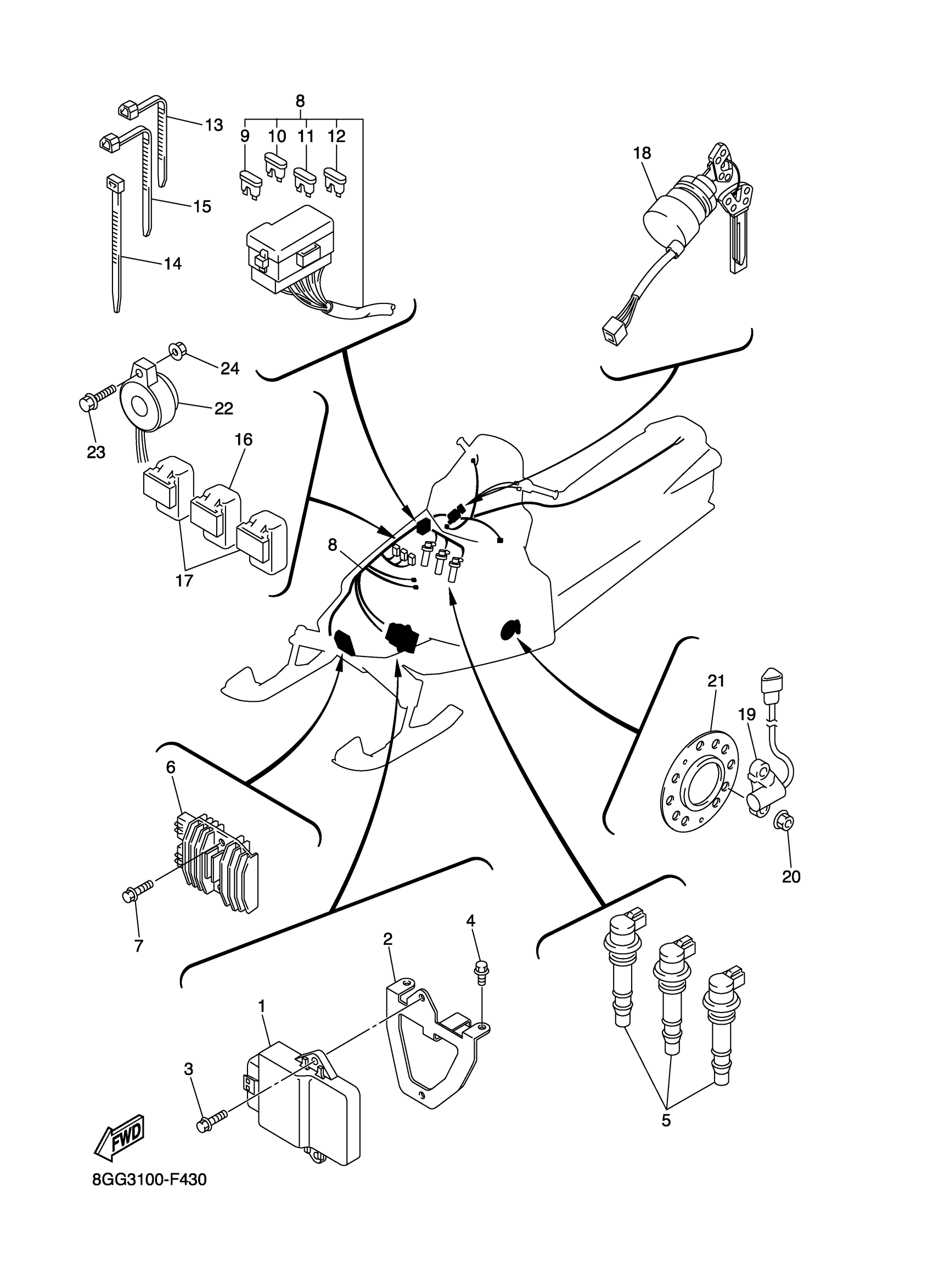

Yamaha RST90YS (RS VENTURE) 8ET9 2009 ELECTRICAL 1 Diagram

#

Description
Price

1

IGNITOR UNIT ASSY

8ET-82305-20-00

Unavailable

2

BRACKET, UNIT

8ES-85991-00-00

$12.08

3

BOLT, FLANGE

95817-06016-00

$1.49

4

BOLT, FLANGE

95812-06010-00

$2.60

5

IGNITION COIL ASSY

8ES-82310-00-00

$130.88

6

RECTIFIER & REGULATOR ASSY

5JW-81960-00-00

$364.55

7

BOLT, FLANGE DEEP RECESS

95D95-06025-00

$1.49

8

WIRE HARNESS ASSY

8ET-82590-20-00

Unavailable

9

FUSE

5JJ-82151-20-00

$6.10

10

. FUSE (10A)

67F-82151-40-00

$6.20

11

FUSE (15A)

67F-82151-50-00

$3.55

12

. FUSE (3A)

67F-82151-30-00

$4.77

13

CLAMP(4FM)

90464-15195-00

$2.64

14

CLAMP(4FM)

90464-15195-00

$2.64

15

CLAMP

90464-13077-00

$6.35

16

RELAY ASSY

5DM-81950-01-00

Unavailable

17

RELAY ASSY (8DM-11)

8DM-81950-11-00

Unavailable

18

MAIN SWITCH ASSY

8FJ-82510-00-00

Unavailable

19

SENSOR, SPEED

8GK-83755-12-00

Unavailable

20

NUT, NYLON

95717-08300-00

Unavailable

21

HOUSING, FRONT AXLE

8EK-47551-00-00

Unavailable

22

BUZZER

8CW-83383-00-00

Unavailable

23

SCREW, WITH WASHER

90159-05035-00

Unavailable

24

NUT, FLANGE

95702-05500-00

Unavailable
