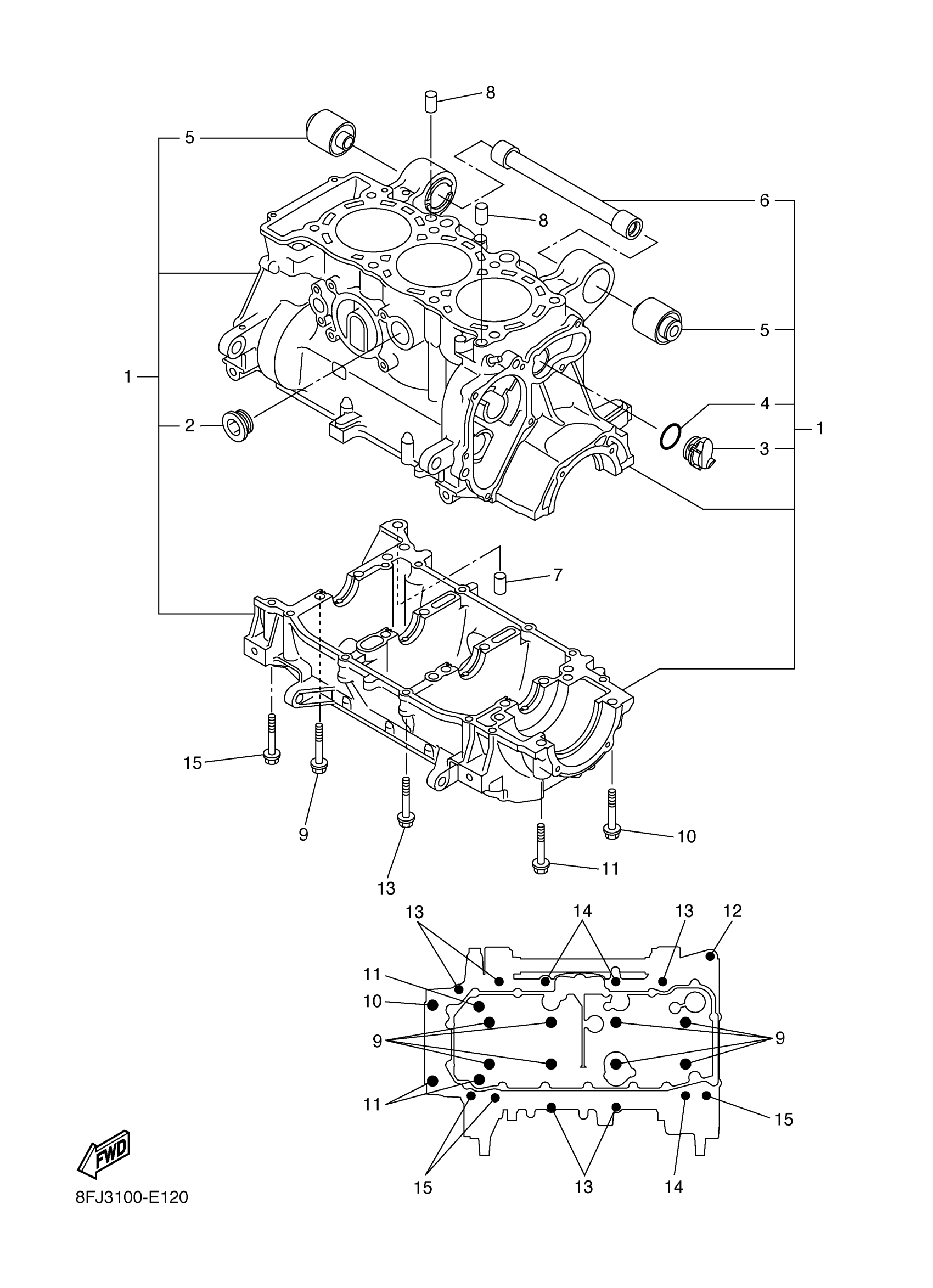

Yamaha RST90YS (RS VENTURE) 8ET9 2009 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSY

8ES-15109-08-00

$3,192.99

2

PLUG, STRAIGHT SCREW

90340-27001-00

$17.68

3

PLUG, BLIND 1

8ES-15167-00-00

$8.69

4

O-RING(1HX)

93210-24709-00

$8.11

5

DAMPER

8FA-2139X-00-00

$38.35

6

SPACER

8ES-21459-00-00

$20.86

7

PIN, DOWEL(3VD)

99530-10114-00

$2.23

8

PIN, DOWEL(3VD)

99530-10114-00

$2.23

9

BOLT, WITH WASHER

90119-09004-00

$9.17

10

BOLT, FLANGE

95817-08055-00

$2.82

11

BOLT, FLANGE(JN5)

95817-08070-00

$3.20

12

BOLT

90109-06185-00

$6.71

13

BOLT, FLANGE

95812-06055-00

$1.46

14

BOLT, FLANGE

95812-06080-00

$6.32

15

BOLT, FLANGE

95817-06080-00

$2.75
