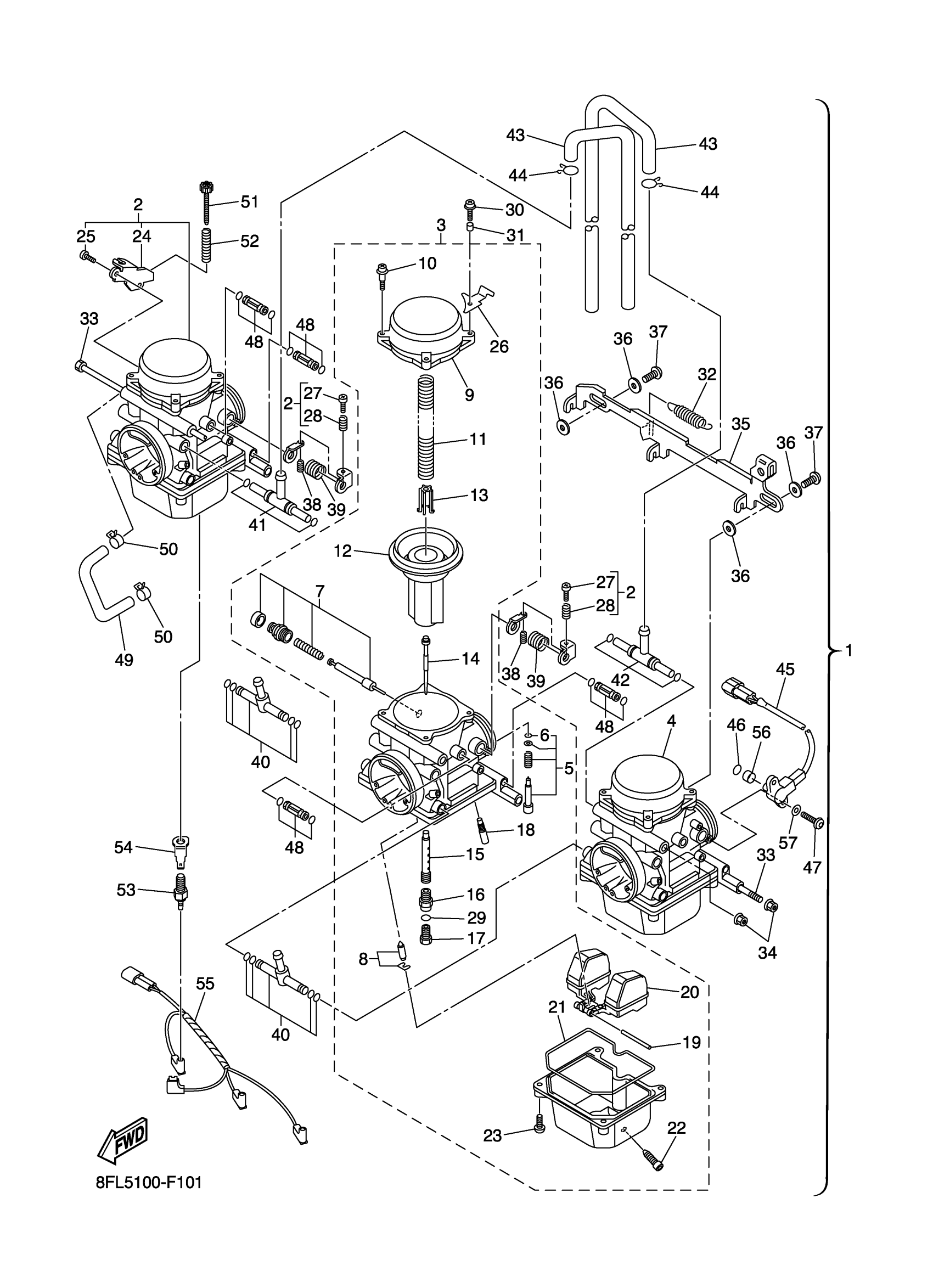

Yamaha RST90YS (RS VENTURE) 8ET9 2009 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY

8ES-14900-02-00

Unavailable

2

CARBURETOR ASSY 1

8ES-14901-01-00

$481.99

3

CARBURETOR ASSY 2

8ES-14902-01-00

$555.99

4

CARBURETOR ASSY 3

8ES-14903-01-00

$555.99

5

PILOT SCREW SET

8ES-14105-01-00

Unavailable

6

O-RING

8ES-14147-00-00

$7.49

7

STARTER SET

8ES-1410A-00-00

$42.72

8

NEEDLE VALVE SET

8ES-14107-00-00

$37.55

9

COVER, DIAPHRAGM

8ES-14958-00-00

$69.18

10

SCREW

4JH-14216-00-00

$28.08

10

SCREW

4JH-14216-00-00

$28.08

11

SPRING, DIAPHRAGM

8ES-14933-00-00

$4.86

12

DIAPHRAGM ASSY

8ES-14940-00-00

$144.95

13

SEAT, SPRING

4JH-14936-00-00

$26.51

14

NEEDLE

8ES-14916-00-00

$18.62

15

JET, NEEDLE

8ES-14947-00-00

$35.66

16

PIPE, MAIN BREED

8ES-1414G-00-00

$26.15

17

JET, MAIN (#145)

3TJ-14943-36-00

$17.40

17

JET, MAIN (#150)

3TJ-14943-37-00

$14.26

17

JET, MAIN

3TJ-14943-87-00

$17.41

18

JET (#40)

8ES-14948-03-00

$12.64

18

JET (#45)

8ES-14948-05-00

$18.21

18

JET (#48)

8ES-14948-06-00

$18.77

18

JET (#50)

8ES-14948-07-00

$19.45

19

. PIN, FLOAT ARM

663-14548-00-00

$5.34

20

FLOAT

8ES-14985-00-00

$33.55

21

GASKET, FLOAT CHAMBER

8ES-14984-00-00

$18.21

22

PLUG, DRAIN

3TJ-14191-40-00

$17.22

23

SCREW, PAN HEAD(GA5)

98580-04014-00

$2.78

24

BRACKET, THROTTLE 1

8ES-14926-01-00

$38.00

25

SCREW

8ES-14592-09-00

Unavailable

26

BRACKET, THROTTLE 1

4TV-14926-00-00

$28.51

27

SCREW

5JG-14565-00-00

$6.52

28

SPRING, ADJUST SCREW

5JG-14531-00-00

$6.52

29

O-RING

3TJ-14564-40-00

$8.17

30

SCREW

8ES-14565-00-00

$2.20

31

COLLAR

4JH-14264-00-00

$12.75

32

SPRING

8ES-14935-00-00

$9.72

33

BOLT, HOLDING

8ES-14162-00-00

$18.83

34

NUT, FLANGE

95704-05500-00

Unavailable

35

LEVER, STARTER

8ES-14965-00-00

$47.43

36

COLLAR

8ES-14578-00-00

$1.32

37

SCREW

8ES-14567-00-00

$1.32

38

SPRING, THROTTLE STOP

4YR-14133-00-00

$6.46

39

SPRING

4JH-14487-00-00

$6.52

40

PIPE, FUEL

8ES-14295-00-00

$26.83

41

JOINT 1

8ES-13815-00-00

$35.08

42

JOINT 2

8ES-13816-00-00

$35.08

43

PIPE

8ES-14197-01-00

$22.69

44

CLIP

3TJ-14937-40-00

$6.43

45

THROTTLE SENSOR ASSY

8ES-85885-01-00

$387.23

46

O-RING

4TV-14562-00-00

$6.52

47

SCREW, PAN HEAD(6G8)

98507-04010-00

$3.07

48

JOINT

8ES-14454-00-00

$13.91

49

HOSE

8ES-14987-00-00

$11.38

50

. CLIP

4TV-12486-00-00

$3.85

51

SCREW, THROTTLE STOP

8ES-14121-00-00

$8.09

52

SPRING, THROTTLE STOP

4YR-14934-00-00

$3.17

53

HEATER ASSY

5FU-83790-20-00

$42.63

54

TERMINAL 1

8FA-82103-00-00

$7.32

55

WIRE, SUB LEAD

8ES-81517-01-00

$33.14

56

COLLAR

4TV-14534-00-00

$17.69

57

WASHER(JF2)

92907-04600-00

$1.23
