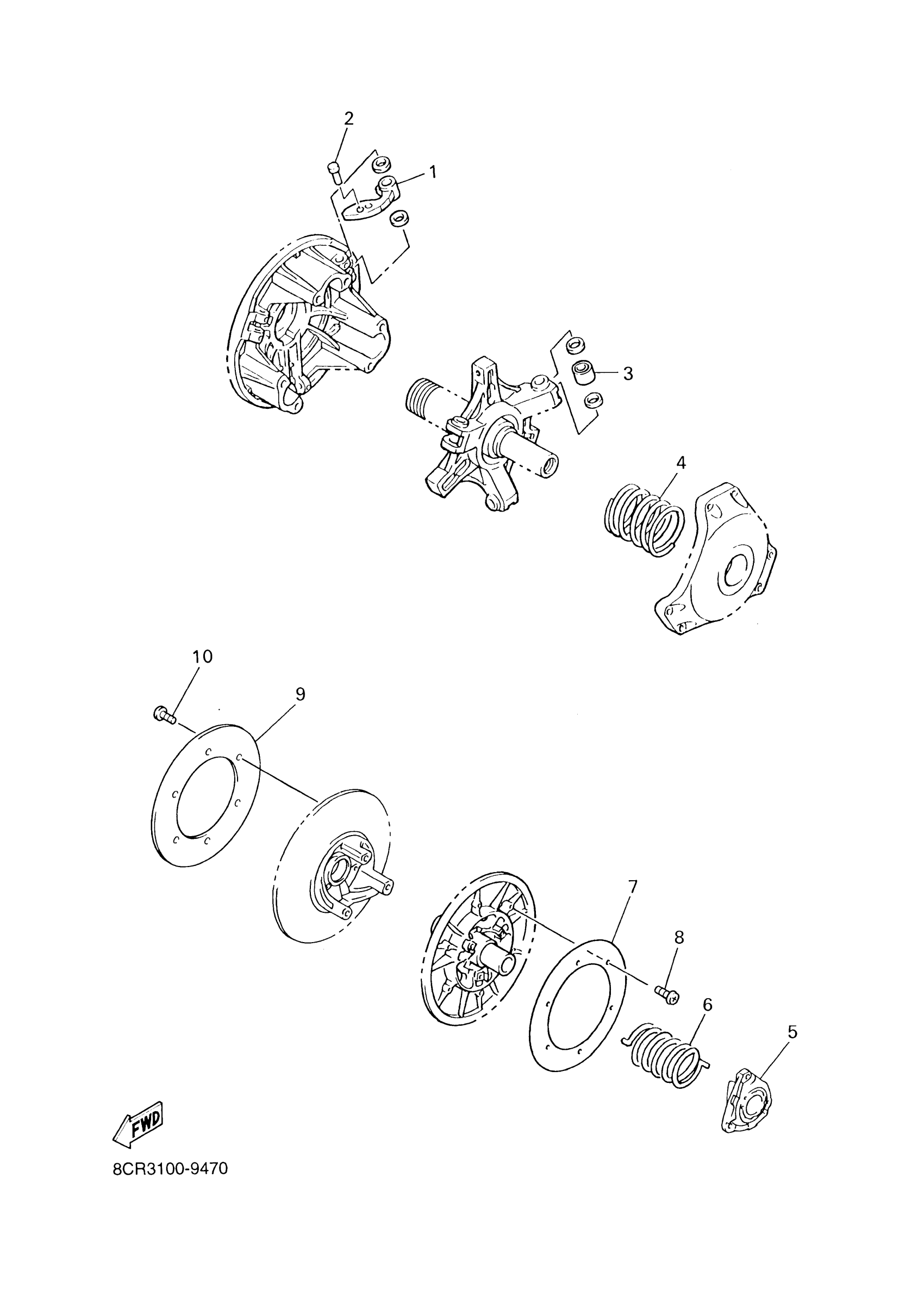

Yamaha RST90YS (RS VENTURE) 8ET9 2009 ALTERNATE DRIVE SETTING 1 Diagram

#

Description
Price

1

WEIGHT COMP

8BU-17605-20-00

$81.71

1

WEIGHT COMP

8CH-17605-10-00

$75.52

1

WEIGHT COMP

8DG-17605-00-00

$92.82

1

WEIGHT COMP

8DJ-17605-00-00

$113.05

1

WEIGHT COMP

8DN-17605-10-00

$99.28

1

WEIGHT COMP

8ES-17605-00-00

$83.08

1

WEIGHT COMP

8FA-17605-10-00

$98.94

2

RIVET. COUNTERSUNK HEAD(8AK)

90261-06015-00

$7.55

2

RIVET, COUNTERSUNK HEAD (8K8)

90261-06019-00

$6.82

2

RIVET, COUNTERSUNK HEAD(88R)

90261-06028-00

$2.72

2

RIVET, COUNTERSUNK (8AB1)

90261-06033-00

$6.78

2

RIVET, COUNTERSUNK HEAD(8AB)

90261-06034-00

$5.62

2

RIVET (AL13.3)

90266-06001-00

$2.37

2

RIVET

90266-06002-00

$3.20

2

RIVET

90269-06006-00

$7.14

3

ROLLER, COMP

8FG-17624-00-00

$90.28

3

ROLLER, COMP

8FG-17624-10-00

$97.37

3

ROLLER, COMP

8FG-17624-20-00

$98.94

3

ROLLER, COMP

8FG-17624-30-00

$58.91

3

ROLLER, COMP

8FG-17624-40-00

$58.91

4

SPRING, COMPRESSION

90501-551L3-00

$39.48

4

SPRING, COMPRESSIO

90501-570A0-00

$37.46

4

SPRING, COMPRESSION

90501-552L5-00

$37.25

4

SPRING, COMPRESSION

90501-581L5-00

$28.18

4

SPRING, COMPRESSION

90501-581L6-00

$39.48

4

SPRING, COMPRESSION

90501-582L1-00

$39.37

4

SPRING, COMPRESSION

90501-582L2-00

$29.09

4

SPRING, COMPRESSION

90501-582L6-00

$36.72

4

SPRING, COMPRESSION

90501-582L7-00

$38.80

4

SPRING, COMPRESSION

90501-583L0-00

$41.86

4

SPRING, COMPRESSION

90501-583L1-00

$42.37

4

SPRING, COMPRESSION

90501-583L4-00

$50.22

4

SPRING, COMPRESSION

90501-583L5-00

$30.46

4

SPRING, COMPRESSION

90501-601L7-00

$40.11

4

SPRING, COMPRESSION

90501-601L8-00

$39.58

4

SPRING, COMPRESSION

90501-602L3-00

$30.80

4

SPRING, COMPRESSION

90501-602L8-00

$36.68

4

SPRING, COMPRESSION

90501-602L9-00

$31.58

4

SPRING, COMPRESSION

90501-603L2-00

$39.80

4

SPRING, COMPRESSION

90501-603L3-00

$39.74

4

SPRING, COMPRESSION

90501-624L8-00

$47.43

5

SEAT SPRING SET

8BV-17604-11-00

$157.17

5

SEAT SPRING SET

8BV-17604-31-00

$158.42

5

SEAT SPRING SET

8BV-17604-51-00

$158.42

5

SEAT SPRING SET

8BV-17604-71-00

$228.66

5

SEAT SPRING SET

8BV-17604-91-00

$227.38

5

SEAT SPRING SET

8FA-17604-00-00

$157.17

6

SPRING, TORSION(8BF)

90508-500B1-00

$34.34

6

SPRING, TORSION(8AB)

90508-536A9-00

$33.48

6

SPRING, TORSION(8BN)

90508-556A2-00

$40.38

6

SPRING, TORSION(8BT)

90508-556A7-00

$52.77

6

SPRING, TORSION

90508-60007-00

$44.65

6

SPRING, TORSION

90508-60012-00

$41.64

7

PLATE 1

8CM-17665-00-00

$36.28

8

GASKET, EXHAUST

98507-05008-00

$2.69

9

PLATE 2

8CM-17675-00-00

$36.28

10

GASKET, EXHAUST

98507-05008-00

$2.69
