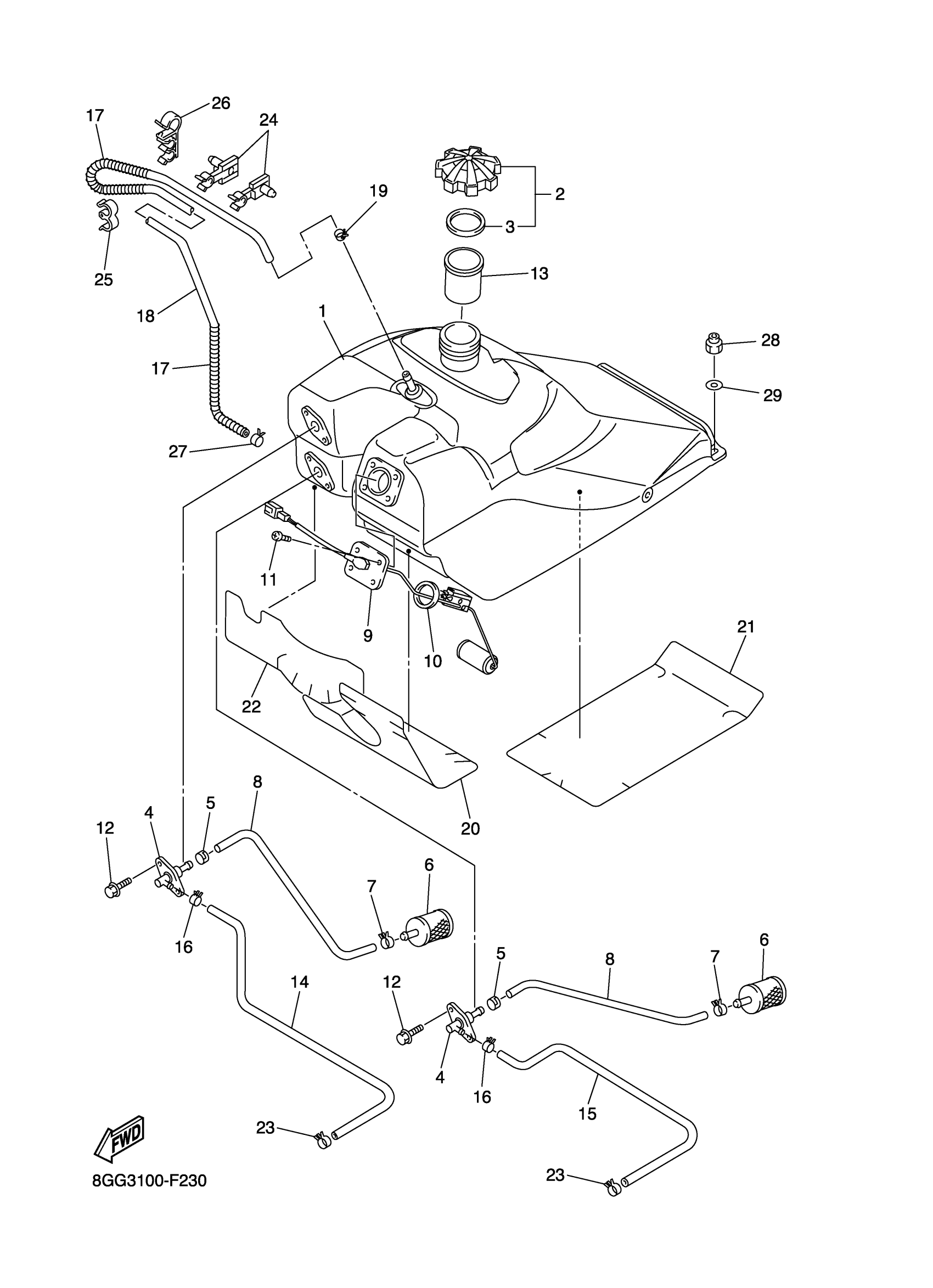

Yamaha RST90XR (RS VENTURE) 8ET7 2008 FUEL TANK Diagram
#
Description
Price
1
TANK, FUEL
8FJ-24111-10-00
Unavailable
2
CAP ASSY
8FG-24610-01-00
$40.99
3
GASKET, CAP 1
8HV-24641-00-00
Unavailable
4
SUCTION PIPE COMP. 1
8CR-24301-01-00
Unavailable
5
CLIP
90468-04092-00
Unavailable
6
FILTER ASSY
8H5-24560-00-00
Unavailable
7
CLIP (7K7)
90467-11044-00
$8.49
8
PIPE, SUCTION 1
8FA-24335-01-00
Unavailable
9
SENDER UNIT ASSY, FUEL METER
8FG-85752-02-00
$126.99
10
O-RING (102)
93210-41041-00
$7.49
11
SCREW, BIND
98902-05008-00
$1.70
12
BOLT, FLANGE
95817-06016-00
$2.75
13
TUBE, FILLER
8FG-24114-00-00
Unavailable
14
PIPE, FUEL 1
8ET-24311-00-00
Unavailable
15
PIPE, FUEL 1
8ET-24311-10-00
Unavailable
16
CLIP (7K7)
90467-11044-00
$8.49
17
SPRING, COMPRESSION (10L)
90501-08668-00
Unavailable
18
TUBE, FLEXIBLE VINYL(8AT)
91A20-05145-00
Unavailable
19
CLIP (8A1)
90467-09026-00
Unavailable
20
PROTECTOR, FUEL TANK
8FA-24141-00-00
Unavailable
21
PROTECTOR, FUEL TANK
8FA-24141-10-00
Unavailable
22
INSULATOR, FUEL TANK 1
8FA-2416F-00-00
Unavailable
23
CLIP (7K7)
90467-11044-00
$8.49
24
CLAMP
90464-09015-00
Unavailable
25
CLAMP(4HM)
90464-13194-00
Unavailable
26
CLAMP
90464-16010-00
Unavailable
27
CLIP (8A1)
90467-09026-00
Unavailable
28
NUT, NYLON
95717-08300-00
Unavailable
29
WASHER, PLATE
90201-08053-00
Unavailable
