Description

Price

1

SKI 1

8ES-23711-00-BK

$138.99

2

BLACK 8DM HANDLE PLASTIC

8DM-23712-00-BK

Unavailable

3

SKI RUNNER KIT

SMA-F3731-EK-00

Unavailable

4

BUSH, SKI 1

8EK-F3751-00-00

Unavailable

5

BOLT, HEXAGON

97017-08055-00

$9.49

6

BOLT, HEXAGON

97027-08100-00

$5.60

7

WASHER, PLATE (3L7)

90201-08784-00

$3.23

8

WASHER, PLATE(3XP)

90201-086P8-00

$4.77

9

NUT, NYLON

95717-08300-00

$2.70

10

. COLLAR 1

8EX-F3754-00-00

Unavailable

11

BOLT, FLANGE

90105-10070-00

$12.49

12

SKI 1

8FM-23711-00-BK

Unavailable

13

BLUE 8DM HANDLE PLASTIC

8DM-23712-00-BU

Unavailable

14

COLLAR, 1

8EX-23754-00-00

Unavailable

15

RUNNER

8EN-23731-00-XX

Unavailable

16

BUSH, SKI 1

8EK-F3751-00-00

Unavailable

17

BOLT, HEXAGON

97017-08055-00

$9.49

18

BOLT, HEXAGON

97027-08100-00

$5.60

19

WASHER, PLATE (3L7)

90201-08784-00

$3.23

20

WASHER, PLATE(3XP)

90201-086P8-00

$4.77

21

NUT, NYLON

95717-08300-00

$2.70

22

BOLT, FLANGE

90105-10410-00

Unavailable

23

COLLAR

90387-10029-00

Unavailable

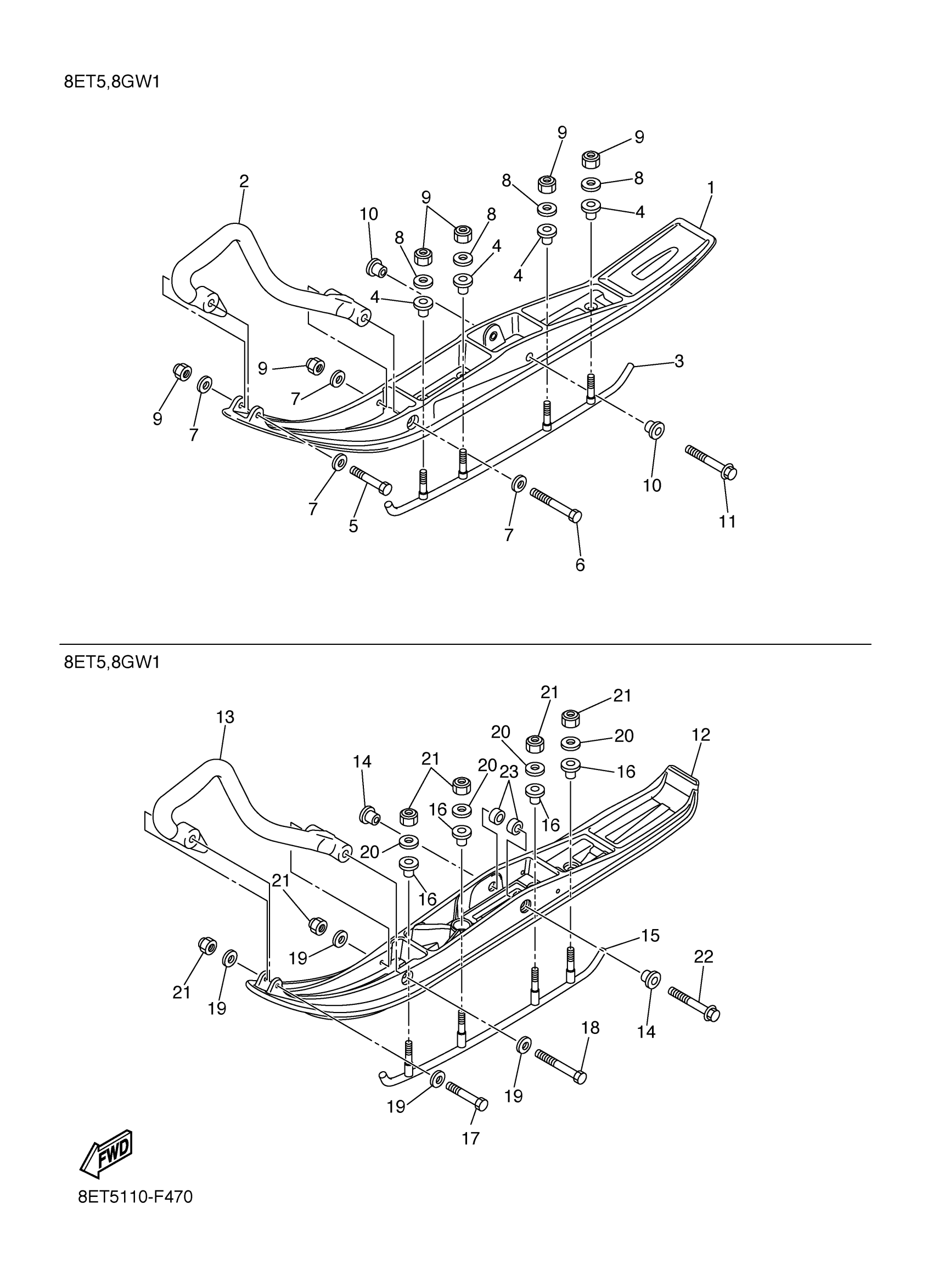

Yamaha RST90W (VENTURE) 8ET5 2007 ALTERNATE SKI Diagram

SKI 1

BLACK 8DM HANDLE PLASTIC

SKI RUNNER KIT

BUSH, SKI 1

BOLT, HEXAGON

BOLT, HEXAGON

WASHER, PLATE (3L7)

WASHER, PLATE(3XP)

NUT, NYLON

. COLLAR 1

BOLT, FLANGE

SKI 1

BLUE 8DM HANDLE PLASTIC

COLLAR, 1

RUNNER

BUSH, SKI 1

BOLT, HEXAGON

BOLT, HEXAGON

WASHER, PLATE (3L7)

WASHER, PLATE(3XP)

NUT, NYLON

BOLT, FLANGE

COLLAR
