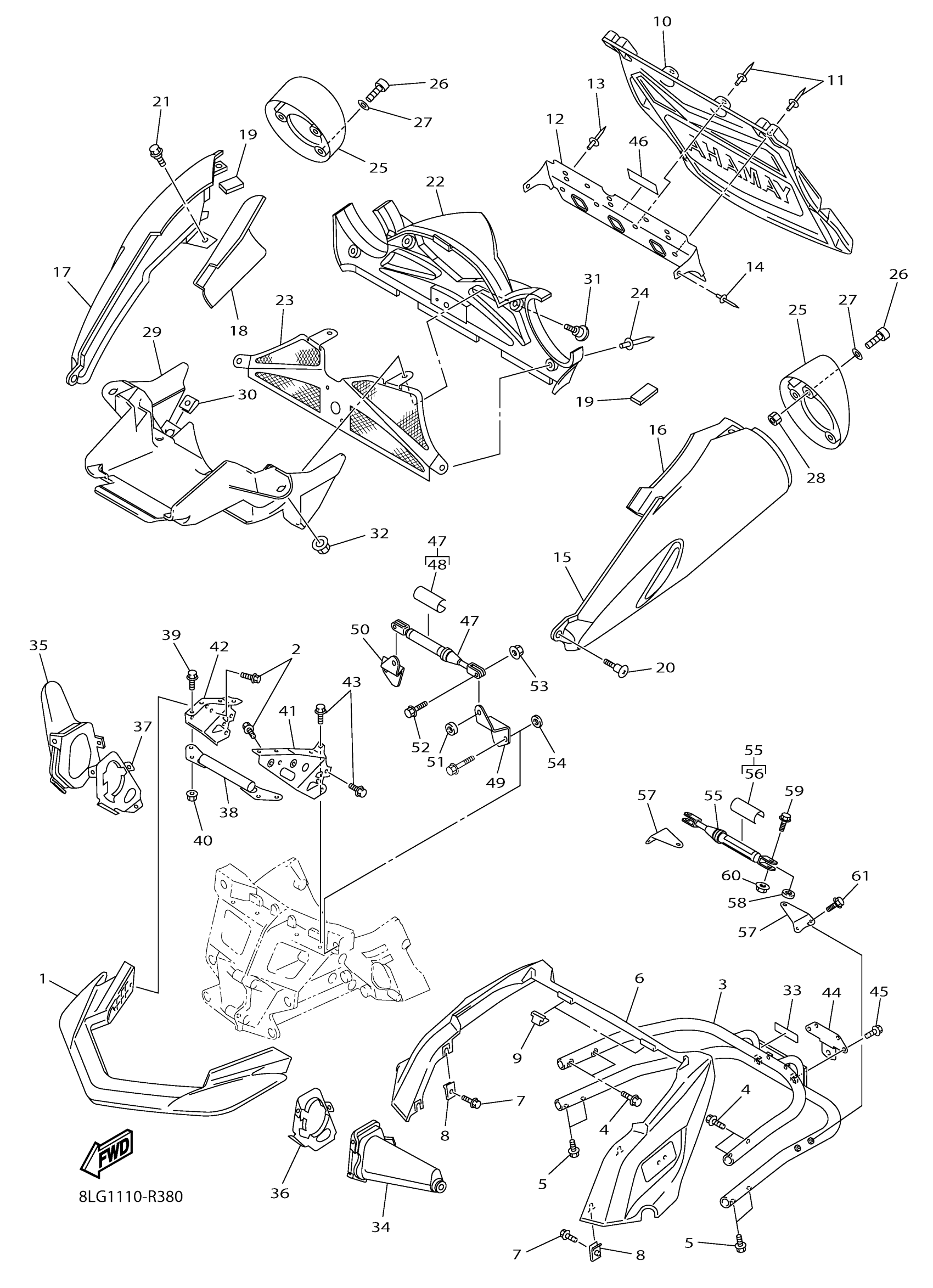

Yamaha RST90TFLHL (RS VENTURE TF LE) 8LG2 2017 BUMPER Diagram
#
1
BUMPER, FRONT 1
8FA-77511-01-00
$250.99
2
BOLT, FLANGE(JN5)
95817-08016-00
$5.49
3
BUMPER, REAR 1
8ET-77541-10-00
Unavailable
4
BOLT, FLANGE(8AB)
95817-08020-00
$9.49
5
BOLT, FLANGE
95814-08016-00
$9.49
6
BUMPER, REAR 2
8FA-77542-00-00
Unavailable
7
BOLT, FLANGE
95817-06016-00
$2.75
8
NUT, SPRING(4ES)
90183-06069-00
Unavailable
9
TAPE 4
8HV-7717H-00-00
$1.49
10
FLAP
8GW-77595-00-00
Unavailable
11
RIVET, BLIND(8CH)
90267-47187-00
$2.34
12
STOPPER, FLAP
8GW-77596-01-00
Unavailable
13
RIVET, BLIND(3JB)
90267-48095-00
$9.49
14
RIVET, BLIND
90267-47195-00
$3.88
15
PROTECTOR 1
8FP-77551-01-P4
Unavailable
16
LINING, SHROUD 1
8HV-77261-00-00
Unavailable
17
PROTECTOR 2
8FP-77552-02-P4
Unavailable
18
LINING, SHROUD 2
8HV-77262-00-00
Unavailable
19
LINING, SHROUD 3
8HV-77263-00-00
Unavailable
20
SCREW, BINDING
90154-06009-00
Unavailable
21
BOLT
90109-06220-00
Unavailable
22
COVER, TAILLIGHT
8FP-84516-01-00
Unavailable
23
LOUVER 1
8FP-77441-00-00
Unavailable
24
RIVET, BLIND(8CH)
90267-47187-00
$2.34
25
CAP
8FP-77517-00-00
Unavailable
26
BOLT,SOCKET HEAD
91314-06020-00
Unavailable
27
YBS66-6 WASHER, PLAIN
92990-06200-00
Unavailable
28
NUT, HEXAGON
95380-06600-00
Unavailable
29
BRACKET, TAILLIGHT
8FP-2117E-01-00
Unavailable
30
NUT, SPRING(4ES)
90183-06069-00
Unavailable
31
BOLT
90109-06220-00
Unavailable
32
NUT, U FLANGE
95604-06200-00
Unavailable
33
LABEL, PULLING LOAD LIMIT
8GS-2817S-E0-00
Unavailable
34
COVER 1
8FU-2198F-01-00
Unavailable
35
COVER 3
8FU-2198J-01-00
Unavailable
36
PLATE, STRG BRACKET 1
8FU-2195E-01-00
Unavailable
37
PLATE, STRG BRACKET 2
8FU-2195F-01-00
Unavailable
38
BRKT. ,FR. FOOD
8FP-21979-00-00
Unavailable
39
BOLT, FLANGE
95817-06014-00
Unavailable
40
NUT, FLANGE
95702-06500-00
Unavailable
41
BRACKET, FRONT
8FA-21949-00-00
Unavailable
42
BRACKET, FRONT BUMPER
8FA-21959-00-00
Unavailable
43
BOLT, FLANGE
95814-08016-00
$9.49
44
BRACKET, HITCH 2
84R-77592-00-00
Unavailable
45
BOLT, FLANGE(8AB)
95817-08020-00
$9.49
46
LABEL, WARNING 5
8JT-77765-E0-00
Unavailable
47
DAMPER BRACE SUB-ASSY.
K7R-2110K-00-00
Unavailable
48
LABEL, WARNING
K7R-22259-00-00
Unavailable
49
BRACKET 1
8JU-2194X-00-00
Unavailable
50
BRACKET 2
8JU-2195X-00-00
Unavailable
51
COLLAR
90387-10110-00
Unavailable
52
BOLT, FLANGE
95817-10035-00
Unavailable
53
NUT, SELF-LOCKING(JN5)
95607-10200-00
Unavailable
54
WASHER, PLATE(6TC)
90201-10M05-00
Unavailable
55
DAMPER BRACE SUB-ASSY.
K7R-2110K-00-00
Unavailable
56
LABEL, WARNING
K7R-22259-00-00
Unavailable
57
BRACKET, FRONT
8JV-77531-00-00
Unavailable
58
COLLAR
90387-10110-00
Unavailable
59
BOLT, FLANGE
95817-10035-00
Unavailable
60
NUT, SELF-LOCKING(JN5)
95607-10200-00
Unavailable
61
BOLT, FLANGE(8AB)
95817-08020-00
$9.49
