- RST90PTFER (RS VENTURE TF) 8HY50 2014
TRACK SUSPENSION 3

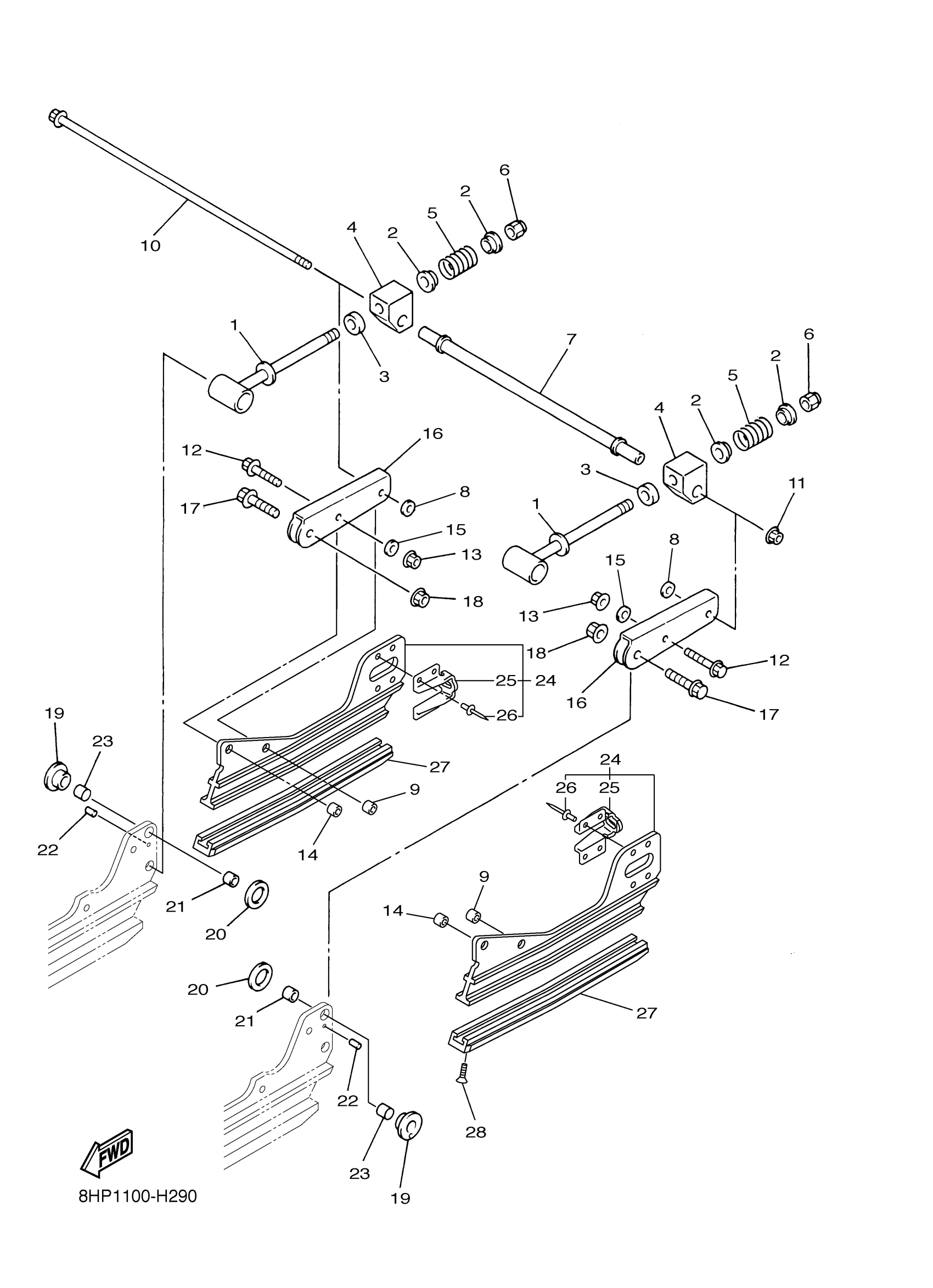

Yamaha RST90PTFER (RS VENTURE TF) 8HY50 2014 TRACK SUSPENSION 3 Diagram
#
Description
Price
1
SHAFT, PIVOT
83R-47337-00-00
Unavailable
2
SEAT, SPRING 1
83R-23768-00-00
$5.49
3
SPRING
83R-47335-00-00
Unavailable
4
HOOK 1
83R-47446-00-00
$25.99
5
SPRING, COMPRESSION(83R)
90501-407E4-00
$10.49
6
NUT, NYLON
95717-12300-00
$7.49
7
COLLAR 2
8FM-47478-00-00
Unavailable
8
WASHER (1T1)
90201-08649-00
$9.49
9
COLLAR(3BN)
90387-082J1-00
$3.35
10
BOLT, FLANGE
90105-08069-00
Unavailable
11
NUT, SELF-LOCKING
90185-08169-00
$8.49
12
BOLT, FLANGE
95817-08035-00
$9.49
13
NUT, SELF-LOCKING
95602-08200-00
$3.20
14
COLLAR(3BN)
90387-082J1-00
$3.35
15
WASHER (1T1)
90201-08649-00
$9.49
16
ARM, PIVOT 3
8FM-47333-00-00
Unavailable
17
BOLT, FLANGE
95817-10030-00
Unavailable
18
NUT, SELF-LOCKING (8U7)
90185-10115-00
Unavailable
19
COLLAR
90387-1815A-00
Unavailable
20
WASHER, PLATE
90202-22238-00
Unavailable
21
COLLAR
90387-1014Y-00
Unavailable
22
PIN. SPRING(656)
91690-30008-00
Unavailable
23
BUSH, SOLID (22W)
90380-16109-00
Unavailable
24
FRAME, SLIDING
8FM-W4741-10-00
Unavailable
25
BRACKET
8DM-4741B-00-00
Unavailable
26
RIVET
8V0-47468-00-00
Unavailable
27
RUNNER,SLIDING 4
8FM-47424-00-XX
Unavailable
28
SCREW, CROSSRECESS (8G6)
90151-06005-00
Unavailable
