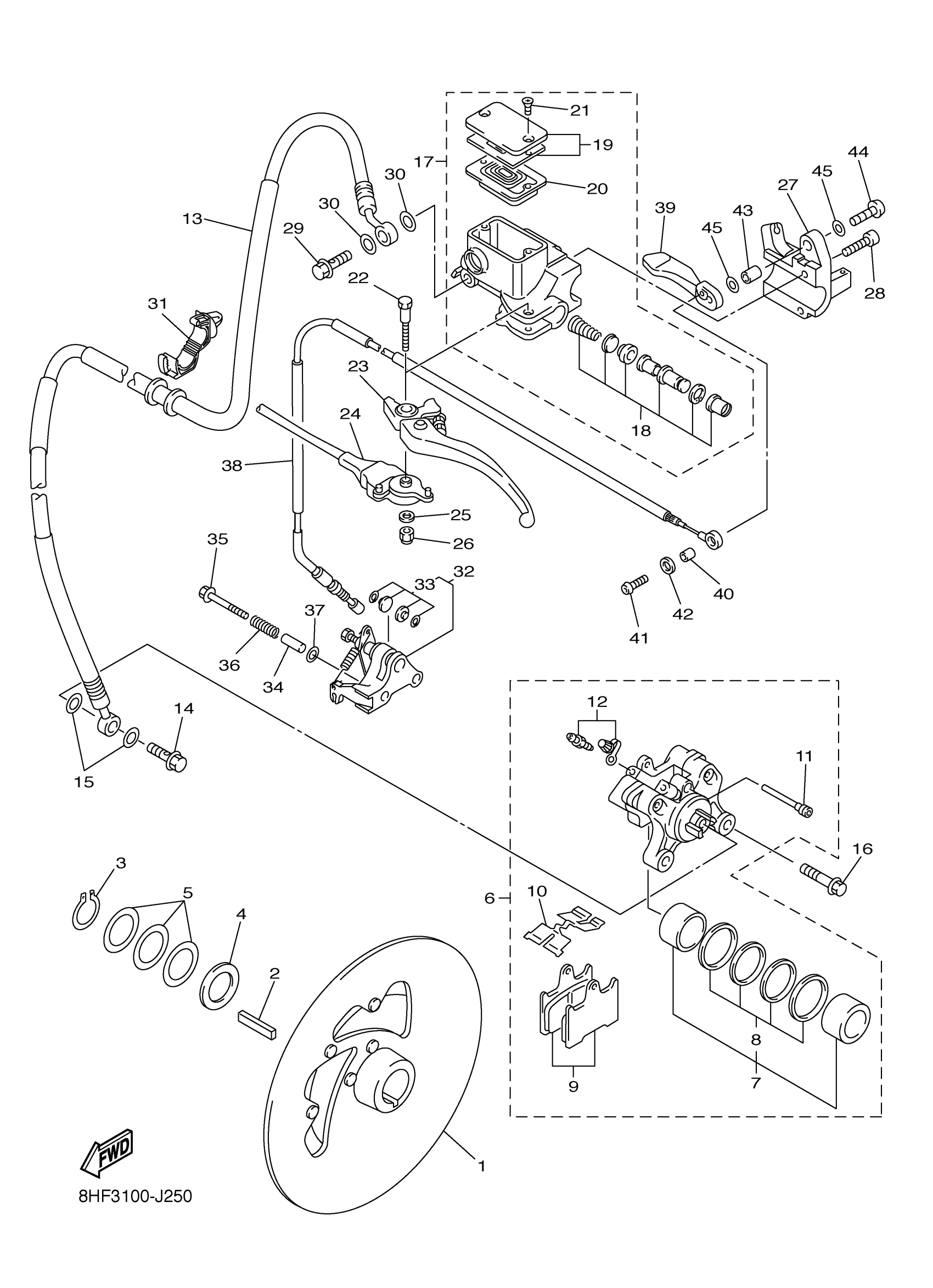

Yamaha RST90PTFER (RS VENTURE TF) 8HY50 2014 BRAKE Diagram

#

Description
Price

1

DISC BRAKE ASSY

8FA-2581T-00-00

Unavailable

2

KEY, SLIDING(88K)

90281-07004-00

$13.99

3

CIRCLIP

99009-24400-00

$8.49

4

WASHER, PLATE (888)

90201-25527-00

$10.49

5

WASHER, PLATE (8R6)

90201-252F1-00

$8.49

6

CALIPER ASSY (LEFT)

8FA-2580T-01-00

Unavailable

7

PISTON ASSY, CALIPER

8CR-W0057-00-00

Unavailable

8

CALIPER SEAL KIT

8CR-W0047-00-00

$21.99

9

BRAKE PAD KIT 2

8FA-W0046-01-00

$70.99

10

SUPPORT, PAD

8DJ-25919-00-00

$20.99

11

PIN, PAD

8CR-25924-00-00

$14.49

12

BLEED SCREW KIT

8CR-W0048-00-00

$13.49

13

HOSE, BRAKE 1

8HF-25872-10-00

$78.99

14

BOLT, UNION

90401-10015-00

$11.49

15

WASHER, PLATE(481)

90201-10118-00

Unavailable

16

BOLT, WASHER BASED(1AR)

90105-10634-00

Unavailable

17

MASTER CYLINDER SUB ASSY

8FA-W2587-00-00

Unavailable

18

CYLINDER KIT, MASTER

8CR-W0041-00-00

Unavailable

19

RESERVOIR CAP SET

8CR-W2585-00-00

Unavailable

20

DIAPHRAGM, RESERVOIR

55U-25854-00-00

Unavailable

21

SCREW, FLAT

98707-04012-00

Unavailable

22

BOLT, LEVER

8CR-2589F-00-00

Unavailable

23

LEVER 1

8CR-83912-00-00

Unavailable

23

LEVER 1

8DN-83912-00-00

Unavailable

24

STOP SWITCH ASSY

8FP-82530-00-00

Unavailable

25

WASHER, PLAIN

8CR-8398X-00-00

Unavailable

26

NUT, NYLON

95707-05300-00

Unavailable

27

BRACKET, MASTER CYLINDER

8FA-25867-00-00

Unavailable

28

BOLT,SOCKET

91317-06025-00

Unavailable

29

BOLT, UNION

90401-10015-00

$11.49

30

WASHER, PLATE(481)

90201-10118-00

Unavailable

31

CLAMP

90464-14012-00

Unavailable

32

PARKING BRAKE COMP.

8FA-25970-01-00

Unavailable

33

PARKING BRAKE PAD KIT

8FA-W0045-00-00

Unavailable

34

COLLAR

90387-06058-00

Unavailable

35

BOLT

90111-06042-00

Unavailable

36

SPRING, COMPRESSION

90501-120A0-00

Unavailable

37

WASHER 6474553400

90201-12161-00

Unavailable

38

CABLE, BRAKE

8HF-26351-00-00

Unavailable

39

LEVER 2

8FA-83922-00-00

Unavailable

40

COLLAR

90387-06043-00

Unavailable

41

BOLT, BUTTON HEAD

92012-06014-00

Unavailable

42

WASHER, PLATE

90201-06089-00

Unavailable

43

COLLAR

90387-081M9-00

Unavailable

44

BOLT,HEX. SOCKET BUTTON

90111-08054-00

Unavailable

45

WASHER PLATE 141181390000

90201-08085-00

Unavailable
