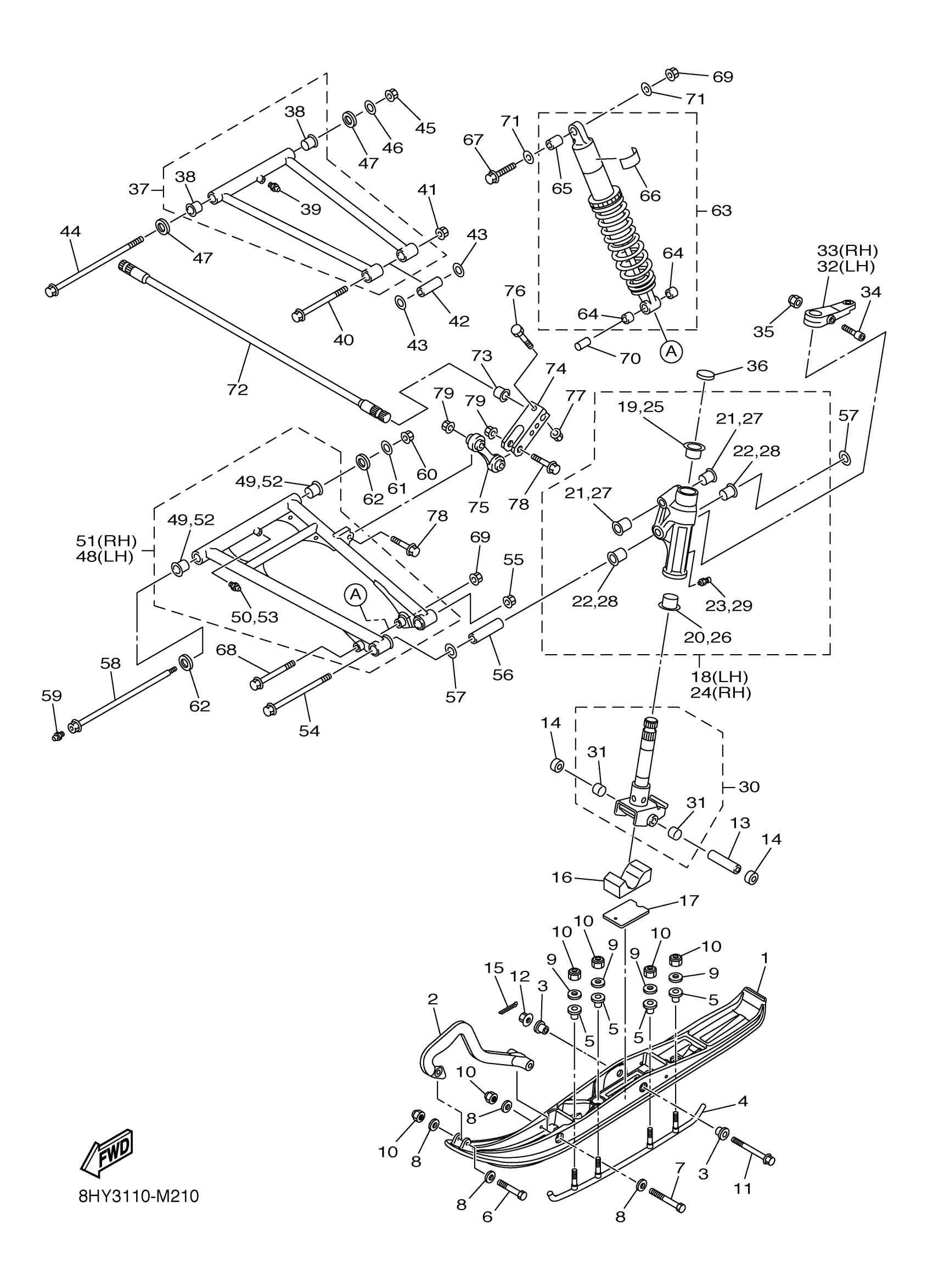

Yamaha RST90PTFDL (RS VENTURE TF) 8HY30 2013 SKI Diagram
#
1
SKI 1
8FN-F3711-00-00
Unavailable
2
BLACK 8DM HANDLE PLASTIC
8DM-23712-00-BK
Unavailable
3
. COLLAR 1
8EX-F3754-00-00
Unavailable
4
RUNNER
8EN-23731-00-XX
Unavailable
5
BUSH, SKI 1
8EK-F3751-00-00
Unavailable
6
BOLT, HEXAGON
97017-08055-00
$9.49
7
BOLT, HEXAGON
97027-08100-00
$5.60
8
WASHER, PLATE (3L7)
90201-08784-00
$3.23
9
WASHER 2
8HG-F3738-00-00
Unavailable
10
NUT, NYLON
95717-08300-00
$2.70
11
BOLT, FLANGE
90105-10410-00
$14.99
12
NUT, S/L FLANGE
95602-10200-00
$4.82
13
COLLAR
90387-1012H-00
$24.99
14
COLLAR
90387-10029-00
Unavailable
15
PIN, COTTER
91490-20025-00
$1.99
16
STOPPER 1
8HG-23743-00-00
Unavailable
17
STOPPER 2
8FM-23744-00-00
Unavailable
18
STEERING KNUCKLE ASSY (LEFT)
8HG-23501-00-00
Unavailable
19
BUSH, SOLID
90381-25115-00
Unavailable
20
BUSH, SOLID
90381-32001-00
Unavailable
21
BUSH, SOLID
90381-15N50-00
Unavailable
22
BUSH, SOLID
90381-18N51-00
Unavailable
23
NIPPLE, GREASE
93700-06M03-00
Unavailable
24
STEERING KNUCKLE ASSY (RIGHT)
8HG-23502-00-00
Unavailable
25
BUSH, SOLID
90381-25115-00
Unavailable
26
BUSH, SOLID
90381-32001-00
Unavailable
27
BUSH, SOLID
90381-15N50-00
Unavailable
28
BUSH, SOLID
90381-18N51-00
Unavailable
29
NIPPLE, GREASE
93700-06M03-00
Unavailable
30
COLUMN, SKI ASSY
8HG-23803-00-00
Unavailable
31
BUSH, BIMETAL FORMED
90384-16N51-00
Unavailable
32
ARM, OUTSIDE 1
8FA-23851-00-00
Unavailable
33
ARM, OUTSIDE 2
8FA-23852-00-00
Unavailable
34
BOLT, HEXAGON SOCKET HEAD
90110-08104-00
Unavailable
35
NUT, SELF-LOCKING
95602-08200-00
Unavailable
36
CAP, CASE
3YK-22472-40-00
Unavailable
37
FRONT UPPER ARM COMP.
8HG-23540-00-00
Unavailable
38
BUSH, SOLID
90381-15N50-00
Unavailable
39
NIPPLE, GREASE
93700-06M03-00
Unavailable
40
BOLT, FLANGE
90105-10230-00
Unavailable
41
NUT, S/L FLANGE
95602-10200-00
$4.82
42
COLLAR
90387-10099-00
Unavailable
43
WASHER, PLATE
90201-10052-00
Unavailable
44
BOLT
90109-10056-00
Unavailable
45
NUT, S/L FLANGE
95602-10200-00
$4.82
46
WASHER, PLATE
90201-10052-00
Unavailable
47
WASHER
90209-15N50-00
Unavailable
48
FRONT LOWER ARM COMP. (LEFT)
8HG-23570-00-00
Unavailable
49
BUSH, SOLID
90381-16N51-00
Unavailable
50
NIPPLE, GREASE
93700-06M03-00
Unavailable
51
FRONT LOWER ARM COMP. (RIGHT)
8HG-23580-00-00
Unavailable
52
BUSH, SOLID
90381-16N51-00
Unavailable
53
NIPPLE, GREASE
93700-06M03-00
Unavailable
54
BOLT, FLANGE
90105-12078-00
Unavailable
55
NUT, SELF-LOCKING
95602-12200-00
Unavailable
56
COLLAR
90387-12054-00
Unavailable
57
WASHER, PLATE(8CJ)
90201-120T5-00
Unavailable
58
BOLT, UNION
90401-10045-00
Unavailable
59
NIPPLE, GREASE
93700-06M03-00
Unavailable
60
NUT, S/L FLANGE
95602-10200-00
$4.82
61
WASHER, PLATE
90201-10052-00
Unavailable
62
WASHER
90209-15N50-00
Unavailable
63
ABSORBER ASSY 1
8HG-2376A-00-00
Unavailable
64
BUSH, BIMETAL FORMED
90384-15N51-00
Unavailable
65
DAMPER, BUSH B
8FA-2331R-00-00
Unavailable
66
LABEL, WARNING
4AA-22259-60-00
Unavailable
67
BOLT, WASHER BASED (4K0)
90105-10169-00
Unavailable
68
BOLT, FLANGE
90105-10288-00
Unavailable
69
NUT, S/L FLANGE
95602-10200-00
$4.82
70
COLLAR
90387-10N59-00
Unavailable
71
WASHER, PLATE
90201-10052-00
Unavailable
72
BAR, STABILIZER FRONT
8FG-2386E-10-00
Unavailable
73
BUSH, STABILIZER FRONT
8FG-2386G-00-00
Unavailable
74
ARM, STABILIZER
8FG-2386L-00-00
Unavailable
75
JOINT, STABILIZER 1
8ES-2385L-00-00
Unavailable
76
BOLT
90101-06046-00
Unavailable
77
NUT, U FLANGE
95604-06200-00
Unavailable
78
BOLT, FLANGE(4FM)
95814-08030-00
Unavailable
79
NUT, U FLANGE(4KG)
95604-08200-00
Unavailable
