Partiron

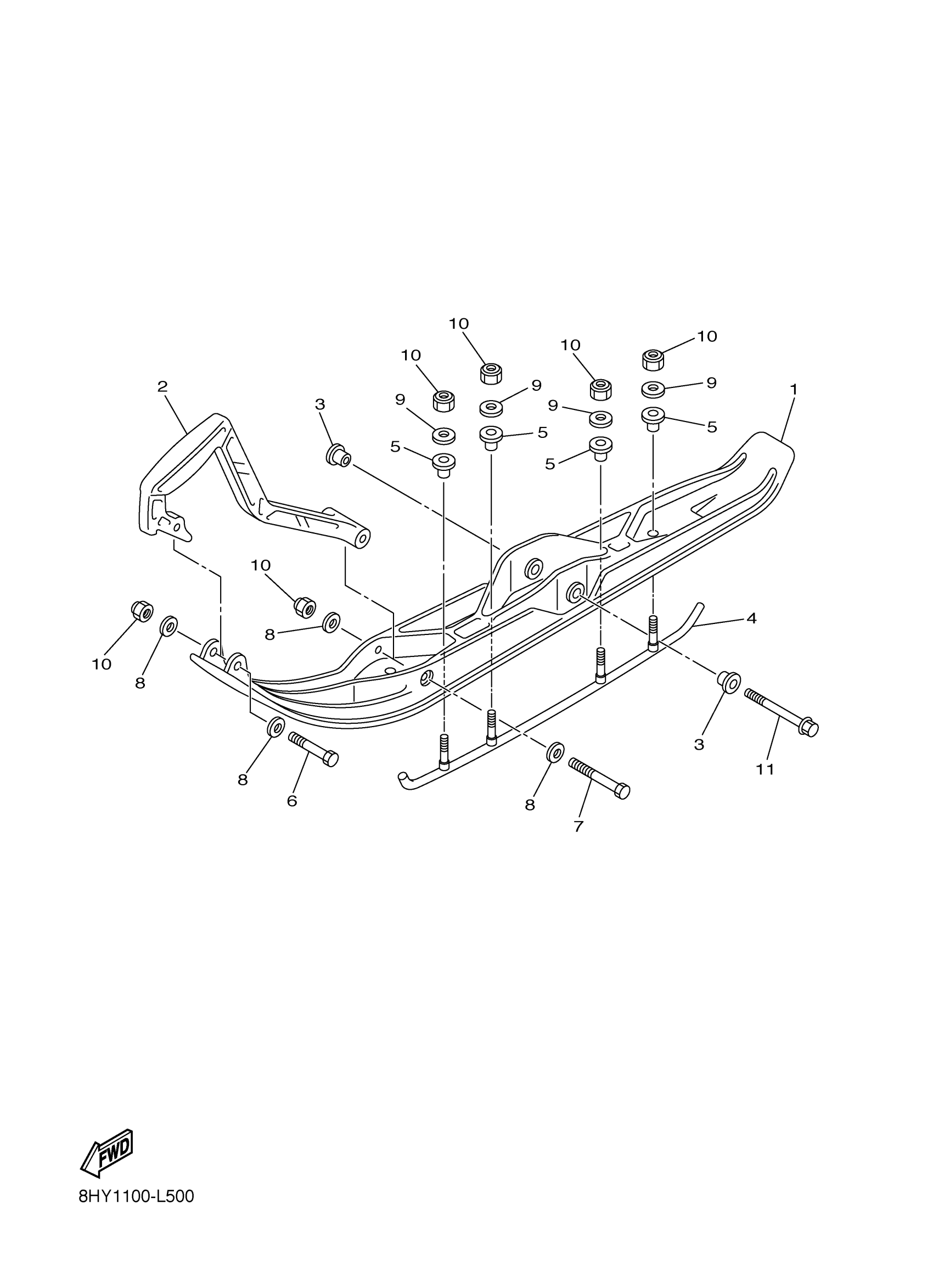

Yamaha RST90PTFDL (RS VENTURE TF) 8HY30 2013 ALTERNATE SKI Diagram

#

Description
Price

1

SKI 1

8HV-F3711-00-00

Unavailable

2

REINFORCEMENT, HEAD

8HG-23712-20-00

Unavailable

3

. COLLAR 1

8EX-F3754-00-00

Unavailable

4

8HG RUNNER (2011 APEX)

SMA-8HG11-00-00

Unavailable

5

BUSH, SKI 1

8EK-F3751-00-00

$5.28

6

BOLT, HEXAGON

97017-08055-00

$6.40

7

BOLT, REINFORCEMENT HEAD 2

8HG-F3756-10-00

Unavailable

8

WASHER, PLATE (3L7)

90201-08784-00

$2.36

9

WASHER 2

8HG-F3738-00-00

Unavailable

10

NUT, NYLON

95717-08300-00

$2.38

11

BOLT, FLANGE

90105-10070-00

$8.84
