- RST90PGTFB (RS VENTURE GT) 8HX8 2015
TRACK SUSPENSION 1

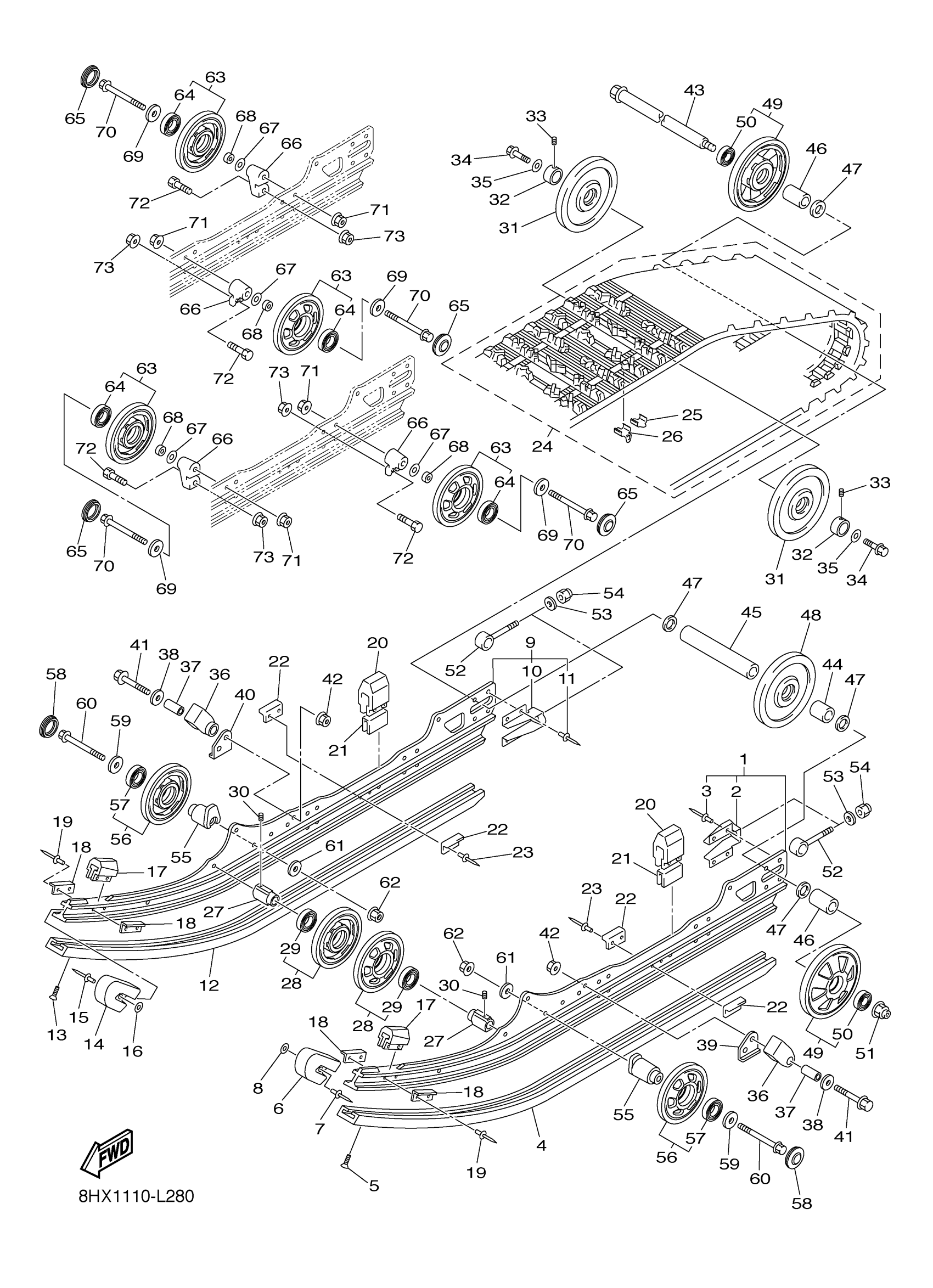

Yamaha RST90PGTFB (RS VENTURE GT) 8HX8 2015 TRACK SUSPENSION 1 Diagram
#
1
FRAME, SLIDING 1
8HX-47411-00-00
$251.99
2
BRACKET
8DM-4741B-00-00
$45.99
3
RIVET
8V0-47468-00-00
$10.49
4
RUNNER, SLIDING 1
8HX-47421-10-00
$304.99
5
SCREW, CROSSRECESS (8G6)
90151-06005-00
$9.49
6
RUNNER, SLIDING 2
8ED-47422-00-00
$46.99
7
RIVET BLIND
90267-48194-00
$3.28
8
WASHER, PLATE(8CM)
90201-047R8-00
$3.02
9
FRAME, SLIDING 2
8HX-47412-00-00
Unavailable
10
BRACKET
8DM-4741B-00-00
$45.99
11
RIVET
8V0-47468-00-00
$10.49
12
RUNNER, SLIDING 1
8HX-47421-10-00
$304.99
13
SCREW, CROSSRECESS (8G6)
90151-06005-00
$9.49
14
RUNNER, SLIDING 2
8ED-47422-00-00
$46.99
15
RIVET BLIND
90267-48194-00
$3.28
16
WASHER, PLATE(8CM)
90201-047R8-00
$3.02
17
DAMPER 1
8ES-47456-00-00
Unavailable
18
PLATE, DAMPER
8K2-47458-01-00
Unavailable
19
RIVET, BLIND
90267-48199-00
Unavailable
20
DAMPER 2
8AC-47457-00-00
Unavailable
21
SPACER
8AC-47341-00-00
Unavailable
22
PLATE, DAMPER
8AX-47458-00-00
Unavailable
23
RIVET, BLIND
90267-48199-00
Unavailable
24
TRACK ASSY
8ET-47110-30-00
Unavailable
25
PLATE, REINFORCEMENT
8HR-47113-09-00
Unavailable
26
METAL, SLIDE
8HR-47115-09-00
Unavailable
27
COLLAR
8ES-47319-01-00
Unavailable
28
WHEEL BLK 130MM
SMA-8FP38-01-BK
Unavailable
29
BRG,R-B 6005 47MM 85G KY
93306-00507-00
Unavailable
30
BOLT, SET (8K2)
90113-06039-00
Unavailable
31
GUIDE WHEEL ASSY
8AC-47550-00-00
Unavailable
32
COLLAR 1
8ES-47365-00-00
Unavailable
33
BOLT, SET (8K2)
90113-06039-00
Unavailable
34
BOLT
90109-10032-00
Unavailable
35
WASHER, PLATE
90201-10039-00
Unavailable
36
HOOK 1
8HF-47446-00-00
Unavailable
37
COLLAR (128-25183-00)
90387-10081-00
Unavailable
38
WASHER, PLATE
90201-10072-00
Unavailable
39
WASHER 1
8HF-47374-00-00
Unavailable
40
WASHER 2
8HF-47375-00-00
Unavailable
41
BOLT, FLANGE(87Y)
95817-10055-00
Unavailable
42
NUT, S/L FLANGE
95602-10200-00
Unavailable
43
REAR AXLE COMP.
8L8-47520-10-00
Unavailable
44
COLLAR
90387-20015-00
Unavailable
45
COLLAR
90387-20016-00
Unavailable
46
COLLAR
90387-20019-00
Unavailable
47
WASHER, PLATE
90201-20022-00
Unavailable
48
GUIDE WHEEL ASSY
8CR-47550-10-00
Unavailable
49
REAR WHEEL BLK 178MM
SMA-8FP38-02-BK
Unavailable
50
BEARING(8AB)
93306-00444-00
Unavailable
51
NUT, U FLANGE
95602-14200-00
Unavailable
52
COLLAR 3
8DM-47479-00-00
Unavailable
53
WASHER, PLATE
92990-10600-00
Unavailable
54
NUT, NYLON
95707-10300-00
Unavailable
55
BRACKET 7
8ES-47419-00-00
Unavailable
56
WHEEL BLK 130MM
SMA-8FP38-01-BK
Unavailable
57
BRG,R-B 6005 47MM 85G KY
93306-00507-00
Unavailable
58
CAP, WHEEL
8HF-47317-00-00
Unavailable
59
WASHER, PLATE
90201-10038-00
Unavailable
60
BOLT, FLANGE
95812-10080-00
Unavailable
61
WASHER, PLATE
90201-10052-00
Unavailable
62
NUT, S/L FLANGE
95602-10200-00
Unavailable
63
WHEEL BLK 130MM
SMA-8FP38-01-BK
Unavailable
64
BRG,R-B 6005 47MM 85G KY
93306-00507-00
Unavailable
65
CAP, WHEEL
8HF-47317-00-00
Unavailable
66
BRACKET 7
8CM-47419-10-00
Unavailable
67
WASHER, PLATE (2Y4)
90201-10714-00
Unavailable
68
COLLAR
90387-10031-00
Unavailable
69
WASHER, PLATE
90201-101U2-00
Unavailable
70
BOLT, FLANGE
90105-10241-00
Unavailable
71
NUT, S/L FLANGE
95602-10200-00
Unavailable
72
BOLT
90101-08063-00
Unavailable
73
NUT, SELF-LOCKING
95602-08200-00
Unavailable
