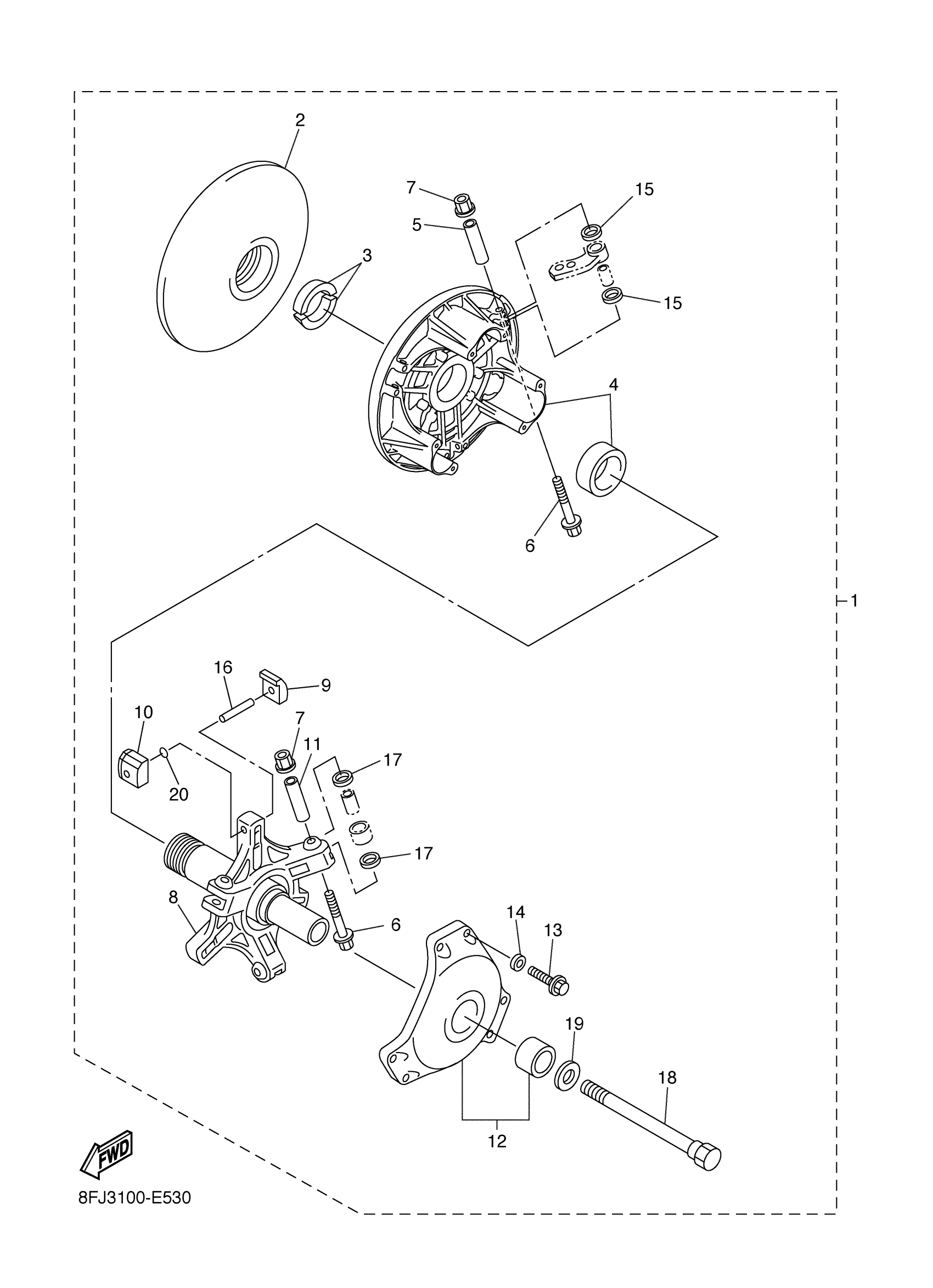

Yamaha RST90PGTFB (RS VENTURE GT) 8HX8 2015 ALTERNATE REBUILD KIT Diagram

CLUTCH REPAIR KIT

8ES-W176G-12-00

$1,103.99

SHEAVE, PRIMARY FIXED

8FA-17611-01-00

$206.99

STOPPER

8V0-17639-00-00

$14.99

PRIMARY SLIDING SHEAVE COMP.

8FP-17620-00-00

$437.99

COLLAR

90387-0514T-00

$16.99

BOLT, WASHER BASED(88R)

90105-05644-00

$2.39

NUT, S/L FLANGE

95607-05200-00

$9.49

SPIDER COMPLETE

8ES-17640-02-00

Unavailable

SLIDER

8BW-17653-00-00

$16.49

SLIDER

8ES-17653-00-00

$25.99

COLLAR

90387-0514U-00

$20.99

PRIMARY SHEAVE CAP COMP.

8DF-17630-00-00

$186.99

BOLT, HEXAGON

97017-06030-00

$3.61

WASHER(6TA)

92907-06600-00

$2.72

WASHER, PLATE(88R)

90202-08204-00

$9.49

PIN, SPRING (7F7)

91609-50032-00

Unavailable

WASHER, PLATE(8BV)

90202-09227-00

Unavailable

BOLT (L=156.5MM)

8V0-17647-10-00

Unavailable

WASHER(JN5)

92907-16100-00

Unavailable

DAMPER, SLIDER

8ES-17655-00-00

Unavailable
