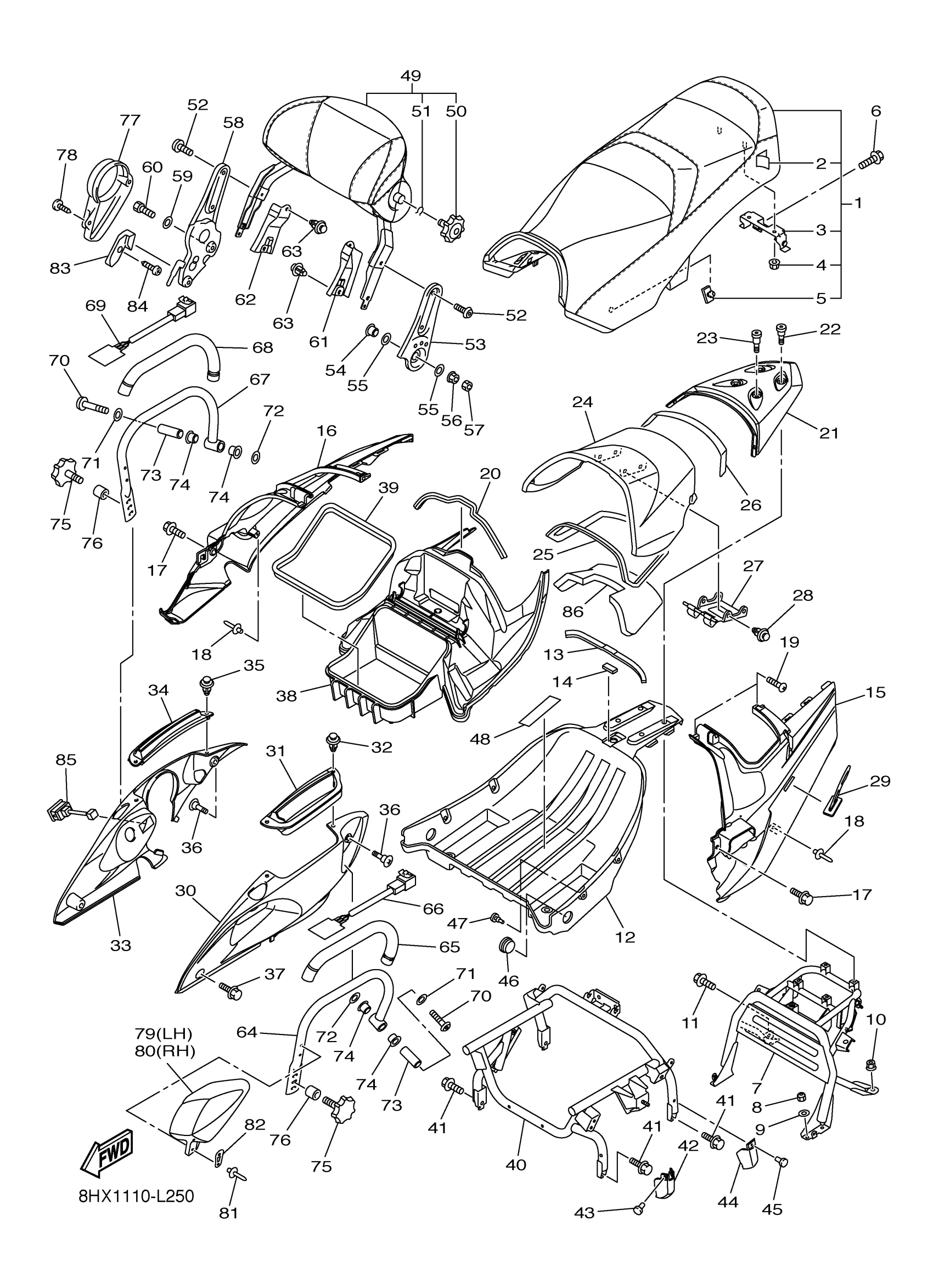

Yamaha RST90PGTER (RS VENTURE GT) 8HX50 2014 SEAT Diagram
#
1
DOUBLE SEAT ASSY
8HX-24730-00-00
Unavailable
2
SEAT COVER COMP.
8HX-2470F-01-00
Unavailable
3
BRACKET, SEAT LEVER 1
8HF-2475H-00-00
Unavailable
4
NUT, U FLANGE
95604-06200-00
$8.49
5
DAMPER, SEAT
509-24724-00-00
$10.99
6
BOLT, FLANGE(8AB)
95817-08020-00
$9.49
7
REINFORCEMENT
8HF-24766-00-00
$299.99
8
NUT, NYLON
95717-08300-00
$2.70
9
WASHER, PLATE
90201-08053-00
$5.60
10
NUT, SELF-LOCKING
95602-08200-00
$3.20
11
BOLT, FLANGE
95822-08014-00
$8.49
12
COVER, TAIL
8ET-24756-01-00
$81.99
13
RUBBER, BUSHING
8HF-25975-00-00
$2.17
14
SEAL
8HF-24858-00-00
Unavailable
15
COVER, TAIL 1
8HF-2471K-00-00
$187.99
16
COVER, TAIL 2
8HF-2472K-00-00
Unavailable
17
BOLT
90109-06220-00
Unavailable
18
RIVET
90269-05006-00
Unavailable
19
SCREW, TRUSS TAP.
97707-50025-00
Unavailable
20
SEAL, SEAT
8HF-78425-00-00
Unavailable
21
COVER, TAIL
8HF-24756-00-P5
Unavailable
22
BOLT
90109-08198-00
Unavailable
23
BOLT
90109-08199-00
Unavailable
24
LID 1
8HF-2473T-00-P5
Unavailable
25
SEAL
8HF-2475M-00-00
Unavailable
26
DAMPER, SEAT
8HF-24723-00-00
Unavailable
27
HINGE, SEAT
8HF-24769-00-00
Unavailable
28
RIVET
90269-08005-00
Unavailable
29
BAND, SEAT
8HF-24734-00-00
Unavailable
30
COVER
8HF-24796-00-00
Unavailable
31
COVER, SEAT
8HF-24731-00-00
Unavailable
32
RIVET
90269-08005-00
Unavailable
33
COVER,2
8HF-2475X-00-00
Unavailable
34
COVER, SEAT
8HF-24731-10-00
Unavailable
35
RIVET
90269-08005-00
Unavailable
36
SCREW, BINDING
90154-06009-00
Unavailable
37
BOLT
90109-06220-00
Unavailable
38
BOX 1
8HF-2473R-00-00
Unavailable
39
SEAL, SEAT 2
8HF-7842A-00-00
Unavailable
40
SEAT BASE, REAR
8HF-2475C-00-00
Unavailable
41
BOLT, FLANGE(8AB)
95817-08020-00
$9.49
42
PROTECTOR,1
8HF-2476U-00-00
Unavailable
43
RIVET(52W)
90269-05049-00
Unavailable
44
PROTECTOR,2
8HF-2476V-00-00
Unavailable
45
RIVET(52W)
90269-05049-00
Unavailable
46
PLUG(MG5)
90338-28239-00
Unavailable
47
PLUG
90338-05008-00
Unavailable
48
EMBLEM
8FM-24897-01-00
Unavailable
49
SEAT BACK ASSY
8HF-24790-01-00
Unavailable
50
KNOB
8DM-24598-01-00
Unavailable
51
CLIP
8DM-24519-00-00
Unavailable
52
BOLT, BUTTON HEAD
92017-10016-00
Unavailable
53
ARM 2
8HF-2477R-00-00
Unavailable
54
COLLAR(4BP)
90387-083Y8-00
Unavailable
55
WASHER, PLATE
90202-12236-00
Unavailable
56
NUT,FLANGE(J10)
95702-08500-00
Unavailable
57
. NUT
95380-08700-00
Unavailable
58
SEAT LEVER ASSY
8DM-24760-00-00
Unavailable
59
WASHER, PLATE
90201-10029-00
Unavailable
60
BOLT
97012-10016-00
Unavailable
61
MOLD, SEAT
8HF-24785-00-00
Unavailable
62
MOLD 2
8HF-2478K-00-00
Unavailable
63
RIVET
90269-08006-00
Unavailable
64
ASSIST, GRIP
8HF-2474A-00-00
Unavailable
65
COVER 1
8HF-2842M-00-00
Unavailable
66
ASSIST GRIP WARMER ASSY 1
8HF-2474B-00-00
Unavailable
67
ASSIST,GRIP 2
8HF-2474W-00-00
Unavailable
68
COVER 1
8HF-2842M-00-00
Unavailable
69
ASSIST GRIP WARMER ASSY 1
8HF-2474B-00-00
Unavailable
70
BOLT, BUTTON HEAD
92017-10080-00
Unavailable
71
WASHER, PLATE (17K)
90201-106F2-00
Unavailable
72
WASHER, PLATE
90201-10043-00
Unavailable
73
COLLAR 802473690000
90387-10090-00
Unavailable
74
BUSH
90386-14002-00
Unavailable
75
BODY, SEAT LOCK
8CW-2479H-00-00
Unavailable
76
DAMPER, SEAT
8CW-24737-00-00
Unavailable
77
COVER,2
8DM-2475X-01-00
Unavailable
78
SCREW, TRUSS TAP.
97707-40012-00
Unavailable
79
GUARD,BRUSH 1
8HF-26141-00-00
Unavailable
80
GUARD, BRUSH 2
8HF-26142-00-00
Unavailable
81
RIVET, BLIND (8M6)
90267-48051-00
Unavailable
82
WASHER, SPECIAL
8HF-24722-00-00
Unavailable
83
LEVER, SEAT
8DM-2477F-00-00
Unavailable
84
SCREW, TAPPING
97702-40008-00
Unavailable
85
SWITCH
8ET-82917-00-00
Unavailable
86
DAMPER, SEAT
8HX-24724-00-00
Unavailable
