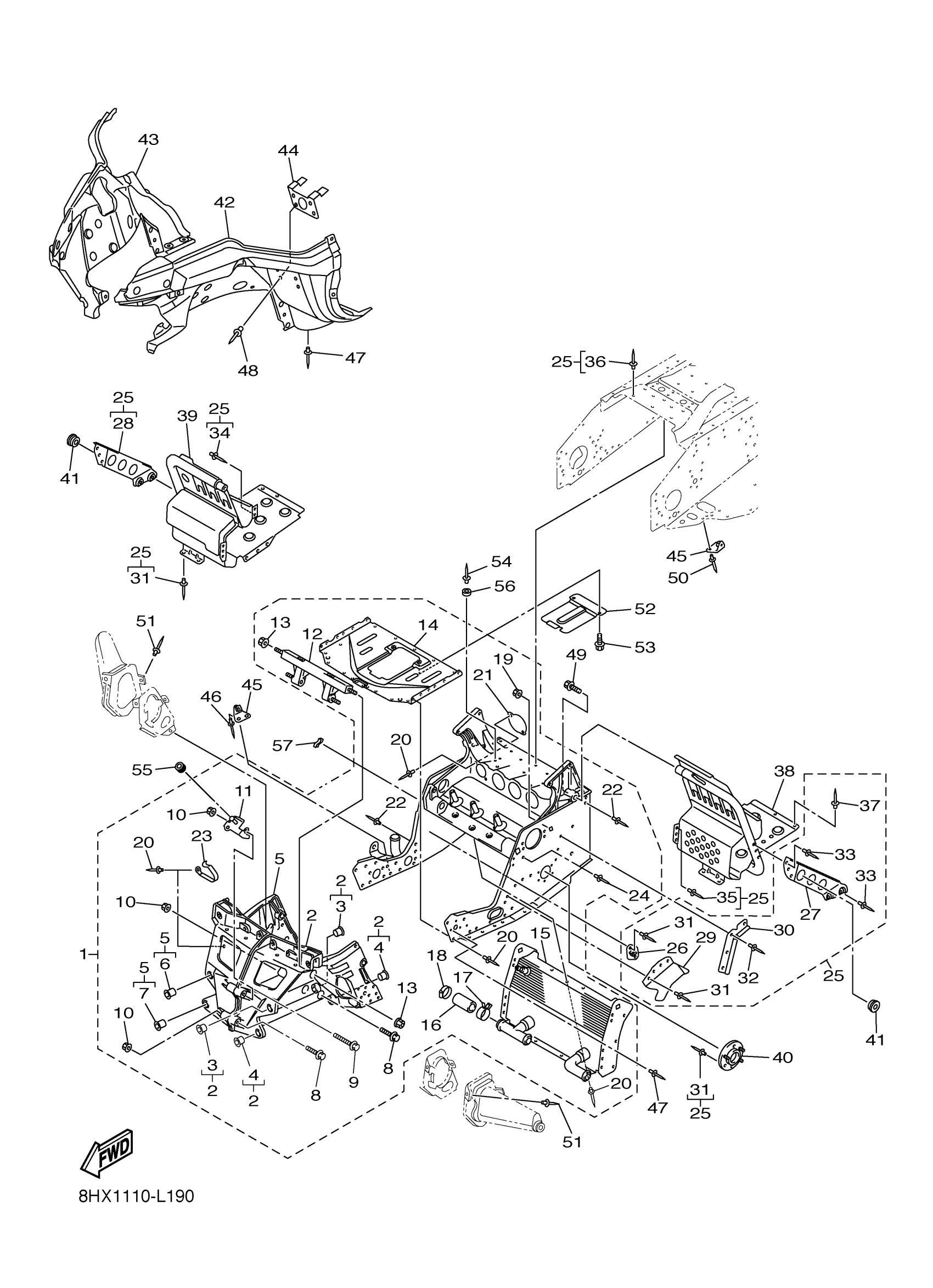

Yamaha RST90PGTDL (RS VENTURE GT) 8HX30 2013 FRAME 1 Diagram
#
1
FRONT FRAME COMP.
8HX-21940-00-00
Unavailable
2
BULKHEAD
8FA-W2197-13-00
$721.99
3
BUSH, SOLID
90381-15001-00
$5.60
4
BUSH, SOLID
90381-16004-00
$16.99
5
BULKHEAD 2
8FA-W2198-20-00
Unavailable
6
BUSH, SOLID
90381-15001-00
$5.60
7
BUSH, SOLID
90381-16004-00
$16.99
8
BOLT, FLANGE
95817-08060-00
$3.76
9
BOLT, WASHER BASED
90105-084A1-00
$10.49
10
NUT, SELF-LOCKING
90185-08169-00
$8.49
11
BRACKET 2
8HG-2836E-00-00
Unavailable
12
BRACKET, STEERING 1
8FG-21947-00-00
$180.99
13
NUT, SELF-LOCKING(JN5)
95607-10200-00
$4.19
14
PROTECTOR
8FR-2193A-01-00
Unavailable
15
HEAT EXCHANGER ASSY
8HF-12440-00-00
$379.99
16
HOSE 7
8FA-12551-00-00
Unavailable
17
CLIP (8M6)
90467-28046-00
Unavailable
18
HOSE CLAMP ASSY
90450-35001-00
Unavailable
19
NUT, SELF-LOCKING
90185-08169-00
$8.49
20
RIVET, BLIND
90267-47195-00
Unavailable
21
PLATE, COVER
8ES-2131D-00-00
Unavailable
22
RIVET, BLIND
90267-48016-00
Unavailable
23
CLAMP
90462-08083-00
Unavailable
24
RIVET, BLIND
90267-48177-00
Unavailable
25
FRAME CONNECTION KIT
8HF-W2195-01-00
Unavailable
26
BRACKET, CHAIN HOUSING
8CR-21939-01-00
Unavailable
27
BRACKET, 5
8FP-2196M-01-00
Unavailable
28
BRACKET, 6
8FP-2197M-01-00
Unavailable
29
COVER 2
8FP-2198G-01-00
Unavailable
30
CLAMP, WIREHARNESS
8FA-21999-00-00
Unavailable
31
RIVET, BLIND
90267-47195-00
Unavailable
32
RIVET, BLIND
90267-48018-00
Unavailable
33
RIVET, BLIND
90267-48177-00
Unavailable
34
RIVET, BLIND(8CR)
90267-47186-00
Unavailable
35
RIVET, BLIND
90267-47197-00
Unavailable
36
RIVET, BLIND(8CR)
90267-47186-00
Unavailable
37
RIVET, BLIND
90267-48023-00
Unavailable
38
FOOTREST COMP. 1
8HF-21960-00-00
Unavailable
39
FOOTREST COMP. 2
8GM-21970-00-00
Unavailable
40
HOUSING, REINF SUB-ASSY(L.H)
8EK-21920-01-00
Unavailable
41
GROMMET(4FU)
90480-13567-00
Unavailable
42
FRAME UNDER 1
8GM-2196A-01-00
Unavailable
43
FRAME, UNDER 2
8FP-2196E-02-00
Unavailable
44
BRACKET, GUARD FITTING
8FP-21972-00-00
Unavailable
45
BRACKET 3
8FA-2196F-00-00
Unavailable
46
RIVET, BLIND (22W)
90267-48083-00
Unavailable
47
RIVET, BLIND
90267-48018-00
Unavailable
48
RIVET, BLIND
90267-47200-00
Unavailable
49
BOLT, FLANGE(8AB)
95817-08020-00
Unavailable
50
RIVET, BLIND(3JB)
90267-48095-00
Unavailable
51
RIVET, BLIND
90267-47195-00
Unavailable
52
PROTECTOR, FRAME FR
8FR-2197E-00-00
Unavailable
53
BOLT, BUTTON HEAD
92012-06012-00
Unavailable
54
RIVET, BLIND (8L0)
90267-48059-00
Unavailable
55
DAMPER, SIDE COVER (437)
90480-12053-00
Unavailable
56
STOPPER
8HG-24768-00-00
Unavailable
57
TAPE 4
8FA-7717H-00-00
Unavailable
