- RST90PGTBR (RS VENTURE GT) 8HX10 2012
TRACK SUSPENSION 2

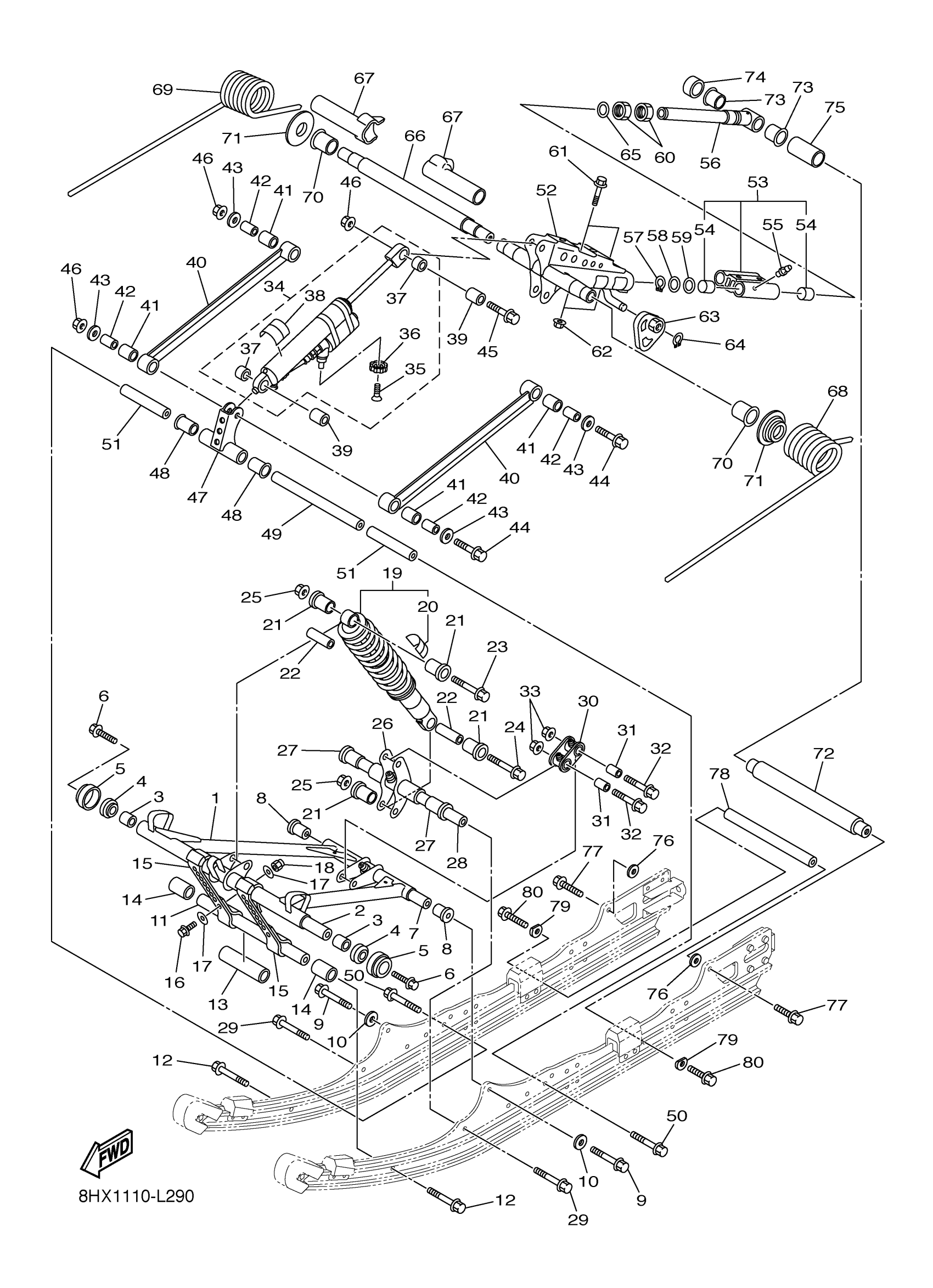

Yamaha RST90PGTBR (RS VENTURE GT) 8HX10 2012 TRACK SUSPENSION 2 Diagram
#
1
ARM, PIVOT 1
8HF-47331-00-00
Unavailable
2
SHAFT 1
8HF-47465-00-00
Unavailable
3
BUSH, FORMED
90383-23002-00
$17.99
4
OIL SEAL(37F)
93108-37011-00
$7.49
5
SPACER
8HF-47341-00-00
$25.99
6
BOLT
90109-10032-00
$8.49
7
SHAFT 4
8ES-47486-00-00
$40.99
8
COLLAR
90387-10022-00
$18.99
9
BOLT, FLANGE
90105-10209-00
$8.49
10
WASHER, PLATE
90201-10071-00
$5.60
11
SHAFT 3
8ES-47485-00-00
$55.99
12
BOLT, FLANGE
90105-10209-00
$8.49
13
COLLAR
90387-19002-00
$7.49
14
COLLAR
90387-19001-00
$8.49
15
STOPPER 1
8HF-47495-00-00
$63.99
16
BOLT, HEXAGON
97017-06025-00
Unavailable
17
WASHER, PLATE
90201-06081-00
Unavailable
18
NUT, NYLON
95707-06300-00
Unavailable
19
SHOCK ABSORBER 2
8HX-47481-00-00
Unavailable
20
LABEL, WARNING
4AA-22259-60-00
Unavailable
21
BUSH, SOLID(8CM)
90381-14101-00
Unavailable
22
COLLAR (8U7)
90387-105G5-00
Unavailable
23
BOLT, FLANGE (8V9)
95812-10045-00
Unavailable
24
BOLT(88R)
90101-10738-00
Unavailable
25
NUT, S/L FLANGE
95602-10200-00
Unavailable
26
BRACKET, ARM PIVOT
8HF-47349-01-00
Unavailable
27
BUSH
90386-20001-00
Unavailable
28
SHAFT 5
8GN-47487-00-00
Unavailable
29
BOLT, FLANGE
90105-10209-00
$8.49
30
BRACKET 2
8FK-47416-01-00
Unavailable
31
COLLAR
90387-10024-00
Unavailable
32
BOLT, FLANGE (8V9)
95812-10045-00
Unavailable
33
NUT, S/L FLANGE
95602-10200-00
Unavailable
34
SHOCK ABSORBER
8HX-47480-00-00
Unavailable
35
SCREW, OVAL HEAD
98680-03008-00
Unavailable
36
. KNOB (COMP)
5EA-22464-00-00
Unavailable
37
BUSH, BIMETAL FORMED(39K)
90384-18190-00
Unavailable
38
LABEL, WARNING
4AA-22259-60-00
Unavailable
39
COLLAR
90387-10023-00
Unavailable
40
ROD, RELAY
8HF-47494-00-00
Unavailable
41
BUSH
90386-16001-00
Unavailable
42
COLLAR (8K4)
90387-101A1-00
Unavailable
43
WASHER, PLATE
90201-10043-00
Unavailable
44
95812-10090
95812-10090-00
Unavailable
45
BOLT, FLANGE
95812-10040-00
Unavailable
46
NUT, S/L FLANGE
95602-10200-00
Unavailable
47
BRACKET, ARM PIVOT
8FK-47349-10-00
Unavailable
48
BUSH
90386-20001-00
Unavailable
49
SHAFT 5
8ES-47487-00-00
Unavailable
50
BOLT, FLANGE
90105-10209-00
$8.49
51
COLLAR
90387-20020-00
Unavailable
52
ARM, PIVOT 2
8HF-47332-00-00
Unavailable
53
STOPPER, CONT. 1
8ES-4745D-00-00
Unavailable
54
BUSH, SOLID
90380-24001-00
Unavailable
55
NIPPLE, GREASE
93700-06M03-00
Unavailable
56
ROD, CONTROL 1
8HF-4745A-00-00
Unavailable
57
CIRCLIP
93410-24092-00
Unavailable
58
WASHER, PLATE
90201-24015-00
Unavailable
59
WASHER, PLATE
90202-25001-00
Unavailable
60
STOPPER, ADJUSTING NUT
8ES-48142-00-00
Unavailable
61
BOLT, FLANGE(87Y)
95817-10055-00
Unavailable
62
NUT, S/L FLANGE
95602-10200-00
Unavailable
63
HOOK 2
8ES-47447-00-00
Unavailable
64
CIRCLIP(13H)
99009-14400-00
Unavailable
65
WASHER, PLATE
90202-25002-00
Unavailable
66
SHAFT 2
8FM-47475-01-00
Unavailable
67
PROTECTOR
8HF-47445-00-00
Unavailable
68
SPRING, REAR 1(K=2200NMM/DEG)
8HF-47473-20-00
Unavailable
69
SPRING, REAR 2(K=2200NMM/DEG)
8HF-47474-20-00
Unavailable
70
BUSH, SOLID(8CJ)
90381-28108-00
Unavailable
71
PLATE, GUIDE
8ES-47467-00-00
Unavailable
72
SHAFT, PIVOT
8HF-47337-00-00
Unavailable
73
BUSH
90386-25001-00
Unavailable
74
COLLAR
90387-26002-00
Unavailable
75
COLLAR
90387-26003-00
Unavailable
76
WASHER, PLATE
90201-10028-00
Unavailable
77
BOLT, FLANGE
95817-10030-00
Unavailable
78
SHAFT 4
8GL-47486-00-00
Unavailable
79
SPACER
8GL-47341-00-00
Unavailable
80
BOLT, FLANGE
95817-10030-00
Unavailable
