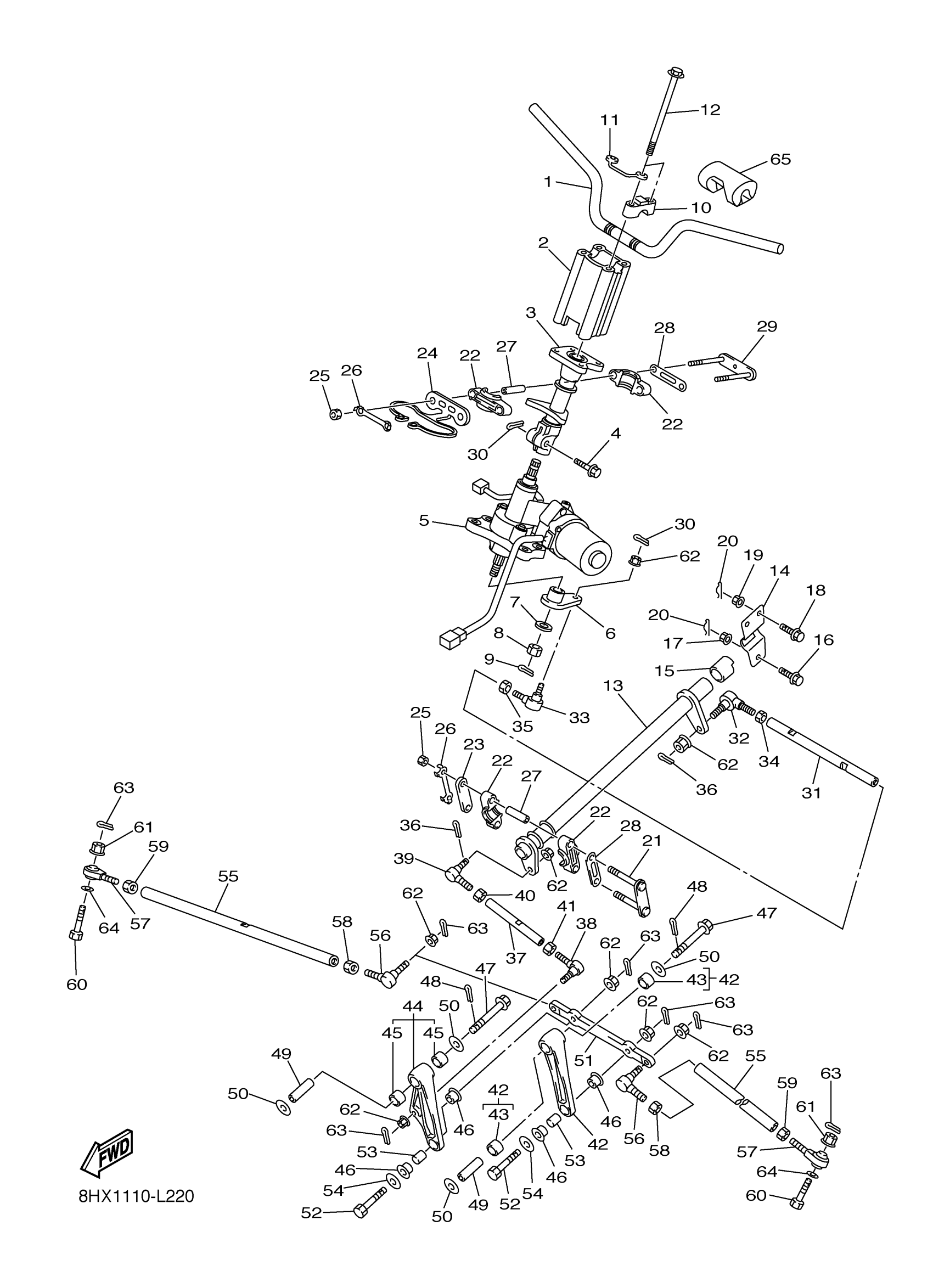

Yamaha RST90PGTBR (RS VENTURE GT) 8HX10 2012 STEERING Diagram
#
1
HANDLEBAR
8HX-26111-00-00
Unavailable
2
JOINT
8HX-2381B-00-00
Unavailable
3
COLUMN, STEERING 2
8HG-23813-01-00
Unavailable
4
BOLT, WITH WASHER
90119-08144-00
Unavailable
5
POWER STRG. ACTUATOR ASSY
3B4-238B0-51-00
Unavailable
6
ARM, PITMAN
8HG-23816-00-00
$49.99
7
WASHER, PLATE
90201-16021-00
$8.49
8
NUT U
95612-16100-00
Unavailable
9
PIN, COTTER
91490-20035-00
$4.77
10
HOLDER, HANDLE UPPER
1E6-23441-00-00
$27.99
11
HOLDER
8FP-23857-00-00
Unavailable
12
BOLT, FLANGE
90105-08072-00
$3.61
13
COLUMN, STEERING
8FA-23811-00-00
Unavailable
14
COVER, STEERING
8FA-23818-02-00
$8.99
15
BEARING, STEERING UPPER
8FA-23873-01-00
$6.99
16
BOLT, WASHER BASED(4KD)
90105-10728-00
Unavailable
17
NUT, S/L FLANGE
95602-10200-00
Unavailable
18
BOLT, WASHER BASED(JA1)
90105-08552-00
Unavailable
19
NUT, SELF-LOCKING
95602-08200-00
Unavailable
20
CLIP 136253750000
90468-12006-00
Unavailable
21
HOLDER, BEARING
8FA-23872-00-00
Unavailable
22
PLANE BEARING, STEERING
8FA-23812-00-00
Unavailable
23
HOLDER 2
8FA-23867-00-00
Unavailable
24
HOLDER, BEARING
8HV-23872-00-00
Unavailable
25
NUT(6L2)
95333-08600-00
Unavailable
26
WASHER, LOCK 1
1UY-23894-01-00
Unavailable
27
COLLAR
8HF-2412G-00-00
Unavailable
28
WASHER, PLAIN
8FA-23843-00-00
Unavailable
29
HOLDER, BEARING
8HG-23872-00-00
Unavailable
30
PIN, COTTER
91490-20025-00
Unavailable
31
ROD, STEERING
8FA-23828-00-00
Unavailable
32
JOINT, UNIVERSAL 3
8CR-23847-00-00
Unavailable
33
JOINT, UNIVERSAL 2
8CR-23845-10-00
Unavailable
34
NUT (3WP1)
95317-10700-00
Unavailable
35
NUT, HEXAGON (8A5)
90170-10186-00
Unavailable
36
PIN, COTTER
91490-20025-00
Unavailable
37
ROD, STEERING RELAY
8HG-23821-00-00
Unavailable
38
JOINT, UNIVERSAL 3
8CR-23847-00-00
Unavailable
39
JOINT, UNIVERSAL 2
8CR-23845-10-00
Unavailable
40
NUT (3WP1)
95317-10700-00
Unavailable
41
NUT, HEXAGON (8A5)
90170-10186-00
Unavailable
42
ARM PIVOT ASSY
8FG-2389K-00-00
Unavailable
43
BUSH, FORMED
90383-17001-00
Unavailable
44
ARM PIVOT ASSY. , 2
8FA-2389M-00-00
Unavailable
45
BEARING
93317-41785-00
Unavailable
46
BUSH, SOLID
90381-14001-00
Unavailable
47
BOLT, FLANGE
90105-12017-00
Unavailable
48
CLIP, RING
8FA-2384N-00-00
Unavailable
49
COLLAR
8FA-2412G-00-00
Unavailable
50
WASHER, PLATE
90201-121U3-00
Unavailable
51
ARM, IDLER
8FU-23826-00-00
Unavailable
52
BOLT, PIN HOLE (8M6)
90102-10044-00
Unavailable
53
COLLAR
90387-10070-00
Unavailable
54
WASHER PLATE (3L6)
90201-10742-00
Unavailable
55
ROD, TIE
8HG-23831-00-00
Unavailable
56
JOINT, UNIVERSAL 2
8CR-23845-10-00
Unavailable
57
JOINT, UNIVERSAL 3
8FA-23847-00-00
Unavailable
58
NUT (3WP1)
95317-10700-00
Unavailable
59
NUT, HEXAGON (8A5)
90170-10186-00
Unavailable
60
BOLT, PIN HOLE (8M6)
90102-10044-00
Unavailable
61
NUT, NYLON
95707-10300-00
Unavailable
62
NUT, FLANGE(3BM)
95704-10500-00
Unavailable
63
PIN, COTTER
91490-20025-00
Unavailable
64
WASHER PLATE (3L6)
90201-08759-00
Unavailable
65
PAD, STEERING
8FR-23815-00-00
Unavailable
