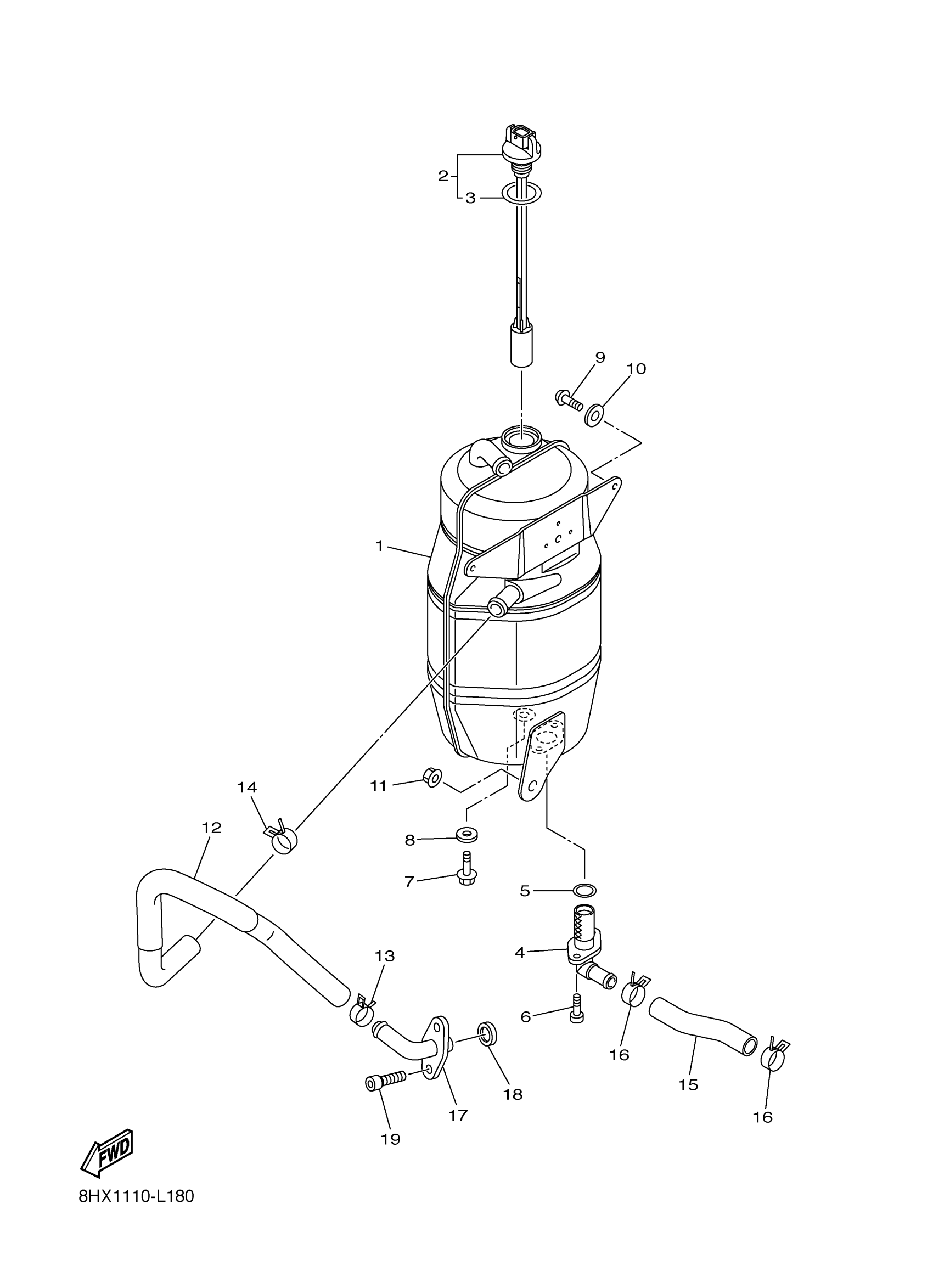

Yamaha RST90PGTBR (RS VENTURE GT) 8HX10 2012 OIL TANK Diagram

#

Description
Price

1

TANK, OIL

8HV-21751-00-00

$786.08

2

OIL LEVEL GAUGE ASSY

8GL-85720-00-00

$54.09

3

O-RING

8FP-85075-00-00

$8.12

4

OIL PIPE COMP. 2

8GL-13406-00-00

$113.41

5

O-RING

93210-24001-00

$5.23

6

BOLT(3MA)

91312-06016-00

$4.57

7

BOLT, FLANGE

95817-08012-00

$3.71

8

GASKET(3AJ)

90430-08204-00

$6.10

9

BOLT, BUTTON HEAD

92012-06016-00

$5.80

10

WASHER, PLATE

90201-06078-00

$5.11

11

NUT, SELF-LOCKING

95602-08200-00

$2.73

12

HOSE, OIL 1

8GM-13464-00-00

Unavailable

13

CLIP(34X)

90467-22097-00

$6.65

14

CLIP(34X)

90467-22097-00

$6.65

15

HOSE, OIL 2

8HF-13465-00-00

Unavailable

16

CLIP(34X)

90467-22097-00

$6.65

17

CONNECTOR, SUCTION PIPE

8ES-13115-00-00

Unavailable

18

O-RING (26H)

93210-16629-00

Unavailable

19

BOLT(3MA)

91312-06016-00

$4.57
