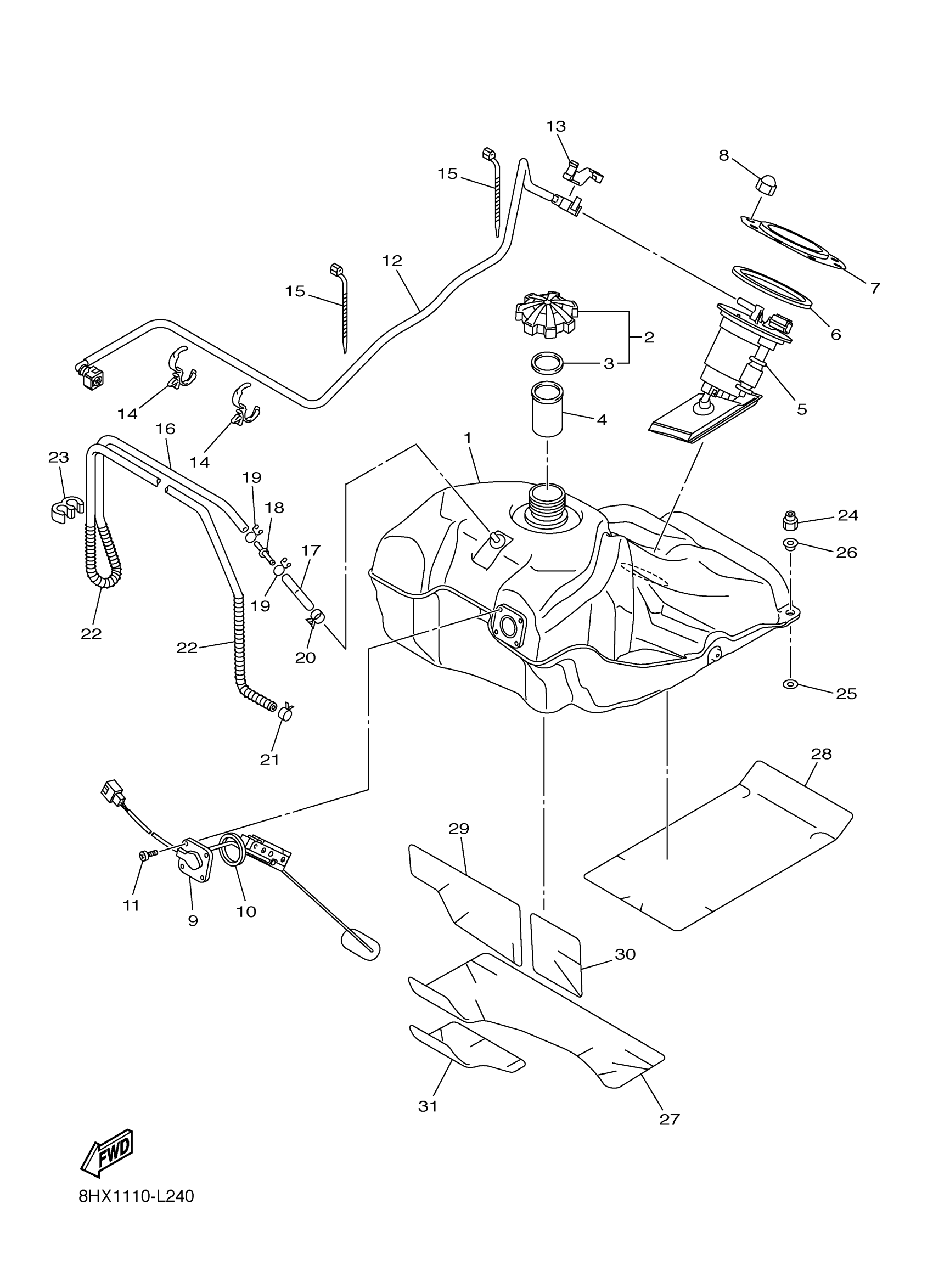

Yamaha RST90PGTBR (RS VENTURE GT) 8HX10 2012 FUEL TANK Diagram

TANK, FUEL

8HG-24111-00-00

Unavailable

CAP ASSY

8FG-24610-01-00

$40.99

GASKET, CAP 1

8HV-24641-00-00

Unavailable

TUBE, FILLER

8FP-24114-00-00

Unavailable

FUEL PUMP COMP.

8HG-13907-03-00

Unavailable

O-RING

8FP-24486-00-00

$18.99

BRACKET, FUEL PUMP

8FP-24491-00-00

Unavailable

NUT (J17)

95380-06800-00

$8.49

SENDER UNIT ASSY, FUEL METER

8HG-85752-00-00

$95.99

O-RING (102)

93210-41041-00

$7.49

SCREW, BIND

98902-05008-00

$1.70

PIPE, FUEL 1

8HV-24311-01-00

Unavailable

CLAMP

90464-14004-00

$7.49

CLAMP(4TR)

90464-18246-00

$2.44

CLAMP

90464-13077-00

$8.49

TUBE, FLEXIBLE VINYL(8AT)

91A20-05145-00

Unavailable

PIPE, JOINT

8FR-24461-00-00

Unavailable

PIPE, JOINT

8H8-24376-00-00

Unavailable

CLIP (8L2)

90467-08017-00

Unavailable

CLIP (8A1)

90467-09026-00

Unavailable

CLIP (8A1)

90467-09026-00

Unavailable

SPRING, COMPRESSION (10L)

90501-08668-00

Unavailable

CLAMP

90464-09M21-00

Unavailable

NUT, NYLON

95717-08300-00

Unavailable

WASHER, PLATE

90201-08045-00

Unavailable

COLLAR(1HX)

90387-081N1-00

Unavailable

PROTECTOR, FUEL TANK

8HV-24141-00-00

Unavailable

PROTECTOR

8HV-24595-00-00

Unavailable

INSULATOR, FUEL TANK 1

8HV-2416F-00-00

Unavailable

INSULATOR, FUEL TANK 2

8HV-2416G-00-00

Unavailable

INSULATOR, FUEL TANK 1

8HF-2416F-00-00

Unavailable
