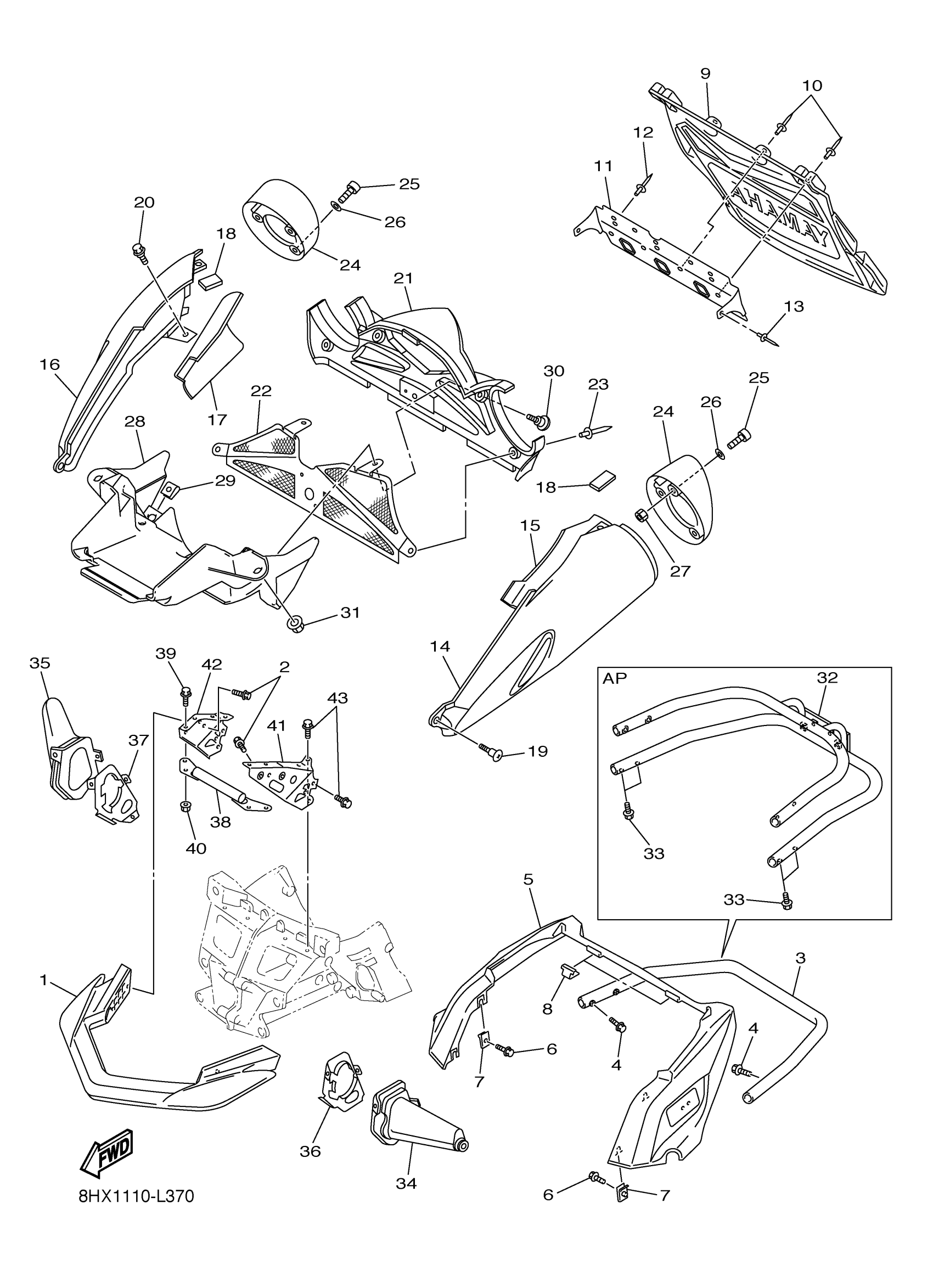

Yamaha RST90PGTBR (RS VENTURE GT) 8HX10 2012 BUMPER Diagram
#
1
BUMPER, FRONT 1
8FA-77511-01-00
$250.99
2
BOLT, FLANGE(JN5)
95817-08016-00
$5.49
3
BUMPER, REAR 1
8FP-77541-01-00
Unavailable
4
BOLT, FLANGE(8AB)
95817-08020-00
$9.49
5
BUMPER, REAR 2
8FA-77542-00-00
Unavailable
6
BOLT, FLANGE
95817-06016-00
$2.75
7
NUT, SPRING(4ES)
90183-06069-00
Unavailable
8
TAPE 4
8HV-7717H-00-00
$1.49
9
FLAP
8GW-77595-00-00
Unavailable
10
RIVET, BLIND(8CH)
90267-47187-00
$2.34
11
STOPPER, FLAP
8GW-77596-01-00
Unavailable
12
RIVET, BLIND(3JB)
90267-48095-00
$9.49
13
RIVET, BLIND
90267-47195-00
$3.88
14
PROTECTOR 1
8FP-77551-01-33
Unavailable
14
PROTECTOR 1
8FP-77551-01-P0
Unavailable
15
LINING, SHROUD 1
8HV-77261-00-00
Unavailable
16
PROTECTOR 2
8FP-77552-01-33
Unavailable
17
LINING, SHROUD 2
8HV-77262-00-00
Unavailable
18
LINING, SHROUD 3
8HV-77263-00-00
Unavailable
19
SCREW, BINDING
90154-06009-00
Unavailable
20
BOLT
90109-06220-00
Unavailable
21
COVER, TAILLIGHT
8FP-84516-01-00
Unavailable
22
LOUVER 1
8FP-77441-00-00
Unavailable
23
RIVET, BLIND(8CH)
90267-47187-00
$2.34
24
CAP
8FP-77517-00-00
Unavailable
25
BOLT,SOCKET HEAD
91314-06020-00
Unavailable
26
YBS66-6 WASHER, PLAIN
92990-06200-00
Unavailable
27
NUT, HEXAGON
95380-06600-00
Unavailable
28
BRACKET, TAILLIGHT
8FP-2117E-01-00
Unavailable
29
NUT, SPRING(4ES)
90183-06069-00
Unavailable
30
BOLT
90109-06220-00
Unavailable
31
NUT, U FLANGE
95604-06200-00
Unavailable
32
BUMPER, REAR 1
8ET-77541-01-00
Unavailable
33
BOLT, FLANGE
95814-08016-00
Unavailable
34
COVER 1
8FU-2198F-01-00
Unavailable
35
COVER 3
8FU-2198J-01-00
Unavailable
36
PLATE, STRG BRACKET 1
8FU-2195E-01-00
Unavailable
37
PLATE, STRG BRACKET 2
8FU-2195F-01-00
Unavailable
38
BRKT. ,FR. FOOD
8FP-21979-00-00
Unavailable
39
BOLT, FLANGE
95817-06014-00
Unavailable
40
NUT, FLANGE
95702-06500-00
Unavailable
41
BRACKET, FRONT
8FA-21949-00-00
Unavailable
42
BRACKET, FRONT BUMPER
8FA-21959-00-00
Unavailable
43
BOLT, FLANGE
95814-08016-00
Unavailable
