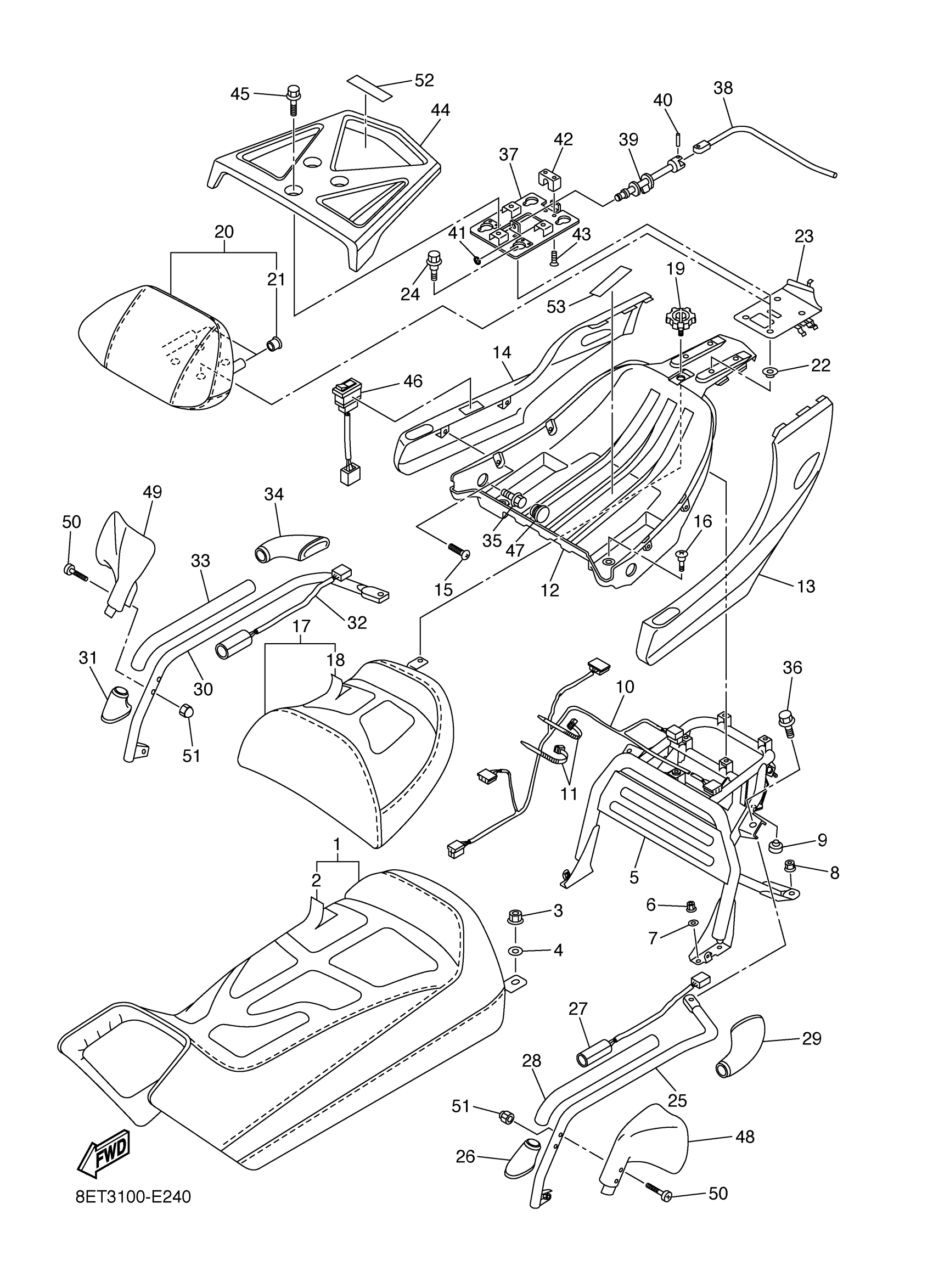

Yamaha RST90L (RS VENTURE) 8ET3 2006 SEAT Diagram
#
1
SINGLE SEAT ASSY
8ET-24710-00-00
Unavailable
5
REINFORCEMENT
8ET-24766-00-00
Unavailable
9
STOPPER
8FA-24768-00-00
Unavailable
10
CORD, TAILLIGHT
8ET-84717-00-00
Unavailable
12
COVER, TAIL
8ET-24756-00-00
Unavailable
13
COVER, TAIL 1
8ET-2471K-00-00
Unavailable
14
COVER, TAIL 2
8ET-2472K-00-00
Unavailable
16
SCREW, BINDING
90154-06009-00
Unavailable
17
TANDEM SEAT ASSY
8ET-24750-00-00
Unavailable
18
SEAT COVER COMP. ,2
8ET-2470H-00-00
Unavailable
19
KNOB
8ET-24598-00-00
Unavailable
20
SEAT BACK ASSY
8ET-24790-01-00
Unavailable
21
PLUG (5R2)
90338-18122-00
Unavailable
22
COLLAR(3VD)
90387-072Y3-00
Unavailable
23
PLATE, LOCK
8ET-2479K-00-00
Unavailable
24
BOLT
8ET-24834-00-00
Unavailable
25
STAY, FRONT 1
8ET-2474F-00-00
Unavailable
26
COVER 1
8ET-2842M-00-00
Unavailable
27
ASSIST GRIP WARMER ASSY 1
8GS-2474B-00-00
Unavailable
28
COVER
8ET-24796-00-00
Unavailable
29
COVER 3
8ET-2843J-00-00
Unavailable
30
STAY, FRONT 2
8ET-2474G-00-00
Unavailable
31
COVER 2
8ET-2842N-00-00
Unavailable
32
ASSIST GRIP WARMER ASSY 1
8GS-2474B-00-00
Unavailable
33
COVER
8ET-24796-00-00
Unavailable
34
COVER 4
8ET-2844J-00-00
Unavailable
35
BOLT, FLANGE(JN5)
95817-08016-00
Unavailable
36
BOLT, FLANGE(8AB)
95817-08020-00
Unavailable
37
PLATE, GUIDE 2
8ET-2476E-00-00
Unavailable
38
LEVER, SEAT
8ET-2477F-00-00
Unavailable
39
BAR, SEAT LEVER
8ET-2478C-00-00
Unavailable
40
PIN, SPRING
91690-40020-00
Unavailable
41
CIRCLIP
99080-07600-00
Unavailable
42
HOLDER 1
8ET-24847-00-00
Unavailable
43
SCREW (1FK)
90151-06036-00
Unavailable
44
CARRIER, REAR
8ET-24842-00-00
Unavailable
45
BOLT, FLANGE(8AB)
95817-08020-00
Unavailable
46
SWITCH
8ET-82917-00-00
Unavailable
47
PLUG(XA1)
90338-28242-00
Unavailable
48
GUARD, BRUSH 1
8ET-26141-00-00
Unavailable
49
GUARD, BRUSH 2
8ET-26142-00-00
Unavailable
50
SCREW, BINDING
98907-06030-00
Unavailable
51
NUT (J17)
95380-06800-00
Unavailable
52
EMBLEM
8ET-24897-00-00
Unavailable
53
EMBLEM
8FM-24897-01-00
Unavailable
