Description

Price

1

OIL PUMP ASSY

8ES-13300-00-00

Unavailable

2

SPROCKET, DRIVEN

4XV-13355-00-00

Unavailable

3

BOLT, WASHER BASED (4H7)

90105-06154-00

$4.72

4

SPACER, STRAINER

8ES-13427-00-00

$18.49

5

PIPE

8ES-13284-00-00

$4.68

6

O-RING (1L9)

93210-18322-00

$5.60

7

O-RING (26H)

93210-14579-00

$7.49

8

BOLT, FLANGE

95817-06040-00

$5.60

9

PIN, DOWEL(8AH)

91808-22019-00

$9.49

10

HOSE, OIL 1

8ES-13464-00-00

Unavailable

11

CLIP(34X)

90467-22097-00

$9.49

12

CLIP(34X)

90467-22097-00

$9.49

13

HOSE, OIL 2

8ES-13465-00-00

Unavailable

14

CLIP(34X)

90467-22097-00

$9.49

15

CONNECTOR, SUCTION PIPE

8ES-13115-00-00

$43.99

16

O-RING (26H)

93210-16629-00

Unavailable

17

BOLT,SOCKET

91317-06016-00

Unavailable

18

CHAIN

94580-25064-00

Unavailable

19

HOLDER

8ES-13898-01-00

Unavailable

20

BOLT, FLANGE

95817-06012-00

Unavailable

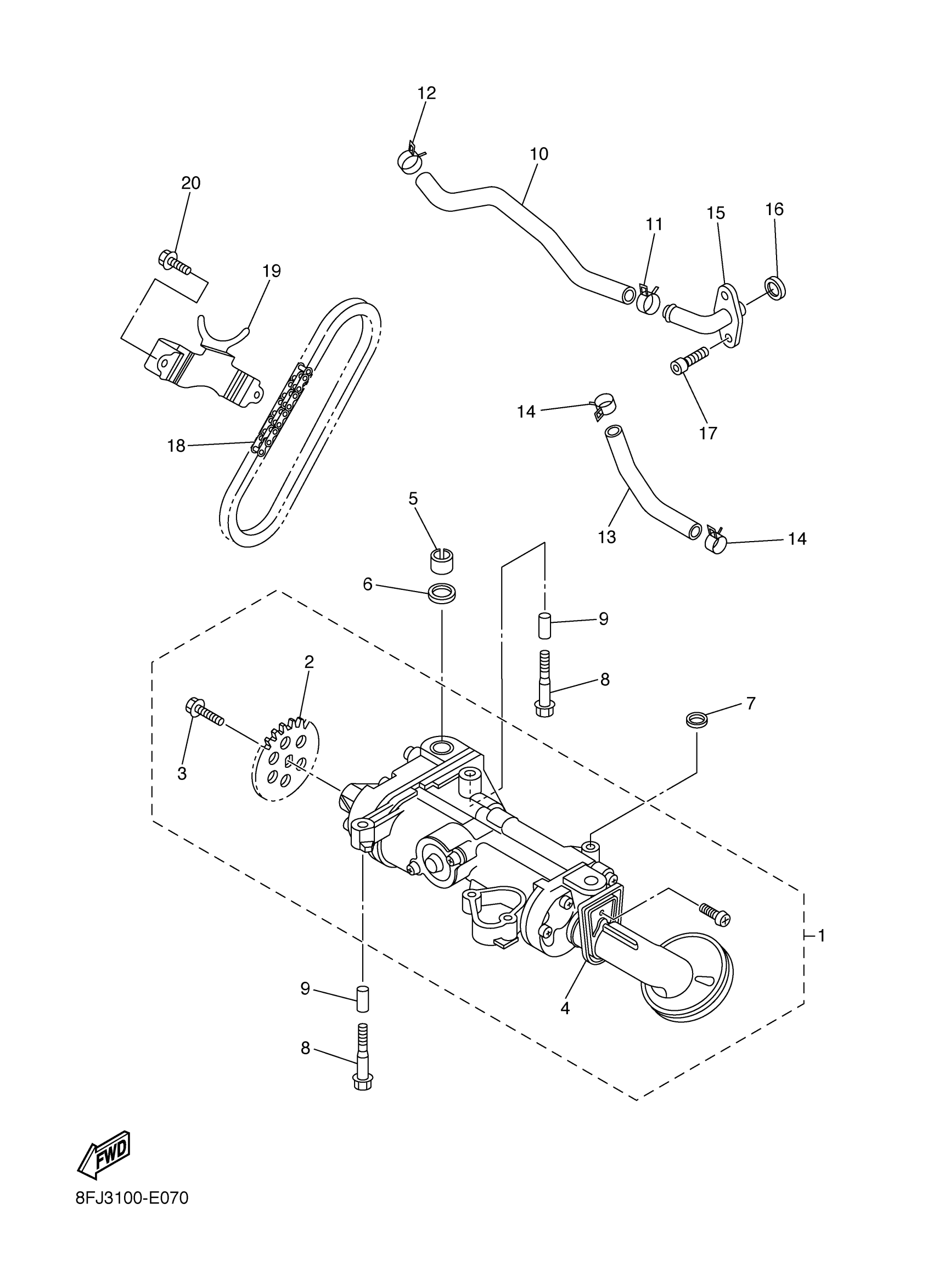

Yamaha RST90L (RS VENTURE) 8ET3 2006 OIL PUMP Diagram

OIL PUMP ASSY

SPROCKET, DRIVEN

BOLT, WASHER BASED (4H7)

SPACER, STRAINER

PIPE

O-RING (1L9)

O-RING (26H)

BOLT, FLANGE

PIN, DOWEL(8AH)

HOSE, OIL 1

CLIP(34X)

CLIP(34X)

HOSE, OIL 2

CLIP(34X)

CONNECTOR, SUCTION PIPE

O-RING (26H)

BOLT,SOCKET

CHAIN

HOLDER

BOLT, FLANGE
