TRACK SUSPENSION 1

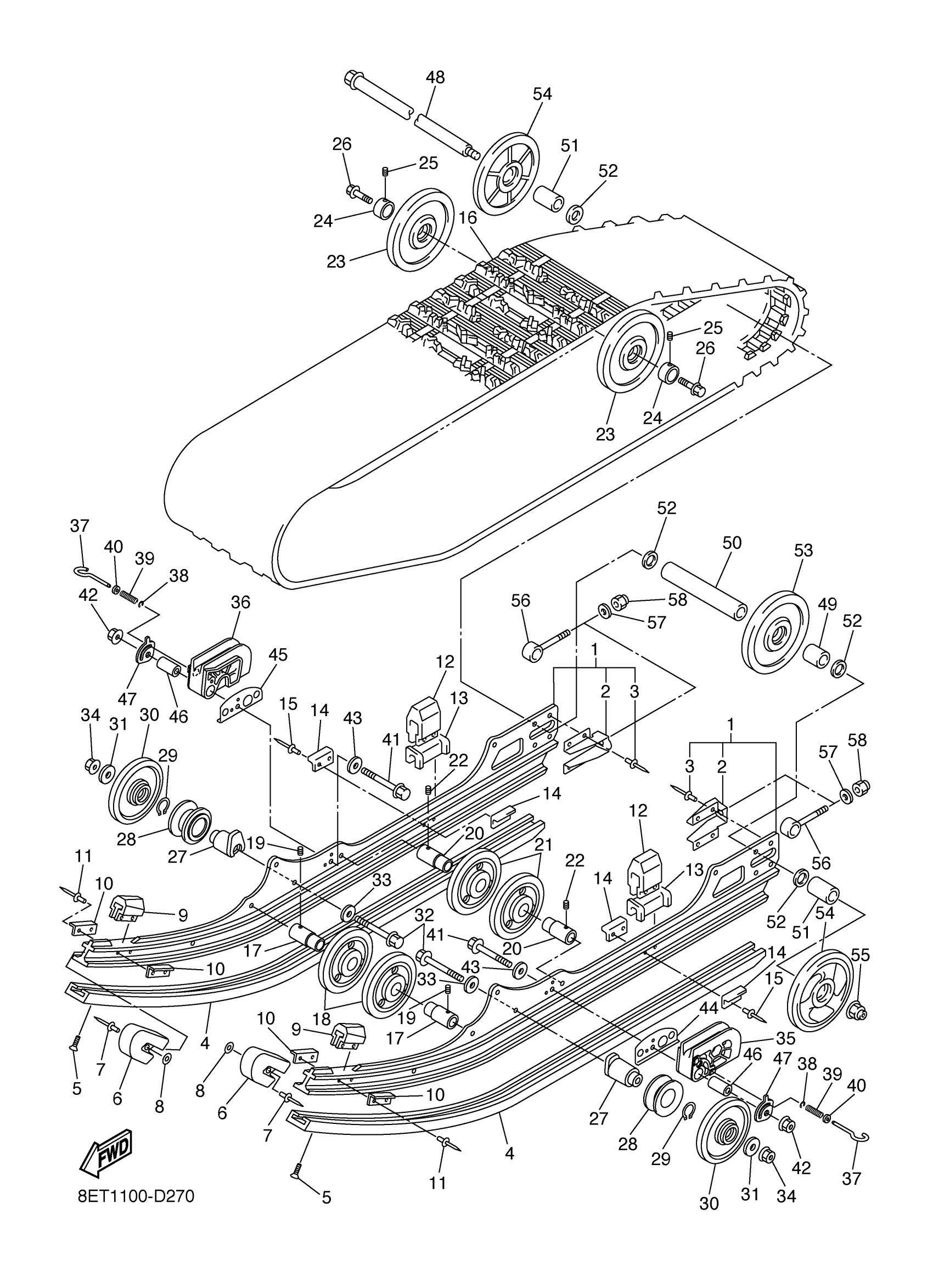

Yamaha RST90K (RS Venture) 8ET1 2005 TRACK SUSPENSION 1 Diagram
#
1
FRAME, SLIDING
8ET-W4741-11-00
Unavailable
2
BRACKET
8DM-4741B-00-00
$45.99
3
RIVET
8V0-47468-00-00
$10.49
4
FX NYTRO 162" HP WIDE HYFAX
SMA-8HR92-00-BK
Unavailable
5
SCREW, CROSSRECESS (8G6)
90151-06005-00
$9.49
6
RUNNER, SLIDING 2
8ED-47422-00-00
$46.99
7
RIVET BLIND
90267-48194-00
$3.28
8
WASHER, PLATE(8CM)
90201-047R8-00
$3.02
9
DAMPER 1
8ES-47456-00-00
$6.99
10
PLATE, DAMPER
8K2-47458-01-00
$4.77
11
RIVET, BLIND
90267-48199-00
$3.76
12
DAMPER 2
8CM-47457-00-00
$16.49
13
SPACER
8CM-47341-00-00
$16.49
14
PLATE, DAMPER
8AX-47458-00-00
$10.99
15
RIVET, BLIND
90267-48199-00
$3.76
16
TRACK RIP SAW 15X144X1.25
SMA-TRACK-90-06
Unavailable
17
COLLAR
8ES-47319-01-00
Unavailable
18
SUSPENSION WHEEL ASSY
8ES-47310-10-00
Unavailable
19
BOLT, SET (8K2)
90113-06039-00
Unavailable
20
COLLAR
8ES-47319-01-00
Unavailable
21
SUSPENSION WHEEL ASSY
8ES-47310-10-00
Unavailable
22
BOLT, SET (8K2)
90113-06039-00
Unavailable
23
GUIDE WHEEL ASSY
8CR-47550-00-00
Unavailable
24
COLLAR 1
8ES-47365-00-00
Unavailable
25
BOLT, SET (8K2)
90113-06039-00
Unavailable
26
BOLT (8V0)
90109-10771-00
Unavailable
27
BRACKET 7
8ES-47419-10-00
Unavailable
28
HOOK 1
8ET-47446-00-00
Unavailable
29
CIRCLIP(6U2)
93410-35M10-00
Unavailable
30
SUSPENSION WHEEL ASSY
8ES-47310-00-00
Unavailable
31
WASHER, PLATE(42X)
90201-105H3-00
Unavailable
32
BOLT, FLANGE
95817-10080-00
Unavailable
33
WASHER, PLATE (17K)
90201-106F2-00
Unavailable
34
NUT, SELF-LOCKING(JN5)
95607-10200-00
Unavailable
35
SPRING, OUTSIDE 1
8ET-47435-10-00
Unavailable
36
SPRING, OUTSIDE 2
8ET-47436-10-00
Unavailable
37
PIN 1
8ET-47449-10-00
Unavailable
38
CIRCLIP (EU0)
99080-04600-00
Unavailable
39
SPRING, CONPRESSION (7R4)
90501-08665-00
Unavailable
40
WASHER 6464337400
90201-06040-00
Unavailable
41
BOLT,FLANGE
95817-10065-00
Unavailable
42
NUT, SELF-LOCKING(JN5)
95607-10200-00
Unavailable
43
WASHER, PLATE (17K)
90201-106F2-00
Unavailable
44
WASHER 1
8ET-47374-10-00
Unavailable
45
WASHER 2
8ET-47375-10-00
Unavailable
46
COLLAR(47X)
90387-106K8-00
Unavailable
47
WASHER, LOCK
8ET-47347-00-00
Unavailable
48
REAR AXLE COMP.
8L8-47520-10-00
Unavailable
49
COLLAR
90387-20015-00
Unavailable
50
COLLAR
90387-20016-00
Unavailable
51
COLLAR
90387-20019-00
Unavailable
52
WASHER, PLATE(89W)
90201-205R6-00
Unavailable
53
GUIDE WHEEL ASSY
8CR-47550-10-00
Unavailable
54
WEIGHT
8EK-47550-11-00
Unavailable
55
NUT, SELF-LOCKING (8BF)
95607-14200-00
Unavailable
56
COLLAR 3
8DM-47479-00-00
Unavailable
57
WASHER(6TA)
92907-10600-00
Unavailable
58
NUT, NYLON
95707-10300-00
Unavailable
