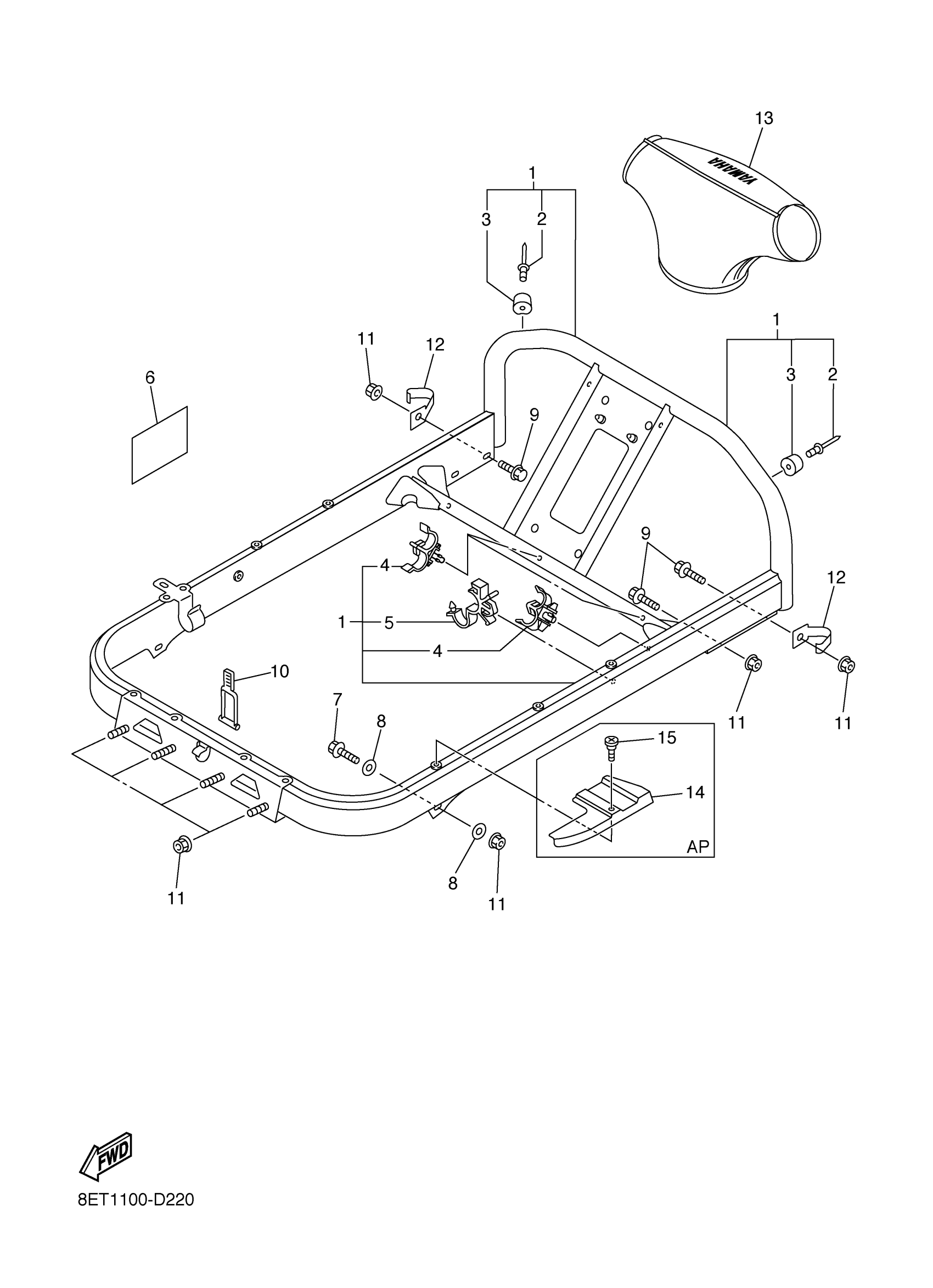

Yamaha RST90K (RS Venture) 8ET1 2005 STEERING GATE Diagram

#

Description
Price

1

STEERING GATE COMP.

8ES-23870-05-00

Unavailable

2

RIVET, BLIND

90267-47195-00

$3.88

3

DAMPAR

8FA-23858-00-00

$2.86

4

CLAMP

90464-11007-00

$2.75

5

CLAMP

90464-16006-00

$9.49

6

LABEL, CAUTION

8FA-2389C-E0-00

Unavailable

7

BOLT, WASHER BASED(JN9)

90105-081A7-00

$8.49

8

WASHER (853)

90201-08326-00

$8.49

9

BOLT, FLANGE(6TA)

95817-08030-00

$8.49

10

LATCH

8FA-2389E-00-00

$13.49

11

NUT, SELF-LOCKING

90185-08169-00

$8.49

12

CLAMP

90462-10022-00

Unavailable

13

PAD, STEERING

8FA-23815-00-00

Unavailable

14

PLATE

8ES-14146-00-00

Unavailable

15

SCREW, ROUND HEAD (24R)

90150-06015-00

$3.66
