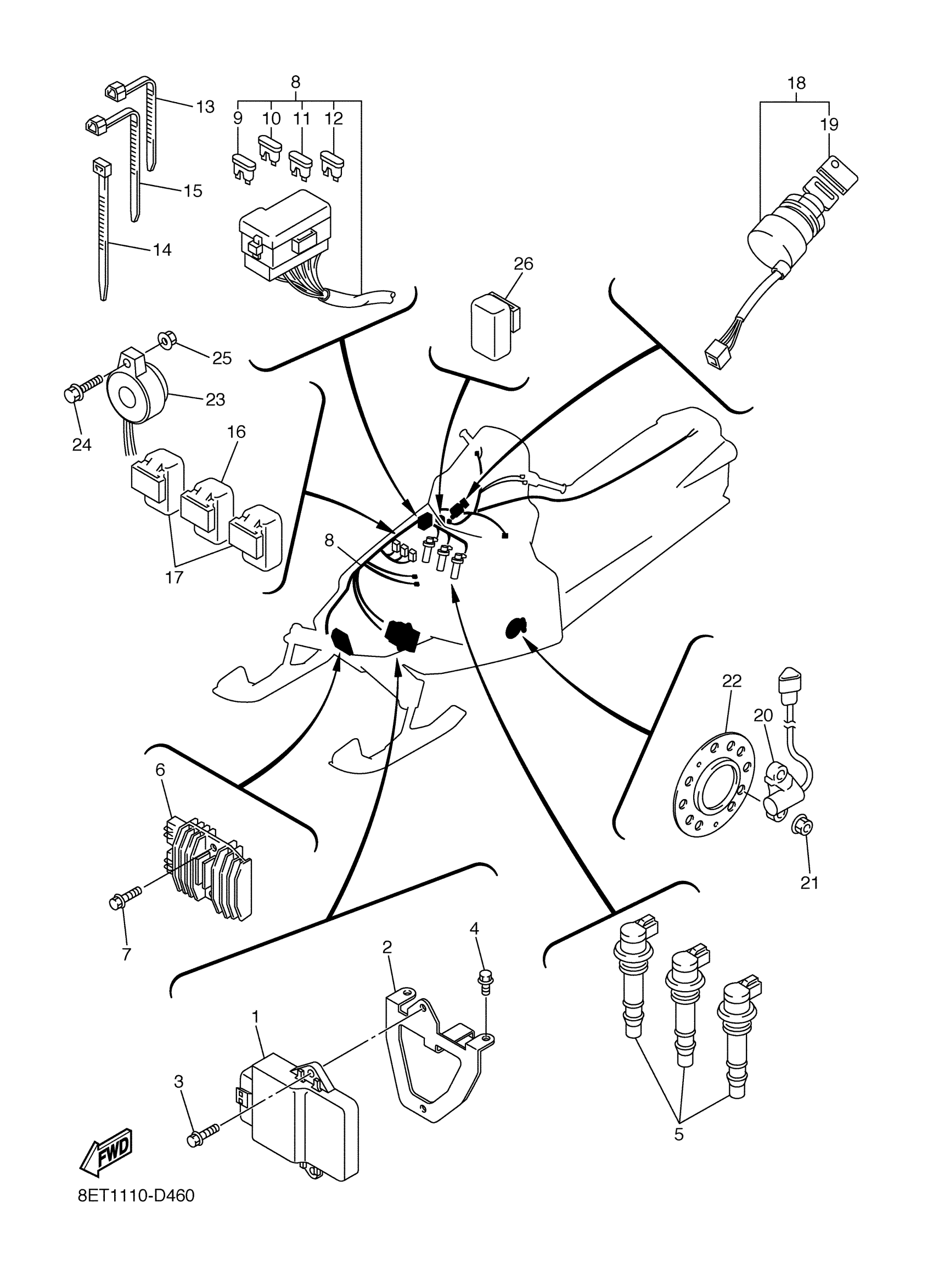

Yamaha RST90K (RS Venture) 8ET1 2005 ELECTRICAL 1 Diagram

#

Description
Price

1

IGNITOR UNIT ASSY

8ET-82305-20-00

Unavailable

2

BRACKET, UNIT

8ES-85991-00-00

$12.08

3

BOLT, FLANGE

95817-06016-00

$1.40

4

BOLT, FLANGE

95817-06010-00

$3.65

5

IGNITION COIL ASSY

8ES-82310-00-00

$128.18

6

RECTIFIER & REGULATOR ASSY

5JW-81960-00-00

$364.55

7

BOLT, FLANGE

95817-06025-00

Unavailable

8

WIRE HARNESS ASSY

8ET-82590-00-00

Unavailable

9

FUSE

5JJ-82151-20-00

$5.98

10

. FUSE (10A)

67F-82151-40-00

$6.07

11

FUSE (15A)

67F-82151-50-00

$3.48

12

. FUSE (3A)

67F-82151-30-00

$4.69

13

CLAMP(4FM)

90464-15195-00

$2.57

14

CLAMP(4FM)

90464-15195-00

$2.57

15

CLAMP

90464-13077-00

$6.22

16

RELAY ASSY

5DM-81950-01-00

Unavailable

17

RELAY ASSY (8DM-00)

8DM-81950-00-00

Unavailable

18

MAIN SWITCH ASSY

8FA-82510-01-00

Unavailable

19

CAP, KEY

526-82579-00-00

Unavailable

20

SENSOR, SPEED

8FP-83755-01-00

Unavailable

21

NUT, NYLON

95717-08300-00

Unavailable

22

HOUSING, FRONT AXLE

8EK-47551-00-00

Unavailable

23

BUZZER

8CW-83383-00-00

Unavailable

24

BOLT(3JK)

97027-05020-00

Unavailable

25

NUT, FLANGE(3GM)

95707-05500-00

Unavailable

26

RELAY ASSY (8DM-00)

8DM-81950-00-00

Unavailable
