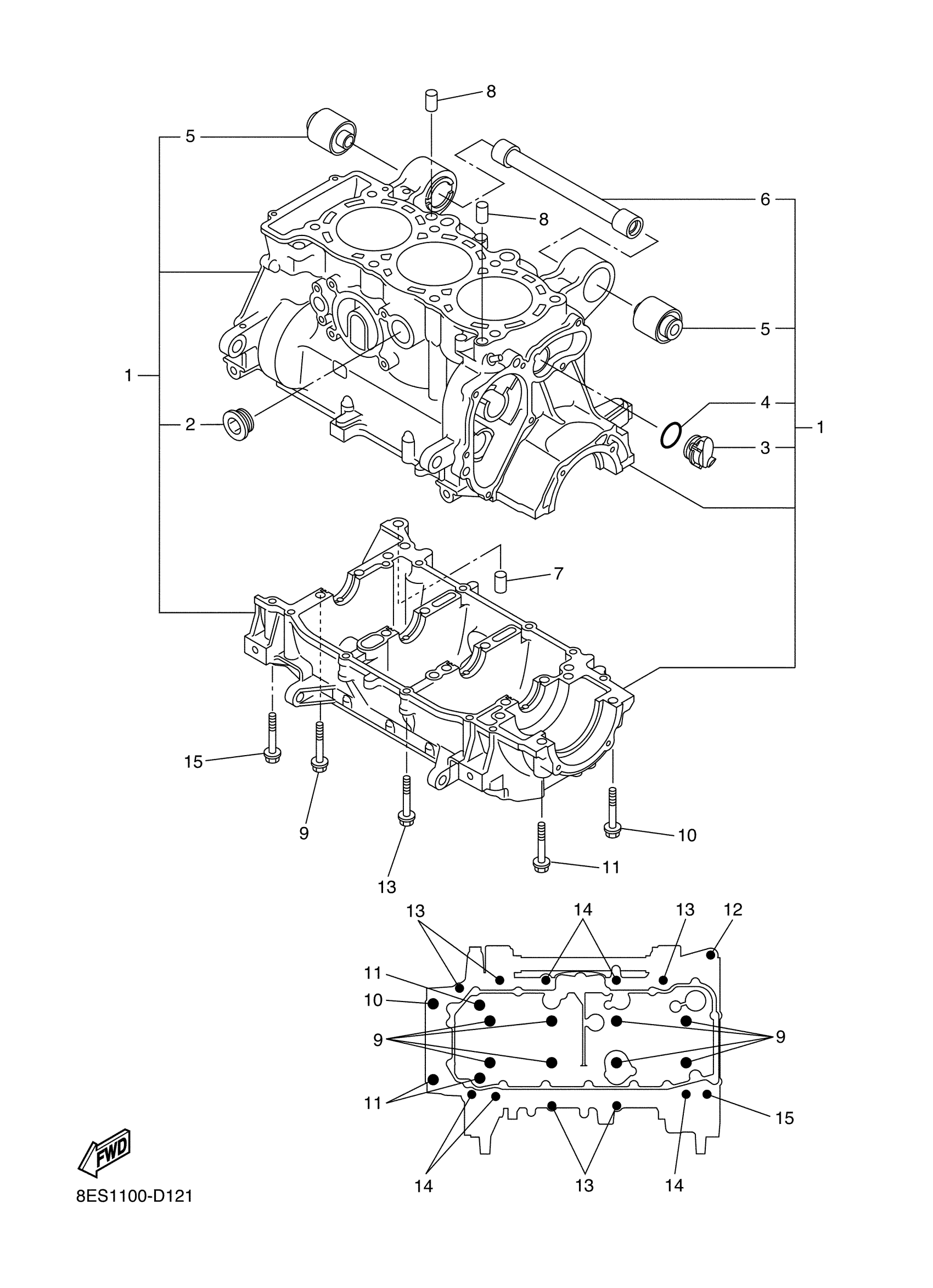

Yamaha RST90K (RS Venture) 8ET1 2005 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSY

8ES-15109-08-00

Unavailable

1

CRANKCASE ASSY

8ES-W1510-08-00

Unavailable

2

PLUG, STRAIGHT SCREW

90340-27001-00

$19.99

3

PLUG, BLIND 1

8ES-15167-00-00

$11.99

4

O-RING(1HX)

93210-24709-00

$9.49

5

DAMPER

8FA-2139X-00-00

Unavailable

6

SPACER

8ES-21459-00-00

Unavailable

7

PIN, DOWEL(3VD)

99530-10114-00

$2.55

8

PIN, DOWEL(3VD)

99530-10114-00

$2.55

9

BOLT, WITH WASHER

90119-09004-00

$11.49

10

BOLT, FLANGE

95817-08055-00

$4.21

11

BOLT, FLANGE(JN5)

95817-08070-00

$3.76

12

BOLT

90109-06185-00

$8.49

13

BOLT, FLANGE

95817-06055-00

$7.49

14

BOLT, FLANGE

95817-06080-00

$4.72

15

BOLT, FLANGE

90105-06058-00

Unavailable
