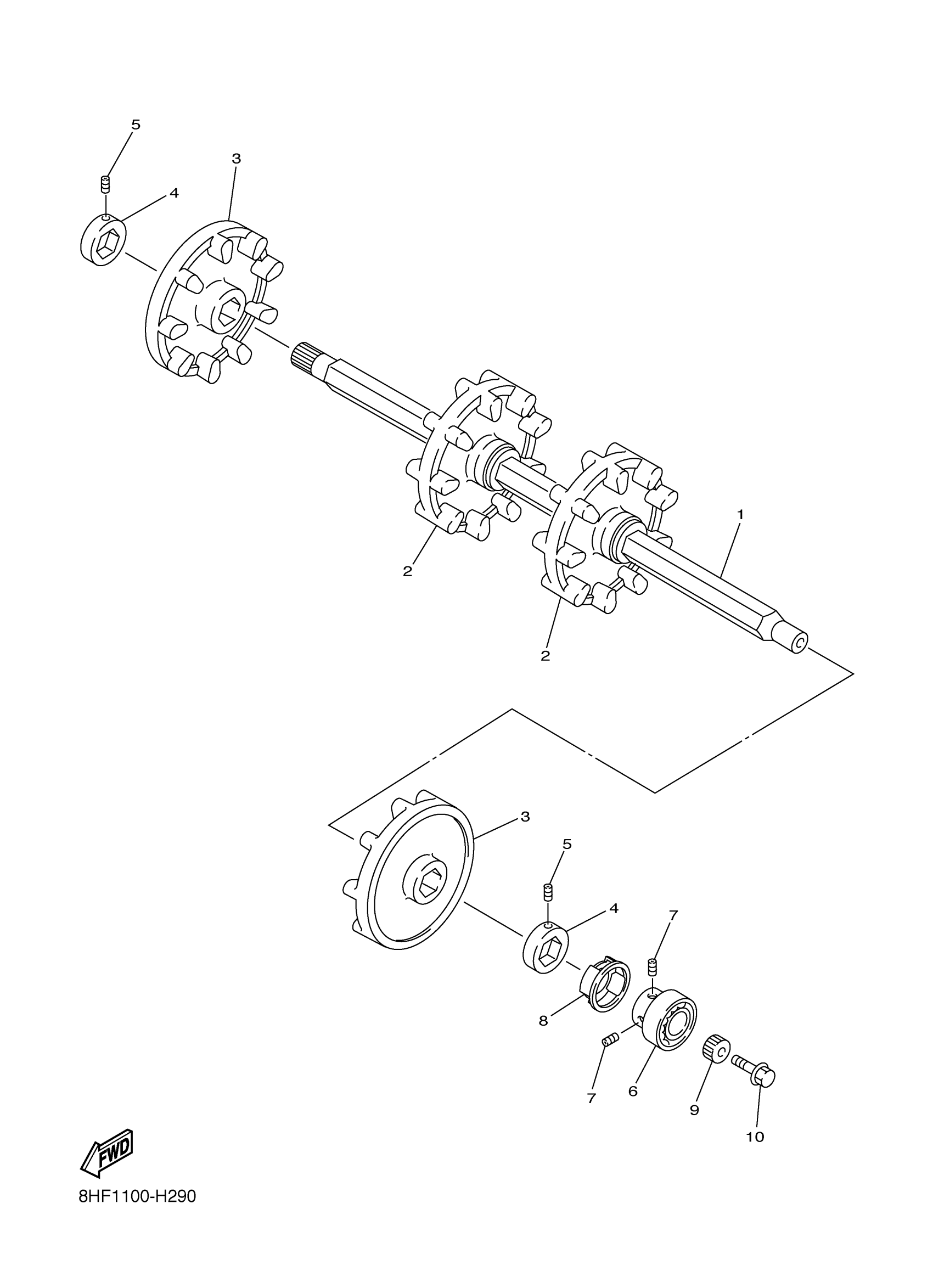

Yamaha RST90HS (RS VENTURE) 8ETH 2017 TRACK DRIVE 1 Diagram

#

Description
Price

1

AXLE, FRONT

8HF-47511-10-00

Unavailable

2

WHEEL, SPROCKET 1

8BW-47531-10-00

$63.36

3

WHEEL, SPROCKET 2

8BW-47532-20-00

$73.42

4

COLLAR

8HF-47526-00-00

Unavailable

5

BOLT, SET (8K2)

90113-06039-00

$6.51

6

BEARING(8CJ)

93306-20589-00

$48.16

7

BOLT, SET

90113-06006-00

$3.34

8

CAP

8FN-47377-00-00

$21.30

9

JOINT

8EK-47715-00-00

$28.34

10

BOLT, FLANGE(3GD)

95817-10025-00

$5.75
