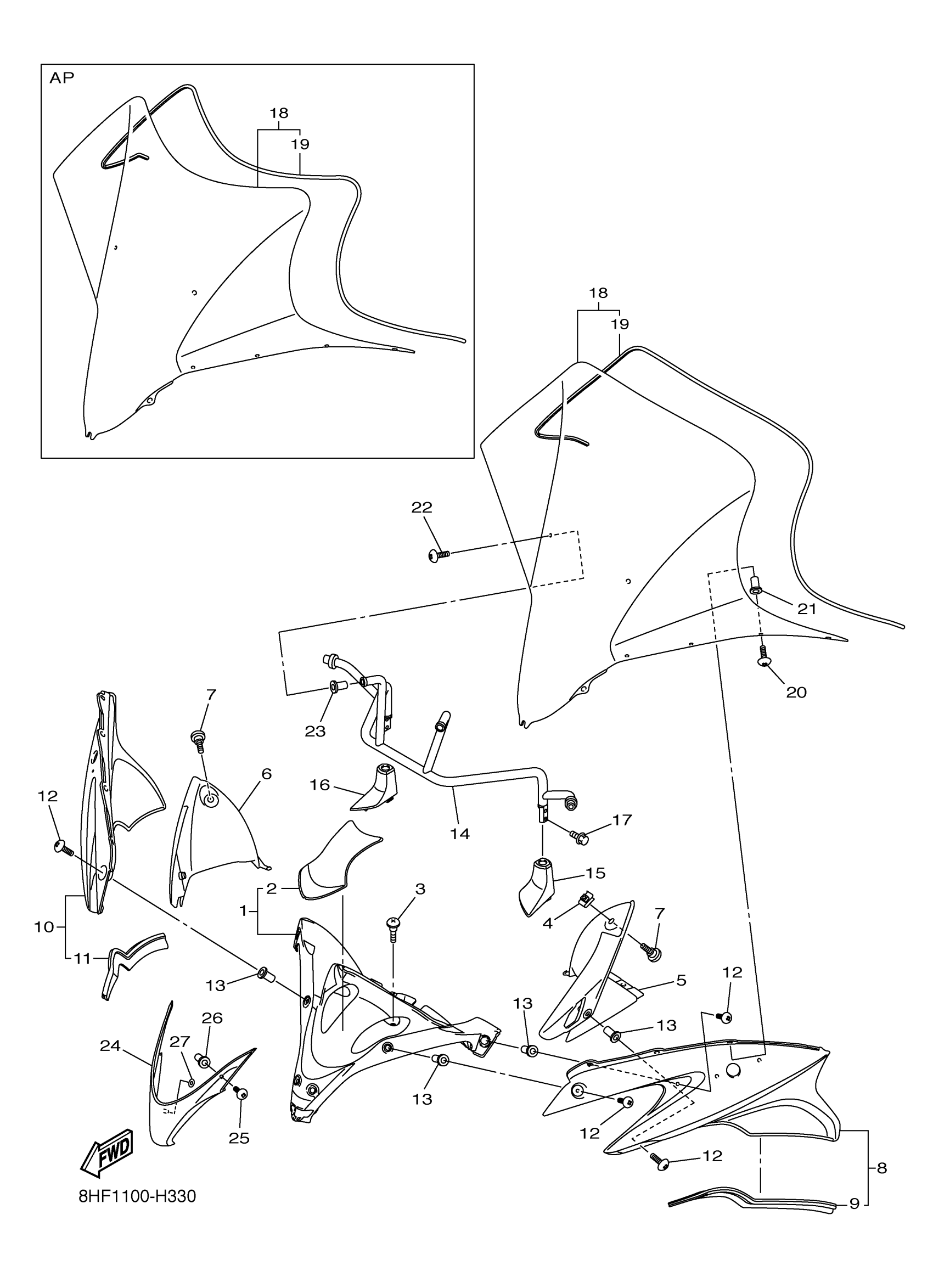

Yamaha RST90GTZR (RS VENTURE GT) 8HF3 2010 WINDSHIELD Diagram
#
Description
Price
1
COVER, HEADLIGHT ASSY
8FP-Y7725-00-00
$205.99
2
DAMPER 1
8HF-77198-00-00
Unavailable
3
SCREW, BINDING
90154-06009-00
$4.61
4
NUT, SPRING
90183-06100-00
$10.49
5
PLATE 1
8FP-77185-00-00
$52.99
6
PLATE 2
8FP-77186-00-00
$59.99
7
SCREW, BINDING
90154-06009-00
$4.61
8
FAIRING 2
8HF-K723A-00-00
Unavailable
9
. TRIM 1
8HF-K7165-00-00
Unavailable
10
FAIRING 3
8HF-K723B-00-00
Unavailable
11
. TRIM 2
8HF-K7166-00-00
Unavailable
12
SCREW, ROUND HEAD(1UX)
90150-05024-00
$5.60
13
NUT(1KT)
90179-05523-00
$8.49
14
STAY 1
8HF-77125-00-00
$462.99
15
GROMMET 1
8HF-77431-00-00
Unavailable
16
GROMMET 2
8HF-77432-00-00
Unavailable
17
BOLT,SOCKET
91317-06016-00
Unavailable
18
WINDSHIELD COMP.
8HF-K7210-00-00
Unavailable
18
WINDSHIELD COMP.
8HF-K7210-10-00
Unavailable
19
TRIM, UPPER
8HF-K7213-00-00
Unavailable
19
TRIM, UPPER
8HF-K7213-00-00
Unavailable
20
SCREW(3YF)
90149-05299-00
Unavailable
21
NUT(1KT)
90179-05523-00
$8.49
22
SCREW, ROUND HEAD(1UX)
90150-05024-00
$5.60
23
NUT
90179-05003-00
Unavailable
24
FAIRING
8HF-K7231-00-00
Unavailable
25
SCREW, ROUND HEAD(1UX)
90150-05024-00
$5.60
26
NUT(1KT)
90179-05523-00
$8.49
27
NUT, SPRING
90183-06071-00
Unavailable
