TRACK SUSPENSION 1

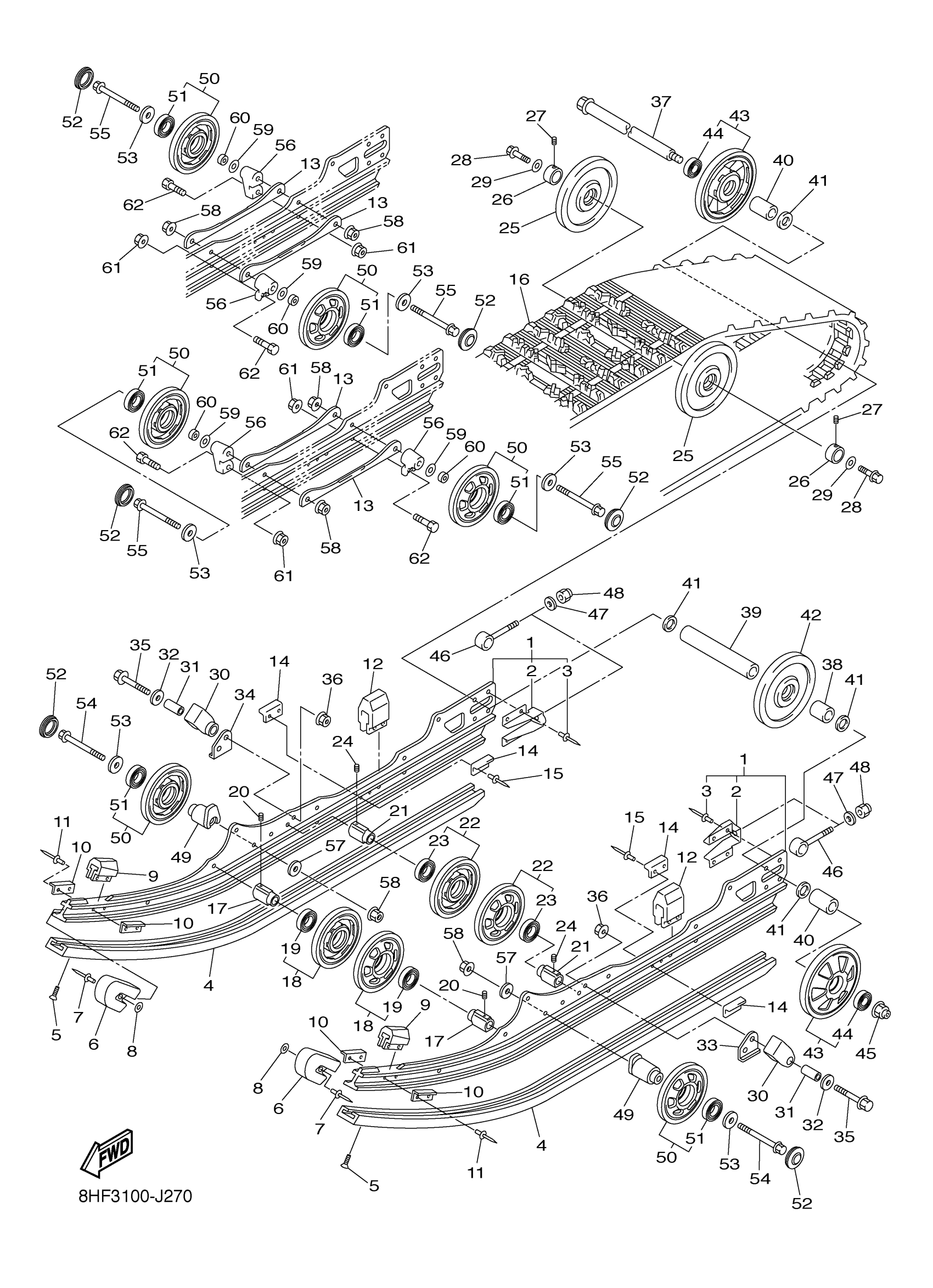

Yamaha RST90GTZR (RS VENTURE GT) 8HF3 2010 TRACK SUSPENSION 1 Diagram
#
1
FRAME, SLIDING
8HF-W4741-00-00
Unavailable
2
BRACKET
8DM-4741B-00-00
$45.99
3
RIVET
8V0-47468-00-00
$10.49
4
FX NYTRO 162" HP WIDE HYFAX
SMA-8HR92-00-BK
Unavailable
5
SCREW, CROSSRECESS (8G6)
90151-06005-00
$9.49
6
RUNNER, SLIDING 2
8ED-47422-00-00
$46.99
7
RIVET BLIND
90267-48194-00
$3.28
8
WASHER, PLATE(8CM)
90201-047R8-00
$3.02
9
DAMPER 1
8ES-47456-00-00
$6.99
10
PLATE, DAMPER
8K2-47458-01-00
$4.77
11
RIVET, BLIND
90267-48199-00
$3.76
12
DAMPER 2
8FP-47457-00-00
Unavailable
13
FRAME, SLIDING C
8HF-4741C-00-00
$163.99
14
PLATE, DAMPER
8AX-47458-00-00
$10.99
15
RIVET, BLIND
90267-48199-00
$3.76
16
TRACK ASSY
8ET-47110-20-00
Unavailable
17
COLLAR
8ES-47319-01-00
Unavailable
18
WHEEL BLK 130MM
SMA-8FP38-01-BK
Unavailable
19
BRG,R-B 6005 47MM 85G KY
93306-00507-00
Unavailable
20
BOLT, SET (8K2)
90113-06039-00
Unavailable
21
COLLAR
8ES-47319-01-00
Unavailable
22
WHEEL BLK 130MM
SMA-8FP38-01-BK
Unavailable
23
BRG,R-B 6005 47MM 85G KY
93306-00507-00
Unavailable
24
BOLT, SET (8K2)
90113-06039-00
Unavailable
25
GUIDE WHEEL ASSY
8CR-47550-00-00
Unavailable
26
COLLAR 1
8ES-47365-00-00
Unavailable
27
BOLT, SET (8K2)
90113-06039-00
Unavailable
28
BOLT
90109-10032-00
Unavailable
29
WASHER, PLATE
90201-10039-00
Unavailable
30
HOOK 1
8HF-47446-00-00
Unavailable
31
COLLAR (128-25183-00)
90387-10081-00
Unavailable
32
WASHER, PLATE(8CM)
90201-100S0-00
Unavailable
33
WASHER 1
8HF-47374-00-00
Unavailable
34
WASHER 2
8HF-47375-00-00
Unavailable
35
BOLT, FLANGE(87Y)
95817-10055-00
Unavailable
36
NUT, S/L FLANGE
95602-10200-00
Unavailable
37
REAR AXLE COMP.
8L8-47520-10-00
Unavailable
38
COLLAR
90387-20015-00
Unavailable
39
COLLAR
90387-20016-00
Unavailable
40
COLLAR
90387-20019-00
Unavailable
41
WASHER, PLATE
90201-20022-00
Unavailable
42
GUIDE WHEEL ASSY
8CR-47550-10-00
Unavailable
43
REAR WHEEL BLK 178MM
SMA-8FP38-02-BK
Unavailable
44
BEARING(8AB)
93306-00444-00
Unavailable
45
NUT, U FLANGE
95602-14200-00
Unavailable
46
COLLAR 3
8DM-47479-00-00
Unavailable
47
WASHER, PLATE
92990-10600-00
Unavailable
48
NUT, NYLON
95707-10300-00
Unavailable
49
BRACKET 7
8ES-47419-00-00
Unavailable
50
WHEEL BLK 130MM
SMA-8FP38-01-BK
Unavailable
51
BRG,R-B 6005 47MM 85G KY
93306-00507-00
Unavailable
52
CAP, WHEEL
8HF-47317-00-00
Unavailable
53
WASHER, PLATE
90201-10038-00
Unavailable
54
BOLT, FLANGE
95812-10080-00
Unavailable
55
BOLT, FLANGE
90105-10150-00
Unavailable
56
BRACKET 7
8CM-47419-30-00
Unavailable
57
WASHER, PLATE (17K)
90201-106F2-00
Unavailable
58
NUT, S/L FLANGE
95602-10200-00
Unavailable
59
WASHER, PLATE(8CM)
90201-100S0-00
Unavailable
60
COLLAR
90387-10031-00
Unavailable
61
NUT, SELF-LOCKING
95602-08200-00
Unavailable
62
BOLT(8CM)
90101-08774-00
Unavailable
