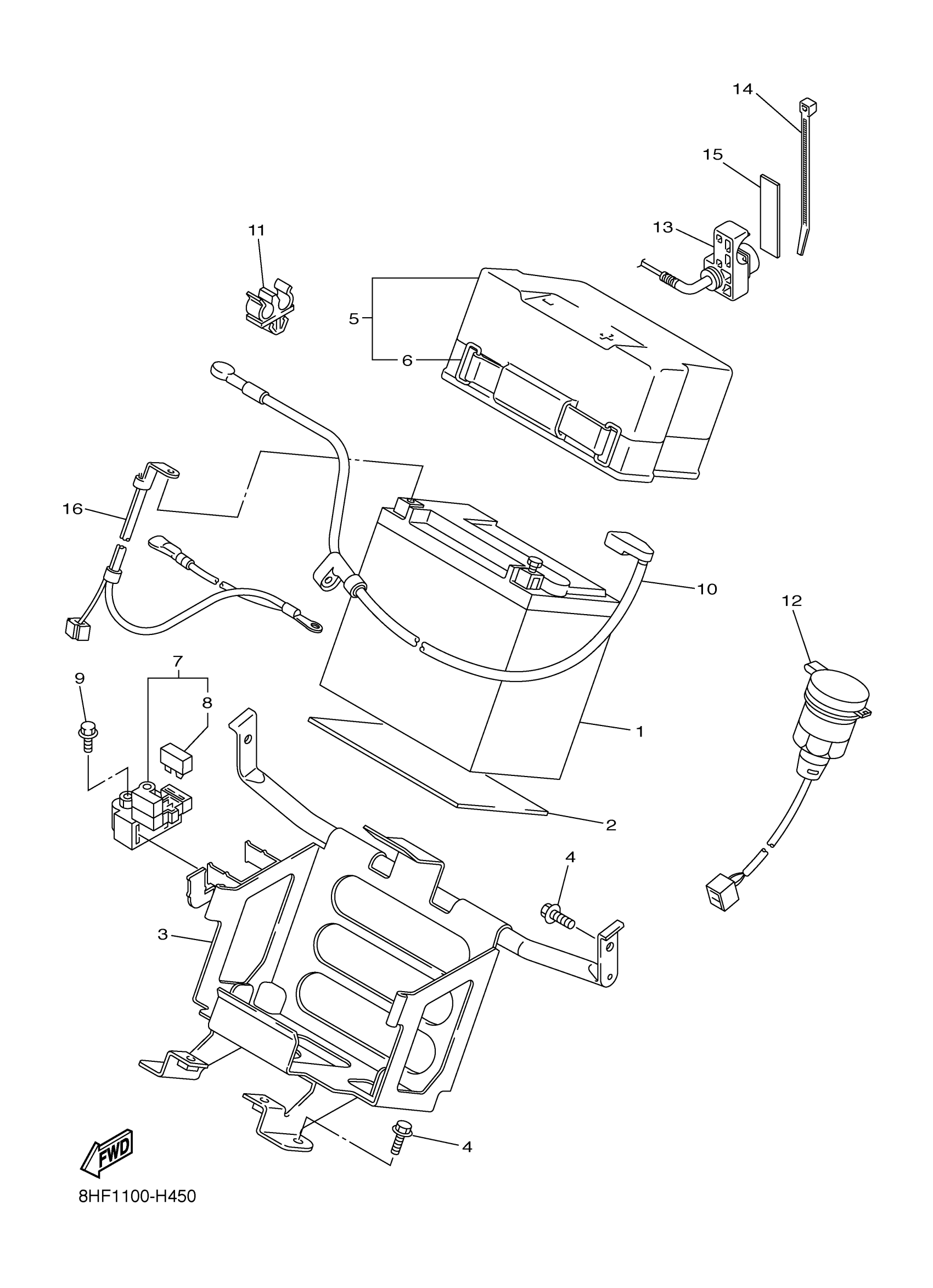

Yamaha RST90GTZR (RS VENTURE GT) 8HF3 2010 ELECTRICAL 2 Diagram

BATTERY ASSY (YUASA YTX20L-BS)

YTX-20LBS-00-00

Unavailable

SEAT, BATTERY

8FA-82122-00-00

Unavailable

BRACKET, BATTERY

8HF-2199G-00-00

Unavailable

BOLT, FLANGE

95814-08016-00

$9.49

COVER, BATTERY

8FA-82129-00-00

$41.99

BAND, BATTERY

8DM-82131-10-00

$16.49

STARTER RELAY ASSY (RC19-034)

5LW-81940-02-00

$117.99

FUSE (10A)

42X-82151-00-00

$4.32

BOLT, FLANGE

95022-06008-00

$8.49

WIRE, PLUS LEAD

8HF-82115-00-00

Unavailable

CLAMP(87A)

90464-08126-00

$1.54

TERMINAL COMP.

8FP-8254B-00-00

Unavailable

TERMINAL COMP.

8HF-8254B-00-00

$126.99

CLAMP(3XW)

90464-35132-00

$9.49

DAMPER

8HF-84527-00-00

Unavailable

WIRE, MINUS LEAD

8GM-82116-00-00

Unavailable
