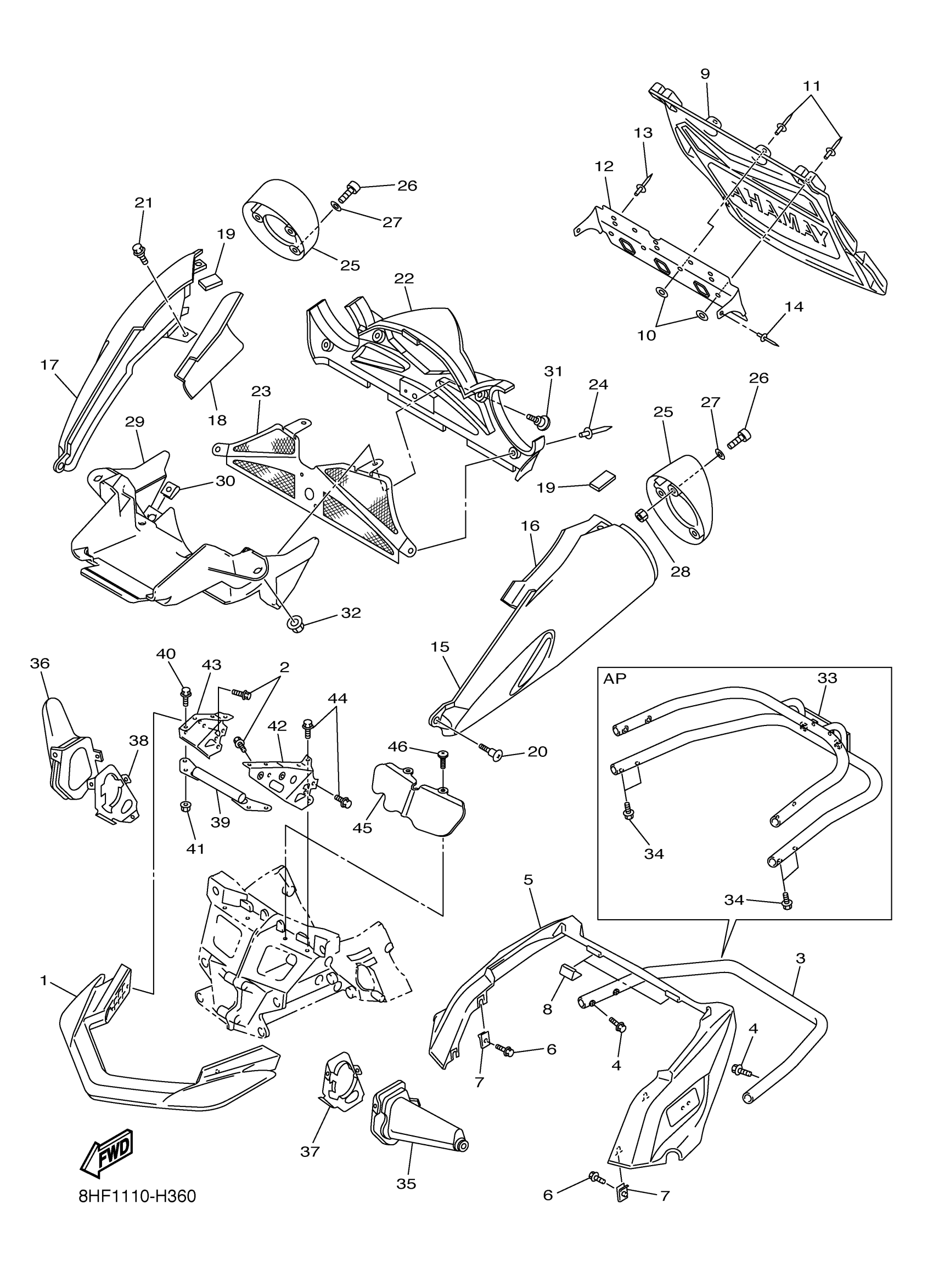

Yamaha RST90GTZR (RS VENTURE GT) 8HF3 2010 BUMPER Diagram
#
1
BUMPER, FRONT 1
8FA-77511-01-00
$250.99
2
BOLT, FLANGE(JN5)
95817-08016-00
$5.49
3
BUMPER, REAR 1
8FP-77541-01-00
Unavailable
4
BOLT, FLANGE(8AB)
95817-08020-00
$9.49
5
BUMPER, REAR 2
8FA-77542-00-00
Unavailable
6
BOLT, FLANGE
95817-06016-00
$2.75
7
NUT, SPRING(4ES)
90183-06069-00
Unavailable
8
TAPE 4
8FA-7717H-00-00
$1.25
9
FLAP
8GW-77595-00-00
Unavailable
10
WASHER, PLATE
90201-04027-00
$3.02
11
RIVET, BLIND
90267-47200-00
$2.75
12
STOPPER, FLAP
8GW-77596-01-00
Unavailable
13
RIVET, BLIND(3JB)
90267-48095-00
$9.49
14
RIVET, BLIND
90267-47195-00
$3.88
15
PROTECTOR 1
8FP-77551-01-33
Unavailable
16
LINING, SHROUD 1
8FP-77261-00-00
Unavailable
17
PROTECTOR 2
8FP-77552-01-33
Unavailable
18
LINING, SHROUD 2
8FP-77262-00-00
Unavailable
19
LINING, SHROUD 3
8FP-77263-00-00
Unavailable
20
SCREW, BINDING
90154-06009-00
Unavailable
21
BOLT
90109-06220-00
Unavailable
22
COVER, TAILLIGHT
8FP-84516-01-00
Unavailable
23
LOUVER 1
8FP-77441-00-00
Unavailable
24
RIVET, BLIND(8CH)
90267-47187-00
Unavailable
25
CAP
8FP-77517-00-00
Unavailable
26
BOLT,SOCKET HEAD
91314-06020-00
Unavailable
27
YBS66-6 WASHER, PLAIN
92990-06200-00
Unavailable
28
NUT, HEXAGON
95380-06600-00
Unavailable
29
BRACKET, TAILLIGHT
8FP-2117E-01-00
Unavailable
30
NUT, SPRING(4ES)
90183-06069-00
Unavailable
31
BOLT
90109-06220-00
Unavailable
32
NUT, U FLANGE
95604-06200-00
Unavailable
33
BUMPER, REAR 1
8ET-77541-01-00
Unavailable
34
BOLT, FLANGE
95814-08016-00
Unavailable
35
COVER 1
8FU-2198F-01-00
Unavailable
36
COVER 3
8FU-2198J-01-00
Unavailable
37
PLATE, STRG BRACKET 1
8FU-2195E-01-00
Unavailable
38
PLATE, STRG BRACKET 2
8FU-2195F-01-00
Unavailable
39
BRKT. ,FR. FOOD
8FP-21979-00-00
Unavailable
40
BOLT, FLANGE
95817-06014-00
Unavailable
41
NUT, FLANGE
95702-06500-00
Unavailable
42
BRACKET, FRONT
8FA-21949-00-00
Unavailable
43
BRACKET, FRONT BUMPER
8FA-21959-00-00
Unavailable
44
BOLT, FLANGE
95814-08016-00
Unavailable
45
COVER, FRONT
8FP-22865-00-00
Unavailable
46
BOLT
90109-06261-00
Unavailable
