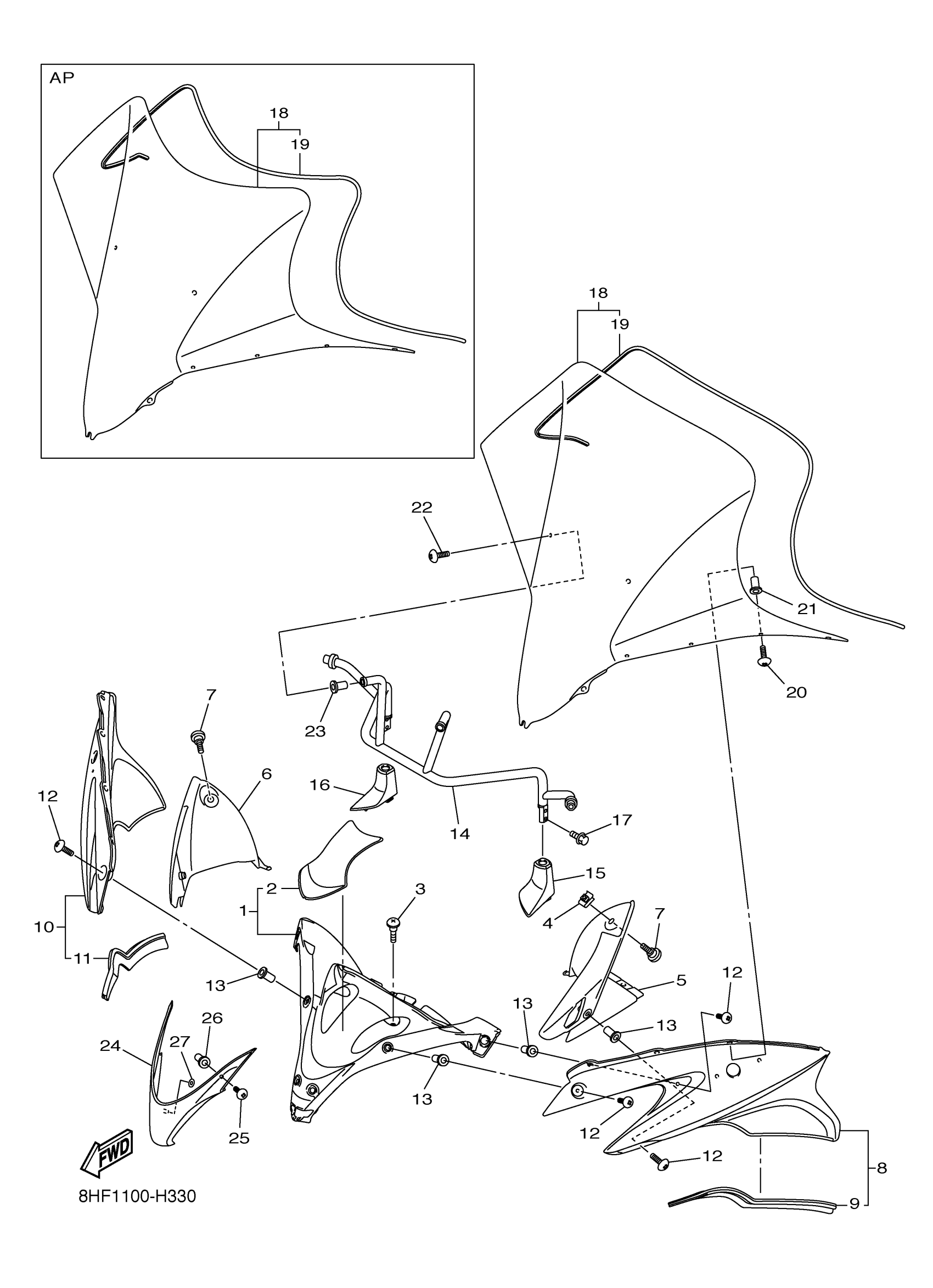

Yamaha RST90GTYS (RS VENTURE GT) 8HF10 2009 WINDSHIELD Diagram

#

Description
Price

1

COVER, HEADLIGHT ASSY

8FP-Y7725-00-00

$199.15

2

DAMPER 1

8HF-77198-00-00

Unavailable

3

SCREW, BINDING

90154-06009-00

$2.86

4

NUT, SPRING

90183-06100-00

$7.51

5

PLATE 1

8FP-77185-00-00

$43.87

6

PLATE 2

8FP-77186-00-00

$46.46

7

SCREW, BINDING

90154-06009-00

$2.86

8

FAIRING 2

8HF-K723A-00-00

Unavailable

9

. TRIM 1

8HF-K7165-00-00

Unavailable

10

FAIRING 3

8HF-K723B-00-00

$48.91

11

. TRIM 2

8HF-K7166-00-00

Unavailable

12

SCREW, ROUND HEAD(1UX)

90150-05024-00

$2.72

13

NUT(1KT)

90179-05523-00

$5.42

14

STAY 1

8HF-77125-00-00

$379.05

15

GROMMET 1

8HF-77431-00-00

Unavailable

16

GROMMET 2

8HF-77432-00-00

Unavailable

17

BOLT,SOCKET

91317-06016-00

Unavailable

18

WINDSHIELD COMP.

8HF-K7210-00-00

Unavailable

18

WINDSHIELD COMP.

8HF-K7210-10-00

Unavailable

19

TRIM, UPPER

8HF-K7213-00-00

Unavailable

19

TRIM, UPPER

8HF-K7213-00-00

Unavailable

20

SCREW(3YF)

90149-05299-00

Unavailable

21

NUT(1KT)

90179-05523-00

$5.42

22

SCREW, ROUND HEAD(1UX)

90150-05024-00

$2.72

23

NUT

90179-05003-00

Unavailable

24

FAIRING

8HF-K7231-00-00

$4.04

25

SCREW, ROUND HEAD(1UX)

90150-05024-00

$2.72

26

NUT(1KT)

90179-05523-00

$5.42

27

NUT, SPRING

90183-06071-00

$1.49
