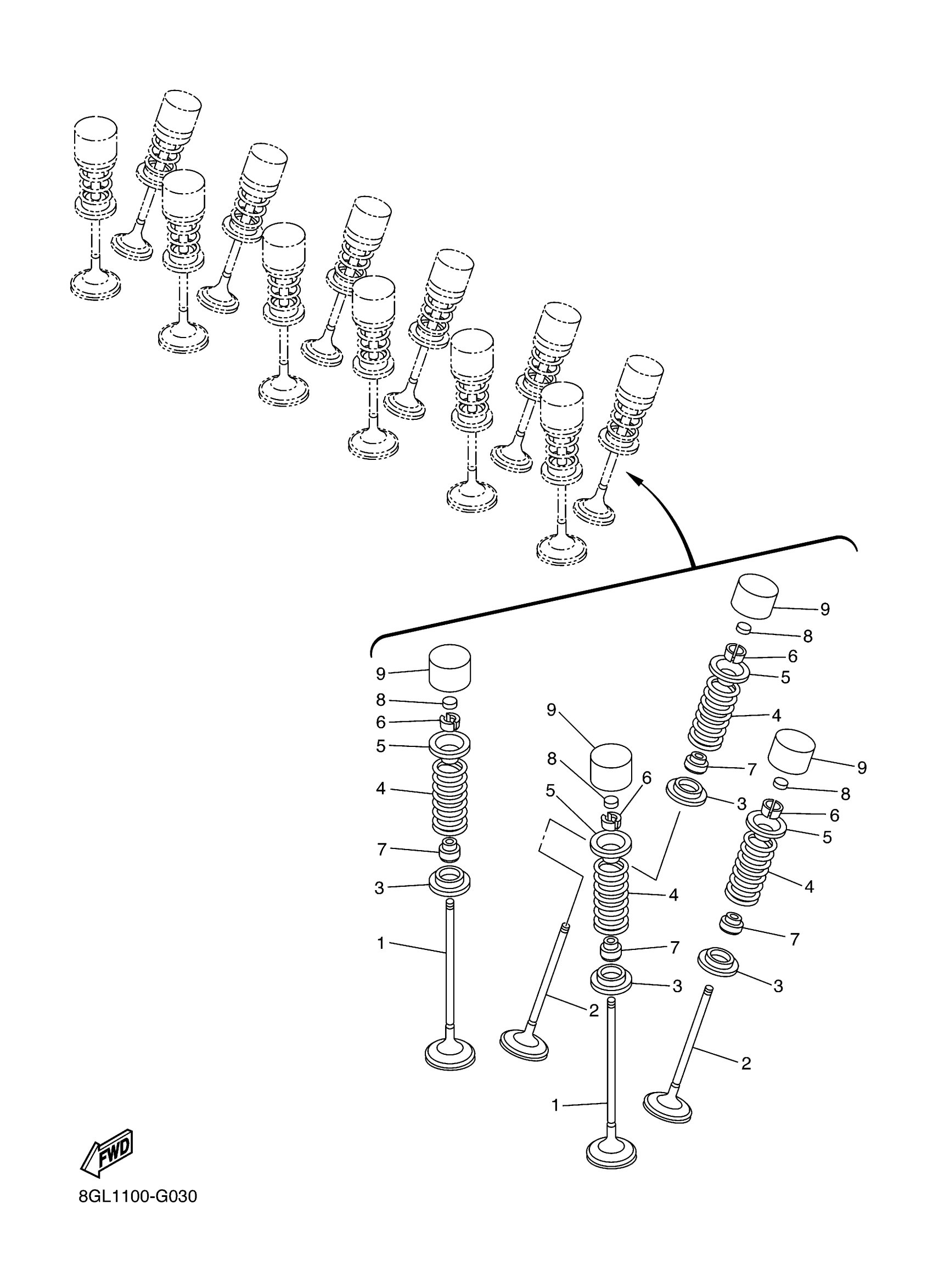

Yamaha RST90GTYS (RS VENTURE GT) 8HF10 2009 VALVE Diagram

#

Description
Price

1

VALVE, INTAKE

8GL-12111-10-00

$25.69

2

VALVE, EXHAUST

8GL-12121-10-00

$45.38

3

SEAT, VALVE SPRING

3D7-12116-00-00

$5.06

4

SPRING, VALVE INNE

8HF-12113-01-00

$6.74

5

RETAINER, VALVE SPRING

3D7-12117-00-00

$5.11

6

COTTER, VALVE

1WG-12118-00-00

$5.50

7

SEAL, VALVE STEM

4TE-12119-00-00

$12.02

8

PAD, ADJUSTING 2 (1.20)

1HX-12168-00-00

$18.51

8

PAD, ADJUSTING 2 (1.25)

1HX-12168-20-00

$11.15

8

PAD, ADJUSTING 2 (1.30)

1HX-12168-40-00

$12.32

8

PAD, ADJUSTING 2 (1.35)

1HX-12168-60-00

$11.85

8

PAD, ADJUSTING 2 (1.40)

1HX-12168-80-00

$18.49

8

PAD, ADJUSTING 2 (1.45)

1HX-12168-A0-00

$12.64

8

PAD, ADJUSTING 2 (1.50)

1HX-12168-F0-00

$18.21

8

PAD, ADJUSTING 2 (1.55)

1HX-12168-H1-00

$11.63

8

PAD, ADJUSTING 2 (1.60)

1HX-12168-K1-00

$19.45

8

PAD, ADJUSTING 2 (1.65)

1HX-12168-M1-00

$25.85

8

PAD, ADJUSTING 2 (1.70)

1HX-12168-R1-00

$19.45

8

PAD, ADJUSTING 2 (1.75)

1HX-12168-U1-00

$16.30

8

PAD, ADJUSTING 2 (1.80)

1HX-12168-W1-00

$17.41

8

PAD, ADJUSTING 2 (1.85)

1HX-12168-Y1-00

$19.54

8

PAD, ADJUSTING 2 (1.90)

1HX-12169-11-00

$46.67

8

PAD, ADJUSTING 2 (1.95)

1HX-12169-31-00

$20.58

8

PAD, ADJUSTING 2 (2.00)

1HX-12169-50-00

$19.65

8

PAD, ADJUSTING 2 (2.05)

1HX-12169-70-00

$19.94

8

PAD, ADJUSTING 2 (2.10)

1HX-12169-90-00

$12.00

8

PAD, ADJUSTING 2 (2.15)

1HX-12169-E0-00

$11.85

8

PAD, ADJUSTING 2 (2.20)

1HX-12169-G0-00

$11.06

8

PAD, ADJUSTING 2 (2.25)

1HX-12169-J0-00

$10.48

8

PAD, ADJUSTING 2 (2.30)

1HX-12169-L0-00

$15.88

8

PAD, ADJUSTING 2 (2.35)

1HX-12169-N0-00

$13.77

8

PAD, ADJUSTING 2 (2.40)

1HX-12169-T0-00

$17.05

9

LIFTER, VALVE

4C8-12153-09-00

$56.13

9

LIFTER, VALVE

4C8-12153-11-00

$25.18
