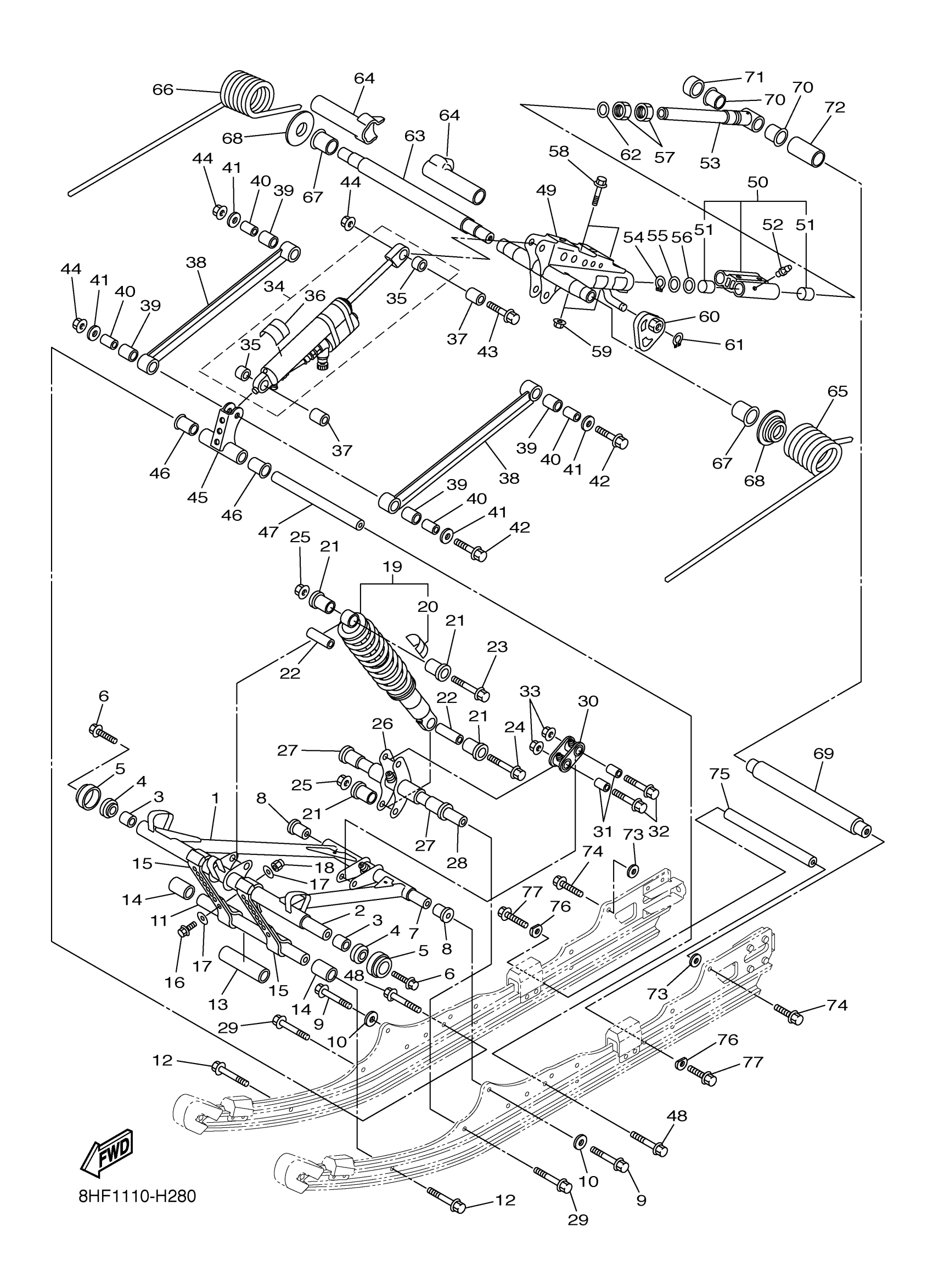

Yamaha RST90GTYS (RS VENTURE GT) 8HF10 2009 TRACK SUSPENSION 2 Diagram

#

Description
Price

1

ARM, PIVOT 1

8HF-47331-00-00

Unavailable

2

SHAFT 1

8HF-47465-00-00

$96.22

3

BUSH, FORMED

90383-23001-00

$38.80

4

OIL SEAL(37F)

93108-37011-00

$5.20

5

SPACER

8HF-47341-00-00

$22.58

6

BOLT

90109-10032-00

$5.86

7

SHAFT 4

8ES-47486-00-00

$36.48

8

COLLAR

90387-10022-00

$16.62

9

BOLT, FLANGE

90105-10209-00

$6.82

10

WASHER, PLATE(JN9)

90201-100S2-00

$6.14

11

SHAFT 3

8ES-47485-00-00

$50.74

12

BOLT, FLANGE

90105-10209-00

$6.82

13

COLLAR

90387-19002-00

$5.82

14

COLLAR

90387-19001-00

$6.82

15

STOPPER 1

8HF-47495-00-00

$56.20

16

BOLT, HEXAGON

97017-06025-00

$2.98

17

WASHER, PLATE

90201-06081-00

$6.18

18

NUT, NYLON

95707-06300-00

$3.20

19

SHOCK ABSORBER 2

8HF-47481-00-00

$562.99

20

LABEL, WARNING

4AA-22259-60-00

$6.02

21

BUSH, SOLID(8CM)

90381-14101-00

$7.48

22

COLLAR (8U7)

90387-105G5-00

$7.35

23

BOLT, FLANGE (8V9)

95812-10045-00

$3.54

24

BOLT(88R)

90101-10738-00

$6.28

25

NUT, S/L FLANGE

95602-10200-00

$2.29

26

BRACKET, ARM PIVOT

8HF-47349-01-00

$58.88

27

BUSH

90386-20001-00

$8.97

28

SHAFT 5

8GN-47487-00-00

$91.60

29

BOLT, FLANGE

90105-10209-00

$6.82

30

BRACKET 2

8FK-47416-01-00

$49.37

31

COLLAR

90387-10024-00

$18.18

32

BOLT, FLANGE (8V9)

95812-10045-00

$3.54

33

NUT, S/L FLANGE

95602-10200-00

$2.29

34

SHOCK ABSORBER

8HF-47480-01-00

$849.99

35

BUSH, BIMETAL FORMED(39K)

90384-18190-00

$10.68

36

LABEL, WARNING

4AA-22259-60-00

$6.02

37

COLLAR

90387-10023-00

$17.41

38

ROD, RELAY

8HF-47494-00-00

$42.29

39

BUSH

90386-16001-00

$9.88

40

COLLAR (8K4)

90387-101A1-00

$3.78

41

WASHER, PLATE

90201-10043-00

$1.88

42

95812-10090

95812-10090-00

$3.49

43

BOLT, FLANGE

95812-10040-00

$7.42

44

NUT, S/L FLANGE

95602-10200-00

$2.29

45

BRACKET, ARM PIVOT

8FK-47349-10-00

$44.14

46

BUSH

90386-20001-00

$8.97

47

SHAFT 5

8ES-47487-00-00

$43.08

48

BOLT, FLANGE

90105-10209-00

$6.82

49

ARM, PIVOT 2

8HF-47332-00-00

$281.80

50

STOPPER, CONT. 1

8ES-4745D-00-00

$128.48

51

BUSH, SOLID

90380-24001-00

$8.38

52

NIPPLE, GREASE

93700-06M03-00

$7.15

53

ROD, CONTROL 1

8HF-4745A-00-00

$132.38

54

CIRCLIP

93410-24092-00

$1.78

55

WASHER, PLATE

90201-24015-00

$5.74

56

WASHER, PLATE

90202-25001-00

$0.91

57

STOPPER, ADJUSTING NUT

8ES-48142-00-00

$27.05

58

BOLT, FLANGE(87Y)

95817-10055-00

$4.54

59

NUT, S/L FLANGE

95602-10200-00

$2.29

60

HOOK 2

8ES-47447-00-00

$17.94

61

CIRCLIP(13H)

99009-14400-00

$2.48

62

WASHER, PLATE

90202-25002-00

$9.71

63

SHAFT 2

8FM-47475-01-00

$237.20

64

PROTECTOR

8HF-47445-00-00

$29.66

65

SPRING, REAR 1(K=2200NMM/DEG)

8HF-47473-00-00

Unavailable

66

SPRING, REAR 2

8HF-47474-00-00

$301.74

67

BUSH, SOLID(8CJ)

90381-28108-00

$12.18

68

PLATE, GUIDE

8ES-47467-00-00

$16.89

69

SHAFT, PIVOT

8HF-47337-00-00

$66.57

70

BUSH

90386-25001-00

$5.60

71

COLLAR

90387-26002-00

$29.63

72

COLLAR

90387-26003-00

$5.78

73

WASHER, PLATE

90201-10028-00

$5.72

74

BOLT, FLANGE

95817-10030-00

$6.17

75

SHAFT 4

8GL-47486-00-00

$90.83

76

SPACER

8GL-47341-00-00

$13.22

77

BOLT, FLANGE

95817-10030-00

$6.17
