- RST90GTYS (RS VENTURE GT) 8HF10 2009
TRACK SUSPENSION 1

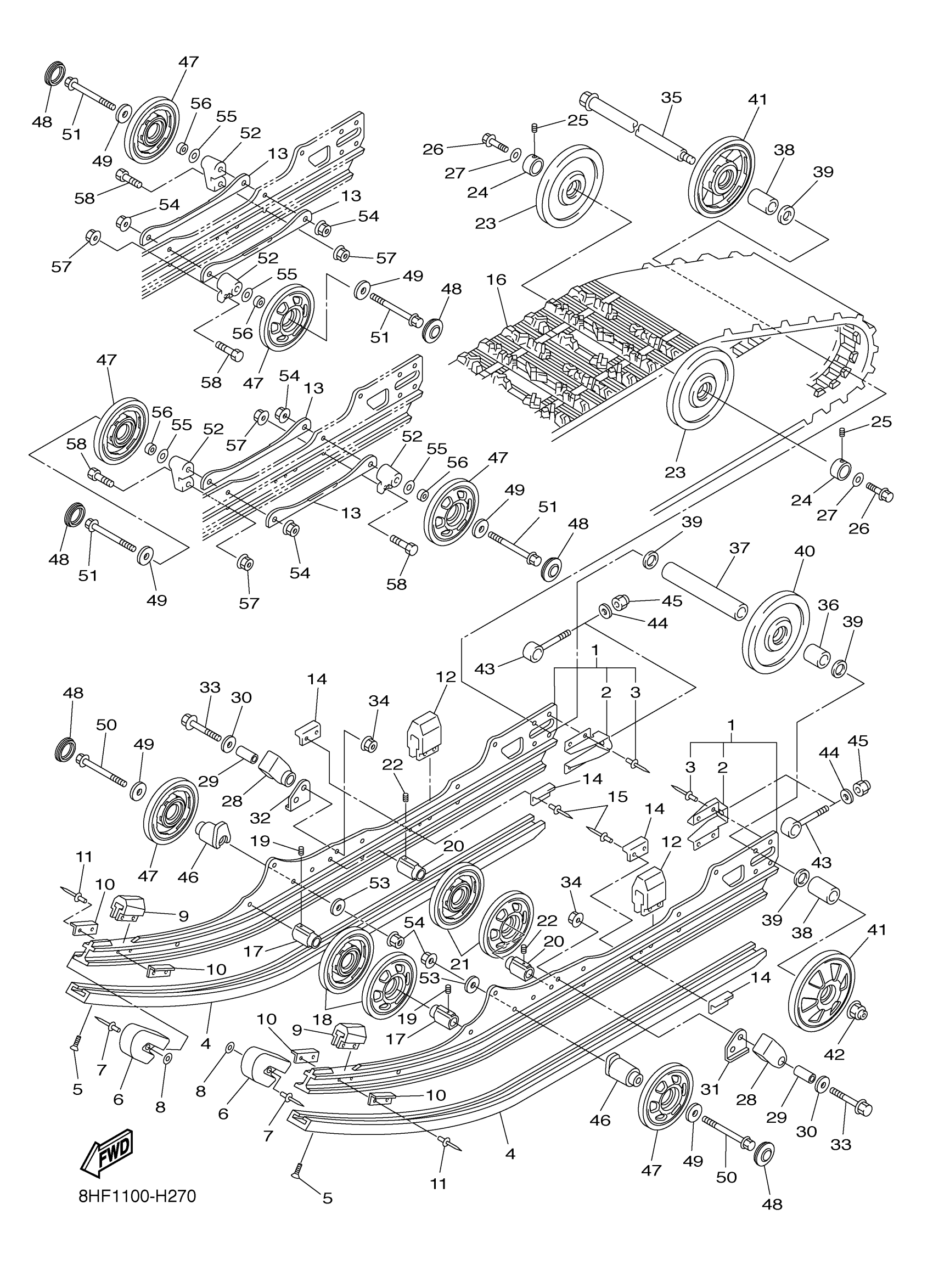

Yamaha RST90GTYS (RS VENTURE GT) 8HF10 2009 TRACK SUSPENSION 1 Diagram
#
1
FRAME, SLIDING
8HF-W4741-00-00
Unavailable
2
BRACKET
8DM-4741B-00-00
$45.99
3
RIVET
8V0-47468-00-00
$10.49
4
FX NYTRO 162" HP WIDE HYFAX
SMA-8HR92-00-BK
Unavailable
5
SCREW, CROSSRECESS (8G6)
90151-06005-00
$9.49
6
RUNNER, SLIDING 2
8ED-47422-00-00
$46.99
7
RIVET BLIND
90267-48194-00
$3.28
8
WASHER, PLATE(8CM)
90201-047R8-00
$3.02
9
DAMPER 1
8ES-47456-00-00
$6.99
10
PLATE, DAMPER
8K2-47458-01-00
$4.77
11
RIVET, BLIND
90267-48199-00
$3.76
12
DAMPER 2
8FP-47457-00-00
Unavailable
13
FRAME, SLIDING C
8HF-4741C-00-00
$163.99
14
PLATE, DAMPER
8AX-47458-00-00
$10.99
15
RIVET, BLIND
90267-48199-00
$3.76
16
TRACK ASSY
8ET-47110-20-00
Unavailable
17
COLLAR
8ES-47319-01-00
Unavailable
18
WHEEL BLK 130MM
SMA-8FP38-01-BK
Unavailable
19
BOLT, SET (8K2)
90113-06039-00
Unavailable
20
COLLAR
8ES-47319-01-00
Unavailable
21
WHEEL BLK 130MM
SMA-8FP38-01-BK
Unavailable
22
BOLT, SET (8K2)
90113-06039-00
Unavailable
23
GUIDE WHEEL ASSY
8CR-47550-00-00
Unavailable
24
COLLAR 1
8ES-47365-00-00
Unavailable
25
BOLT, SET (8K2)
90113-06039-00
Unavailable
26
BOLT
90109-10032-00
Unavailable
27
WASHER, PLATE
90201-10039-00
Unavailable
28
HOOK 1
8HF-47446-00-00
Unavailable
29
COLLAR (128-25183-00)
90387-10081-00
Unavailable
30
WASHER, PLATE(8CM)
90201-100S0-00
Unavailable
31
WASHER 1
8HF-47374-00-00
Unavailable
32
WASHER 2
8HF-47375-00-00
Unavailable
33
BOLT, FLANGE(87Y)
95817-10055-00
Unavailable
34
NUT, S/L FLANGE
95602-10200-00
Unavailable
35
REAR AXLE COMP.
8L8-47520-10-00
Unavailable
36
COLLAR
90387-20015-00
Unavailable
37
COLLAR
90387-20016-00
Unavailable
38
COLLAR
90387-20019-00
Unavailable
39
WASHER, PLATE
90201-20022-00
Unavailable
40
GUIDE WHEEL ASSY
8CR-47550-10-00
Unavailable
41
REAR WHEEL BLK 178MM
SMA-8FP38-02-BK
Unavailable
42
NUT, U FLANGE
95602-14200-00
Unavailable
43
COLLAR 3
8DM-47479-00-00
Unavailable
44
WASHER, PLATE
92990-10600-00
Unavailable
45
NUT, NYLON
95707-10300-00
Unavailable
46
BRACKET 7
8ES-47419-00-00
Unavailable
47
WHEEL BLK 130MM
SMA-8FP38-01-BK
Unavailable
48
CAP, WHEEL
8HF-47317-00-00
Unavailable
49
WASHER, PLATE
90201-10038-00
Unavailable
50
BOLT, FLANGE
95812-10080-00
Unavailable
51
BOLT, FLANGE
90105-10150-00
Unavailable
52
BRACKET 7
8CM-47419-30-00
Unavailable
53
WASHER, PLATE (17K)
90201-106F2-00
Unavailable
54
NUT, S/L FLANGE
95602-10200-00
Unavailable
55
WASHER, PLATE(8CM)
90201-100S0-00
Unavailable
56
COLLAR
90387-10031-00
Unavailable
57
NUT, SELF-LOCKING
95602-08200-00
Unavailable
58
BOLT(8CM)
90101-08774-00
Unavailable
