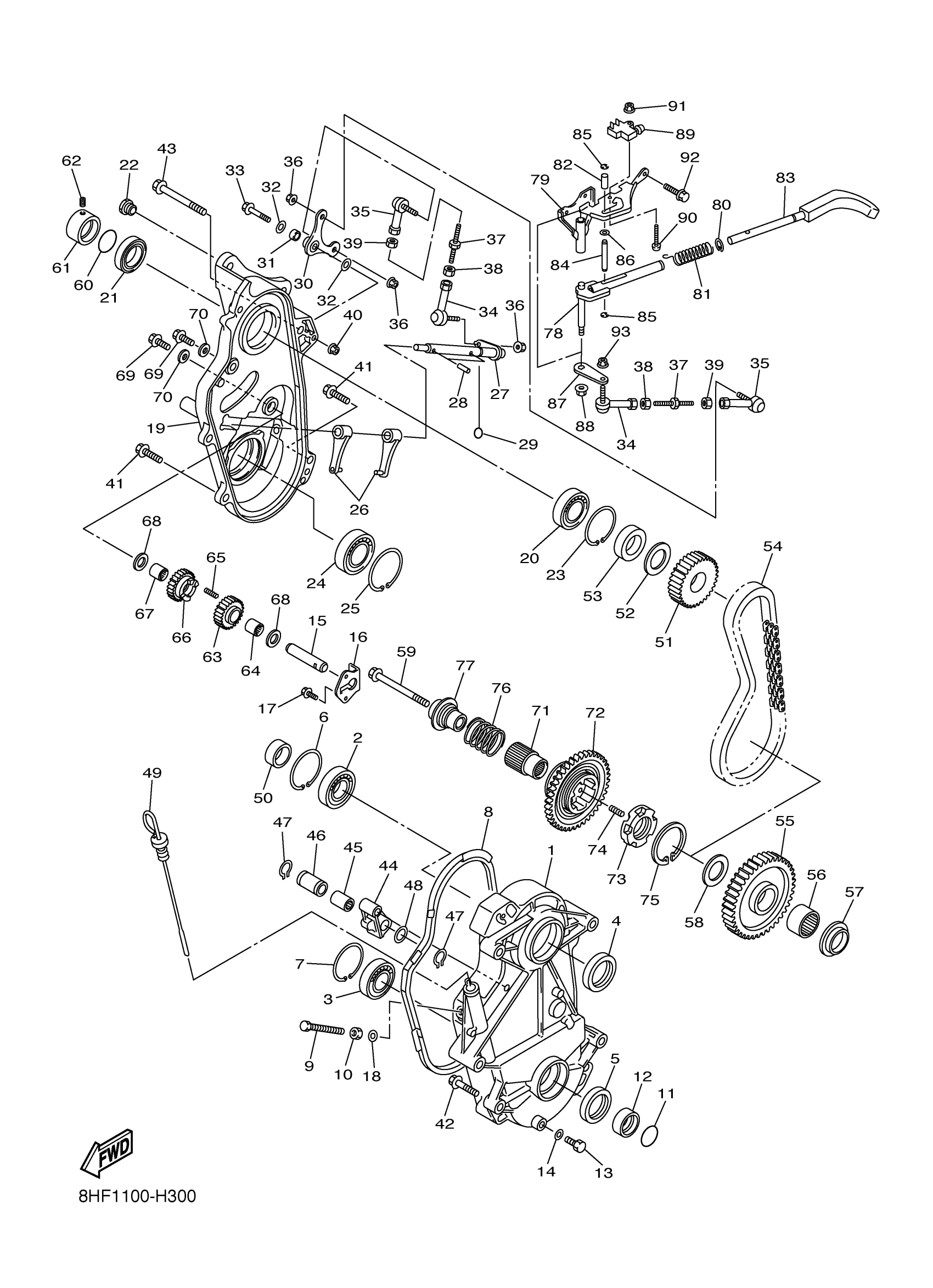

Yamaha RST90GTYS (RS VENTURE GT) 8HF10 2009 TRACK DRIVE 2 Diagram

#

Description
Price

1

HOUSING, CHAIN

8FP-47541-10-00

Unavailable

2

BEARING (5X5)

93306-20627-00

$66.08

3

BEARING

93306-205A9-00

$51.25

4

OIL SEAL

93102-30012-00

$29.09

5

OIL SEAL

93102-35010-00

$19.52

6

CIRCLIP(MF1)

99009-62500-00

$6.23

7

CIRCLIP(26H)

99009-52500-00

$10.68

8

RING, HOUSING

8FP-47558-10-00

$67.38

9

BOLT, HEXAGON (8F3)

90101-10357-00

Unavailable

10

NUT (682)

95380-10700-00

$5.78

11

O-RING (169)

93210-25071-00

$7.51

12

COLLAR(8CJ)

90387-2508C-00

$39.00

13

BOLT, HEXAGON

97017-08016-00

$6.20

14

WASHER, SEAL(8AB)

90210-08017-00

$6.91

15

SHAFT, 1

8CW-1761A-00-00

$58.02

16

PLATE

8CW-47591-00-00

$11.85

17

BOLT, FLANGE

95817-06016-00

$1.49

18

WASHER, PLATE(56J)

90201-106H5-00

$7.05

19

CAP, HOUSING

8HF-47543-00-00

$316.92

20

BEARING

93306-20532-00

$56.05

21

OIL SEAL

93102-35473-00

$28.01

22

NUT(8CJ)

90179-10679-00

$6.71

23

CIRCLIP(26H)

99009-52500-00

$10.68

24

BEARING

93306-00711-00

$49.06

25

CIRCLIP(MF1)

99009-62500-00

$6.23

26

FORK, SHIFT 1

8GL-18511-01-00

$41.30

27

SHAFT

8FR-18197-00-00

$34.03

28

PIN, SPRING(8DA)

91609-50022-00

$6.78

29

O-RING (328)

93210-12131-00

$6.78

30

LEVER

8FR-18198-00-00

$22.05

31

COLLAR

90387-06197-00

$6.17

32

WASHER, PLATE

90201-06033-00

$2.74

33

BOLT, FLANGE

95817-06040-00

$4.54

34

JOINT, UNIVERSAL 2

J45-23845-00-00

$42.57

35

JOINT 2

88T-18157-00-00

$36.11

36

NUT, U FLANGE

95604-06200-00

$2.35

37

ROD, SHIFT

26H-18115-00-00

$13.22

38

NUT, HEXAGON

95380-06600-00

$4.13

39

NUT (2H9)

90170-06228-00

$5.20

40

NUT, U FLANGE

95604-06200-00

$2.35

41

BOLT, FLANGE

95817-08035-00

$6.68

42

BOLT, FLANGE(4GB)

95817-10045-00

$4.52

43

BOLT,FLANGE

95817-10090-00

$6.86

44

HOLDER

8ES-47613-00-00

$41.32

45

BEARING

93311-32685-00

$62.54

46

COLLAR

90387-22005-00

$30.49

47

CIRCLIP

99009-26400-00

$6.94

48

WASHER, PLATE

90201-266P2-00

$2.62

49

LEVEL, OIL

8FA-47546-01-00

$17.17

50

COLLAR

90387-30005-00

$19.31

51

SPROCKET, CHAIN DRIVE

8FA-17682-30-00

$47.92

52

WASHER, CONICAL SPRING

90208-26002-00

$13.83

53

COLLAR

90387-26007-00

$29.28

54

CHAIN

94890-09070-00

$139.38

55

SPROCKET, CHAIN DRIVEN

8FB-47587-90-00

$176.35

56

BEARING, CYLINDRICAL(8DA)

93317-33179-00

$43.08

57

COLLAR(8DA)

90387-2008G-00

$23.71

58

WASHER, PLATE(8DA)

90201-320S3-00

$7.34

59

BOLT, FLANGE

90105-10369-00

$10.05

60

O-RING (36R)

93210-25642-00

$8.66

61

COLLAR

8HF-47536-00-00

$25.80

62

BOLT, SET

90113-06006-00

$3.60

63

SPROCKET, DRIVE

8FB-17692-00-00

$81.86

64

BEARING, CYLINDRICAL(8DA)

93317-21578-00

$37.81

65

SPRING COMPRESSION278185450000

90501-06022-00

$6.17

66

REVERSE GEAR SUB-ASSY 1 (RGEAR

8CW-W1714-00-00

$251.37

67

BEARING, CYLINDRICAL(8DA)

93317-21578-00

$37.81

68

WASHER PLATE (3L6)

90201-16245-00

$8.51

69

BOLT, FLANGE

95817-06016-00

$1.49

70

WASHER, SEAL (7G5)

90210-06006-00

$5.72

71

JOURNAL 1

8CW-47571-00-00

$150.66

72

GEAR, REVERSE WHEEL 1

8CW-17243-00-00

$304.40

73

DOG, TRANSMISSION SHIFT

8CW-17492-00-00

$193.49

74

SPRING, COMPRESSION(8DA)

90501-066J5-00

$1.75

75

CIRCLIP(8DA)

93440-39175-00

$19.00

76

SPRING, COMPRESSION(8FA1)

90501-260A0-00

$4.74

77

COLLAR

8GL-48566-00-00

$75.78

78

ARM, SHIFT

8ER-18112-01-00

$84.31

79

GUIDE, PLATE STOPPER

8ER-18161-00-00

$56.42

80

CIRCLIP(13H)

99009-18400-00

$6.68

81

SPRING, COMPRESSION (8FA1)

90501-130A0-00

$2.20

82

COLLAR (8FA1)

90387-06059-00

$26.74

83

KNOB, SHIFT LEVER

8FR-18174-01-00

$112.11

84

PIN (8FA1)

90249-06002-00

$12.22

85

CIRCLIP (J10)

93410-06053-00

$5.62

86

WASHER, PLATE (8U7)

90201-067F9-00

$2.78

87

PLATE, SHIFT ARM

8ER-1811A-01-00

$5.32

88

NUT,SELF-LOCKING

95607-06200-00

$10.25

89

SWITCH

J51-82817-00-00

$121.26

90

SCREW, BINDING

98907-04020-00

$0.42

91

NUT, U (7LY)

95617-04100-00

$6.92

92

BOLT, FLANGE(8AB)

95817-08020-00

$7.00

93

NUT, U FLANGE

95604-06200-00

$2.35
