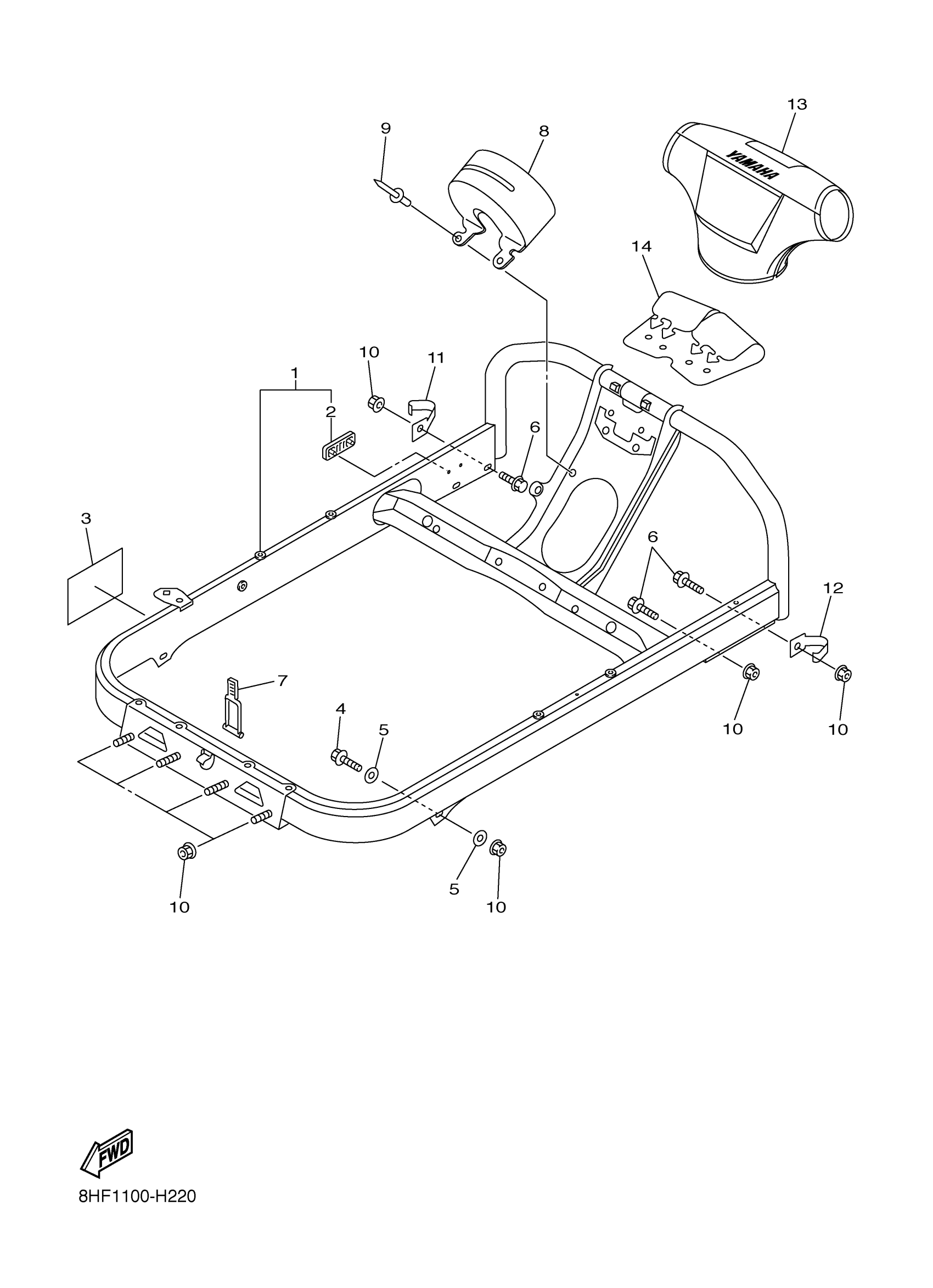

Yamaha RST90GTYS (RS VENTURE GT) 8HF10 2009 STEERING GATE Diagram

#

Description
Price

1

STEERING GATE COMP.

8HF-23870-00-00

$1,060.99

2

BRACKET

8FA-83614-00-00

$4.11

3

LABEL, CAUTION

8FA-2389C-E0-00

$2.45

4

BOLT, WASHER BASED(JN9)

90105-081A7-00

$6.46

5

WASHER (853)

90201-08326-00

$6.17

6

BOLT, FLANGE(6TA)

95817-08030-00

$6.17

7

LATCH

8FA-2389E-00-00

$10.46

8

CASE 1

8FP-2384G-00-00

$25.62

9

RIVET

90269-06001-00

$5.42

10

NUT, SELF-LOCKING

95602-08200-00

$2.77

11

CLAMP

90462-10022-00

$5.58

12

CLAMP

90462-10035-00

$6.02

13

PAD, STEERING

8HF-23815-00-00

Unavailable

14

COVER, STEERING

8HF-23818-00-00

Unavailable
