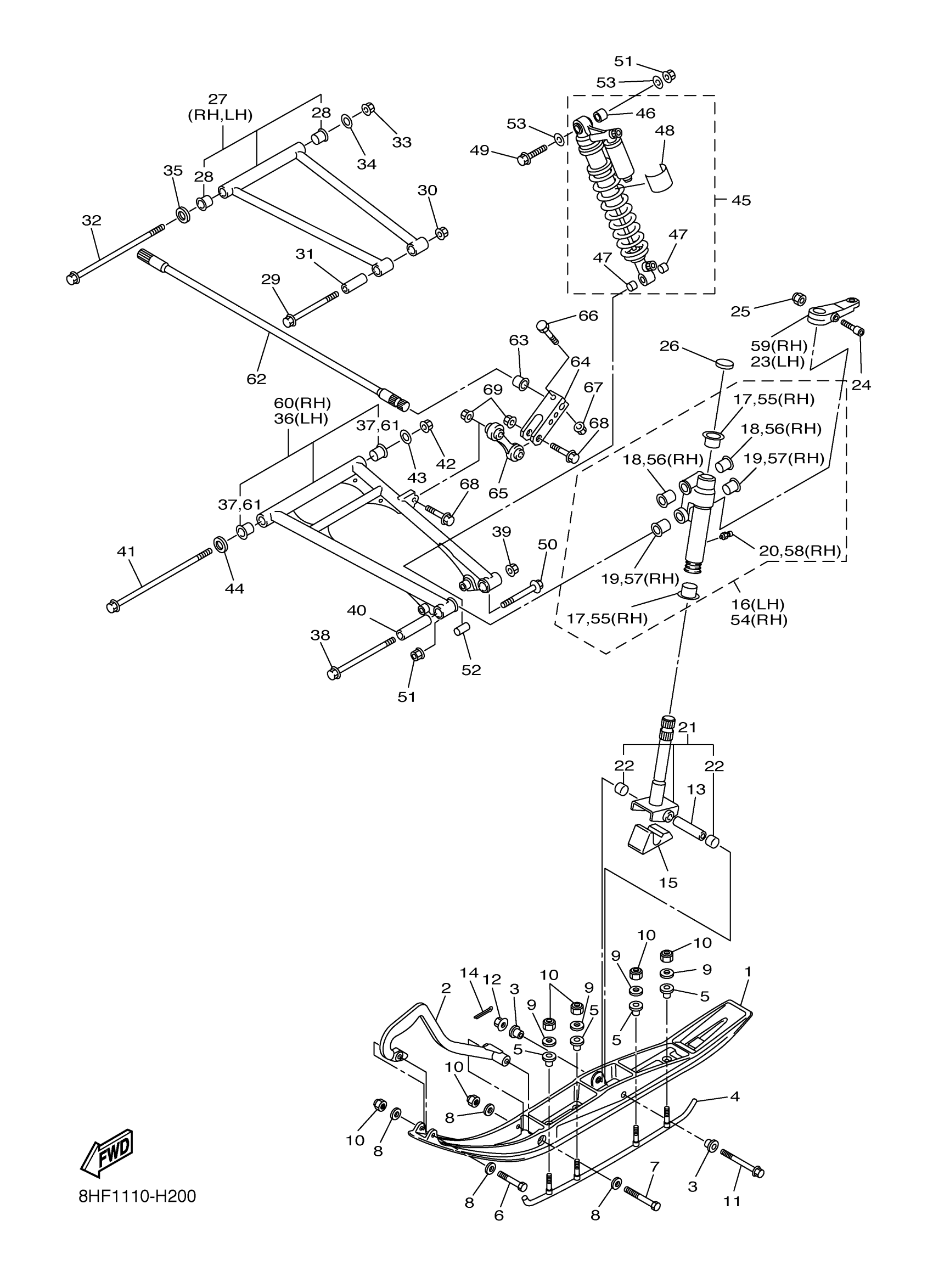

Yamaha RST90GTYS (RS VENTURE GT) 8HF10 2009 SKI Diagram

#

Description
Price

1

SKI 1

8ES-23711-00-BK

Unavailable

2

BLACK 8DM HANDLE PLASTIC

8DM-23712-00-BK

Unavailable

3

. COLLAR 1

8EX-F3754-00-00

Unavailable

4

SKI RUNNER KIT

SMA-F3731-EK-00

Unavailable

5

BUSH, SKI 1

8EK-F3751-00-00

$5.66

6

BOLT, HEXAGON

97017-08055-00

$6.88

7

BOLT, HEXAGON

97027-08100-00

$4.55

8

WASHER, PLATE (3L7)

90201-08784-00

$2.54

9

WASHER, PLATE(3XP)

90201-086P8-00

$4.35

10

NUT, NYLON

95717-08300-00

$2.57

11

BOLT, FLANGE

90105-10070-00

$9.46

12

NUT, SELF-LOCKING(JN5)

95607-10200-00

$3.32

13

COLLAR

90387-1012H-00

$20.68

14

PIN, COTTER

91490-20025-00

$1.31

15

STOPPER 1

8CR-23743-10-00

$22.97

16

STEERING KNUCKLE ASSY (LEFT)

8ES-23501-10-00

$275.85

17

BUSH, SOLID

90381-25115-00

$8.09

18

BUSH, SOLID

90381-15N50-00

$5.22

19

BUSH, SOLID

90381-18N51-00

$9.77

20

NIPPLE, GREASE

93700-06M03-00

$7.15

21

COLUMN, SKI ASSY

8ES-23803-00-00

$193.57

22

BUSH, BIMETAL FORMED

90384-16N51-00

$4.35

23

ARM, OUTSIDE 1

8FA-23851-00-00

$112.58

24

BOLT, HEXAGON SOCKET HEAD

90110-08N53-00

$3.45

25

NUT, SELF-LOCKING

90185-08169-00

$7.09

26

CAP, CASE

3YK-22472-40-00

$4.63

27

FRONT UPPER ARM COMP.

8JA-23540-00-00

$210.48

28

BUSH, SOLID

90381-15N50-00

$5.22

29

BOLT, FLANGE

90105-10N51-00

$6.89

30

NUT, SELF-LOCKING(JN5)

95607-10200-00

$3.32

31

COLLAR

90387-10099-00

$17.69

32

BOLT, FLANGE

90105-10N54-00

$39.60

33

NUT, SELF-LOCKING(JN5)

95607-10200-00

$3.32

34

WASHER, PLATE (17K)

90201-106F2-00

$7.66

35

WASHER

90209-15N50-00

$1.58

36

FRONT LOWER ARM COMP. (LEFT)

8JA-23570-00-00

Unavailable

37

BUSH, SOLID

90381-16N51-00

$7.52

38

BOLT, FLANGE

90105-12N54-00

$14.18

39

NUT, U FLANGE

95607-12200-00

$5.43

40

COLLAR

90387-12N54-00

$16.71

41

BOLT, FLANGE

90105-10N55-00

$51.09

42

NUT, SELF-LOCKING(JN5)

95607-10200-00

$3.32

43

WASHER, PLATE (17K)

90201-106F2-00

$7.66

44

WASHER

90209-15N50-00

$1.58

45

ABSORBER ASSY 1

8HF-2376A-00-00

$692.99

46

DAMPER, BUSH B

8FA-2331R-00-00

$10.38

47

BUSH, BIMETAL FORMED

90384-15N51-00

$6.37

48

LABEL, WARNING

4AA-22259-60-00

$6.02

49

BOLT, WASHER BASED (4K0)

90105-10169-00

$9.98

50

BOLT, WASHER BASED(59V)

90105-10392-00

$8.40

51

NUT, SELF-LOCKING(JN5)

95607-10200-00

$3.32

52

COLLAR

90387-10N59-00

$12.34

53

WASHER, PLATE (17K)

90201-106F2-00

$7.66

54

STEERING KNUCKLE ASSY (RIGHT)

8ES-23502-10-00

$392.12

55

BUSH, SOLID

90381-25115-00

$8.09

56

BUSH, SOLID

90381-15N50-00

$5.22

57

BUSH, SOLID

90381-18N51-00

$9.77

58

NIPPLE, GREASE

93700-06M03-00

$7.15

59

ARM, OUTSIDE 2

8FA-23852-00-00

$110.66

60

FRONT LOWER ARM COMP. (RIGHT)

8JA-23580-00-00

$377.66

61

BUSH, SOLID

90381-16N51-00

$7.52

62

BAR, STABILIZER FRONT

8FG-2386E-00-00

$128.69

63

BUSH, STABILIZER FRONT

8FG-2386G-00-00

$2.91

64

ARM, STABILIZER

8FG-2386L-00-00

$65.52

65

JOINT, STABILIZER 1

8ES-2385L-00-00

$103.15

66

BOLT, HEXAGON (538)

90101-06278-00

$1.82

67

NUT, U FLANGE

95604-06200-00

$2.35

68

BOLT, FLANGE(4FM)

95814-08030-00

$6.28

69

NUT, U FLANGE(4KG)

95604-08200-00

$2.17
