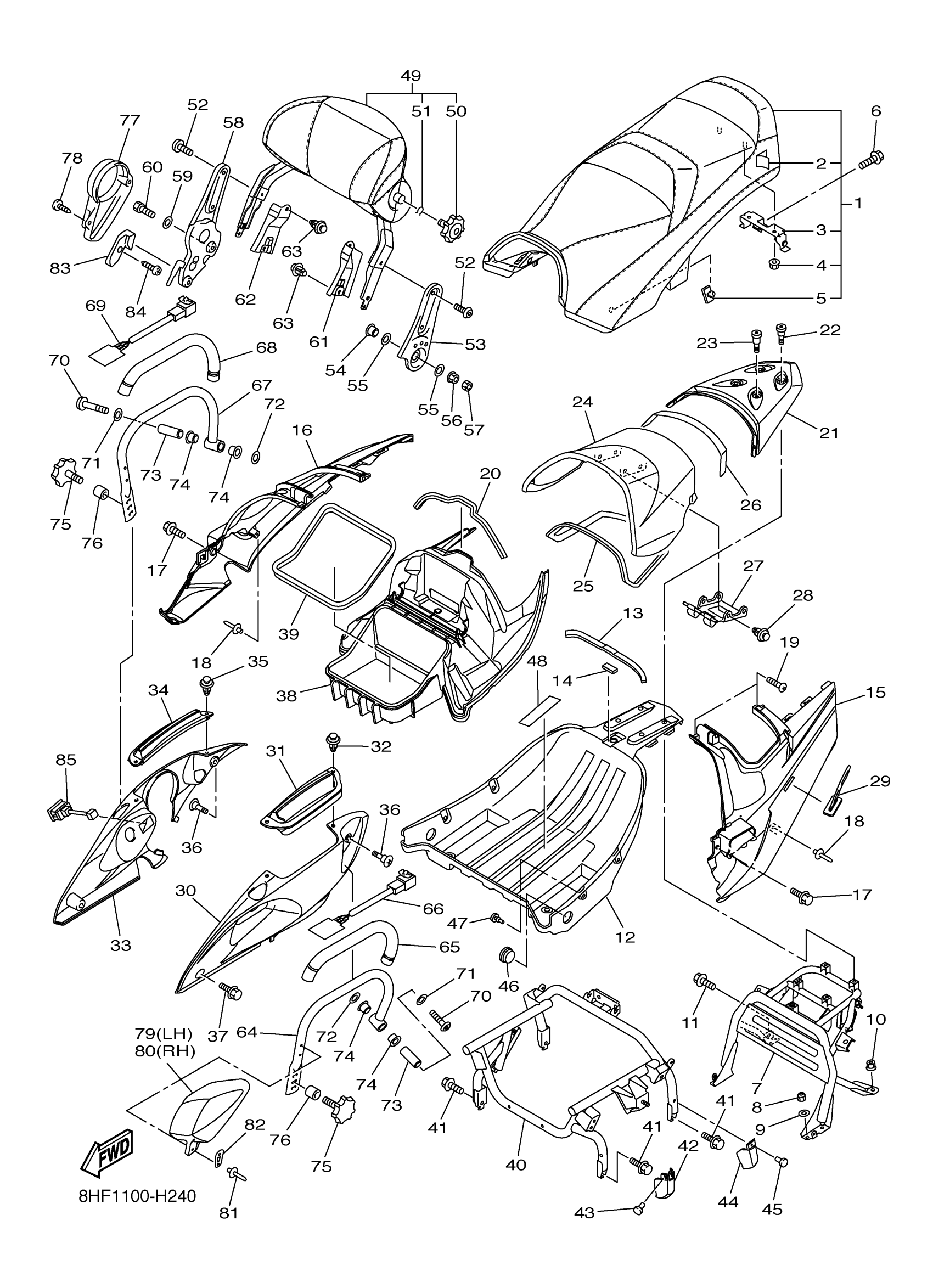

Yamaha RST90GTYS (RS VENTURE GT) 8HF10 2009 SEAT Diagram

#

Description
Price

1

DOUBLE SEAT ASSY

8HF-24730-00-00

Unavailable

2

SEAT COVER COMP.

8HF-2470F-00-00

Unavailable

3

BRACKET, SEAT LEVER 1

8HF-2475H-00-00

$30.05

4

NUT, U FLANGE

95604-06200-00

$2.35

5

DAMPER, SEAT

509-24724-00-00

$9.46

6

BOLT, FLANGE(8AB)

95817-08020-00

$7.00

7

REINFORCEMENT

8HF-24766-00-00

$318.86

8

NUT, NYLON

95717-08300-00

$2.57

9

WASHER, PLATE

90201-08053-00

$5.63

10

NUT, SELF-LOCKING

95602-08200-00

$2.77

11

BOLT, FLANGE

95822-08014-00

$6.68

12

COVER, TAIL

8ET-24756-01-00

$74.34

13

RUBBER, BUSHING

8HF-25975-00-00

$2.78

14

SEAL

8HF-24858-00-00

$1.49

15

COVER, TAIL 1

8HF-2471K-00-00

$179.88

16

COVER, TAIL 2

8HF-2472K-00-00

$124.48

17

BOLT

90109-06220-00

$7.43

18

RIVET

90269-05006-00

$1.88

19

SCREW, TRUSS TAP.

97707-50025-00

$6.18

20

SEAL, SEAT

8HF-78425-00-00

$24.32

21

COVER, TAIL

8HF-24756-00-P1

$142.28

22

BOLT

90109-08198-00

$4.17

23

BOLT

90109-08199-00

$6.32

24

LID 1

8HF-2473T-00-P1

$229.15

25

SEAL

8HF-2475M-00-00

$4.05

26

DAMPER, SEAT

8HF-24723-00-00

$9.40

27

HINGE, SEAT

8HF-24769-00-00

$61.40

28

RIVET

90269-08005-00

$2.69

29

BAND, SEAT

8HF-24734-00-00

$17.35

30

COVER

8HF-24796-00-00

$105.57

31

COVER, SEAT

8HF-24731-00-00

$47.43

32

RIVET

90269-08005-00

$2.69

33

COVER,2

8HF-2475X-00-00

$86.98

34

COVER, SEAT

8HF-24731-10-00

$47.43

35

RIVET

90269-08005-00

$2.69

36

SCREW, BINDING

90154-06009-00

$2.92

37

BOLT

90109-06220-00

$7.43

38

BOX 1

8HF-2473R-00-00

$200.32

39

SEAL, SEAT 2

8HF-7842A-00-00

$31.85

40

SEAT BASE, REAR

8HF-2475C-00-00

$505.57

41

BOLT, FLANGE(8AB)

95817-08020-00

$7.00

42

PROTECTOR,1

8HF-2476U-00-00

$15.75

43

RIVET(52W)

90269-05049-00

$2.06

44

PROTECTOR,2

8HF-2476V-00-00

$15.75

45

RIVET(52W)

90269-05049-00

$2.06

46

PLUG(MG5)

90338-28239-00

$5.63

47

PLUG

90338-05008-00

$2.49

48

EMBLEM

8FM-24897-01-00

$3.54

49

SEAT BACK ASSY

8HF-24790-00-00

Unavailable

50

KNOB

8DM-24598-01-00

$48.00

51

CLIP

8DM-24519-00-00

$6.40

52

BOLT, BUTTON HEAD

92017-10016-00

$6.42

53

ARM 2

8HF-2477R-00-00

$16.95

54

COLLAR(4BP)

90387-083Y8-00

$5.32

55

WASHER, PLATE

90202-12236-00

$3.60

56

NUT,FLANGE(J10)

95702-08500-00

$0.80

57

. NUT

95380-08700-00

$2.89

58

SEAT LEVER ASSY

8DM-24760-00-00

$203.83

59

WASHER, PLATE

90201-10029-00

$6.28

60

BOLT

97012-10016-00

$1.71

61

MOLD, SEAT

8HF-24785-00-00

$7.34

62

MOLD 2

8HF-2478K-00-00

$8.15

63

RIVET

90269-08006-00

$2.72

64

ASSIST, GRIP

8HF-2474A-00-00

$121.94

65

COVER 1

8HF-2842M-00-00

$42.51

66

ASSIST GRIP WARMER ASSY 1

8HF-2474B-00-00

$74.75

67

ASSIST,GRIP 2

8HF-2474W-00-00

$101.35

68

COVER 1

8HF-2842M-00-00

$42.51

69

ASSIST GRIP WARMER ASSY 1

8HF-2474B-00-00

$74.75

70

BOLT, BUTTON HEAD

92017-10080-00

$5.92

71

WASHER, PLATE (17K)

90201-106F2-00

$7.66

72

WASHER, PLATE

90201-10043-00

$1.88

73

COLLAR 802473690000

90387-10090-00

$17.48

74

BUSH

90386-14002-00

$6.20

75

BODY, SEAT LOCK

8CW-2479H-00-00

$25.69

76

DAMPER, SEAT

8CW-24737-00-00

$9.88

77

COVER,2

8DM-2475X-01-00

$16.55

78

SCREW, TRUSS TAP.

97707-40012-00

$6.69

79

GUARD,BRUSH 1

8HF-26141-00-00

Unavailable

80

GUARD, BRUSH 2

8HF-26142-00-00

Unavailable

81

RIVET, BLIND (8M6)

90267-48051-00

$1.88

82

WASHER, SPECIAL

8HF-24722-00-00

$12.42

83

LEVER, SEAT

8DM-2477F-00-00

$9.09

84

SCREW, TAPPING

97702-40008-00

$0.22

85

SWITCH

8ET-82917-00-00

$184.08
