- RST90GTYS (RS VENTURE GT) 8HF10 2009
RADIATOR HOSE

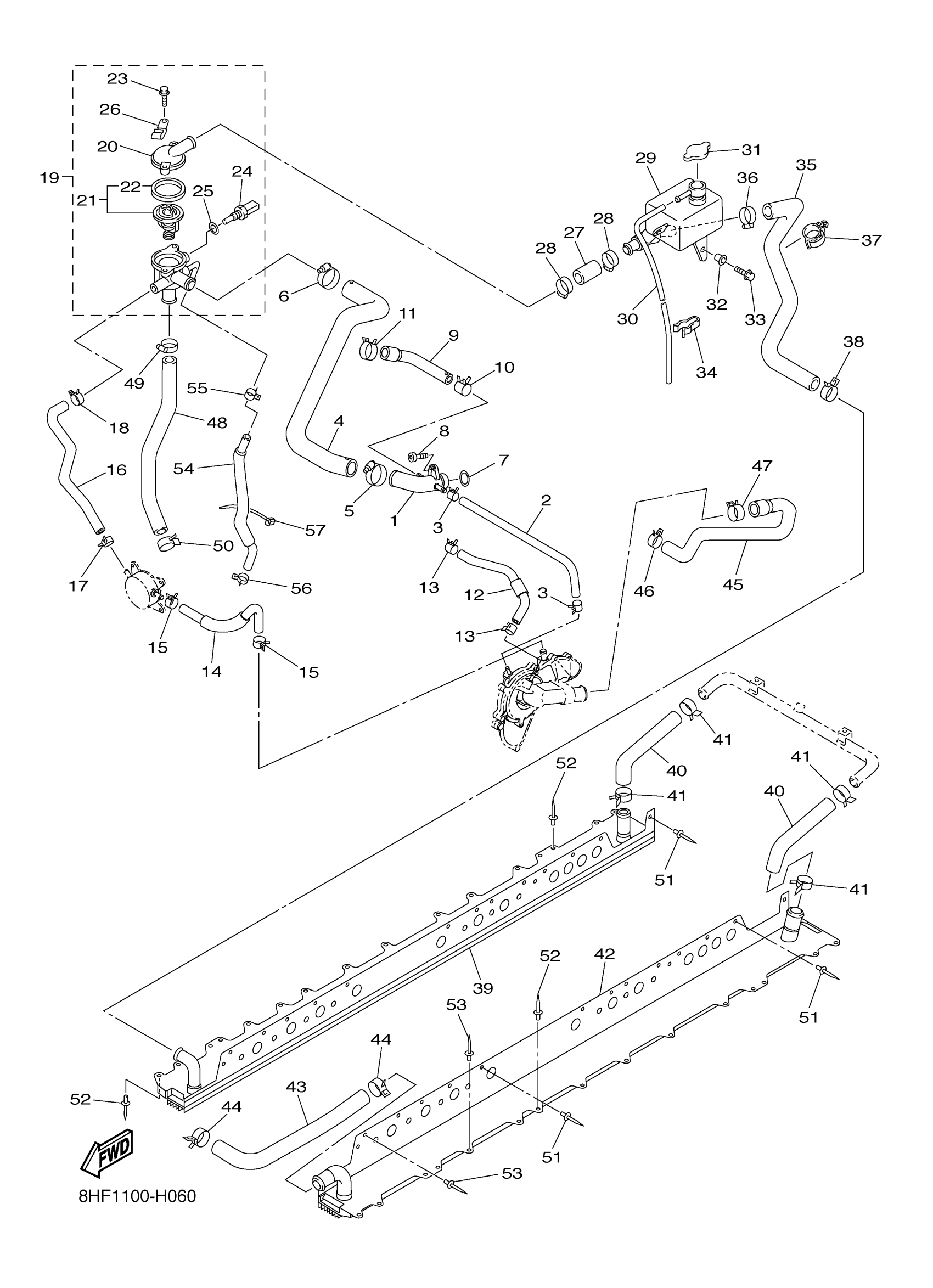

Yamaha RST90GTYS (RS VENTURE GT) 8HF10 2009 RADIATOR HOSE Diagram
#
1
PIPE 2
8HF-12482-00-00
Unavailable
2
PIPE 5
8GL-12485-00-00
$11.49
3
CLIP
90467-110A2-00
Unavailable
4
HOSE 2
8HF-1243E-00-00
Unavailable
5
HOSE CLAMP ASSY
90450-35001-00
$5.60
6
HOSE CLAMP ASSY
90450-35001-00
$5.60
7
O-RING
93210-235A1-00
$7.49
8
BOLT(3MA)
91312-06016-00
$5.60
9
HOSE 2
8HF-12577-00-00
Unavailable
10
CLIP
90467-110A2-00
Unavailable
11
CLIP
90467-120A5-00
$8.49
12
HOSE 3
8GL-12578-00-00
Unavailable
13
CLIP
90467-110A2-00
Unavailable
14
HOSE 5
8ES-12588-00-00
Unavailable
15
CLIP(3TB)
90467-17128-00
$8.49
16
HOSE 6
8GM-12589-00-00
Unavailable
17
CLIP(3TB)
90467-17128-00
$8.49
18
CLIP(3TB)
90467-17128-00
$8.49
19
JOINT ASSY
8FP-12580-00-00
Unavailable
20
COVER, THERMOSTAT
8FP-12413-00-00
Unavailable
21
THERMOSTAT ASSY
8FP-12410-00-00
Unavailable
22
SEAL, THERMOSTAT
8FP-12412-00-00
Unavailable
23
BOLT, FLANGE
95022-06020-00
Unavailable
24
THERMOSENSOR ASSY
8CC-85790-01-00
Unavailable
25
WASHER, PLATE
90201-12790-00
Unavailable
26
. CLAMP
90465-06M28-00
Unavailable
27
HOSE,3
8FP-1243F-00-00
Unavailable
28
HOSE CLAMP ASSY
90450-35001-00
$5.60
29
TANK, RESERVE
8FA-1249B-02-00
Unavailable
30
HOSE (L600)
90445-083J5-00
Unavailable
31
CAP, RADIATOR
4FL-12462-00-00
Unavailable
32
COLLAR (838-84757-00)
90387-06024-00
Unavailable
33
BOLT, FLANGE
95817-06020-00
Unavailable
34
CLAMP(53Y)
90464-15065-00
Unavailable
35
HOSE, 4
8FA-1244G-01-00
Unavailable
36
HOSE CLAMP ASSY
90450-35001-00
$5.60
37
CLAMP
90464-32002-00
Unavailable
38
CLIP (8M6)
90467-28046-00
Unavailable
39
HEAT EXCHANGER
8ET-1240F-01-00
Unavailable
40
PIPE 6
8FA-12476-00-00
Unavailable
41
CLIP (8M6)
90467-28046-00
Unavailable
42
HEAT EXCHANGER
8ET-1240E-01-00
Unavailable
43
PIPE 7
8FA-12477-00-00
Unavailable
44
CLIP (8M6)
90467-28046-00
Unavailable
45
PIPE 8
8ES-1248A-00-00
Unavailable
46
CLIP (8M6)
90467-28046-00
Unavailable
47
CLIP
90467-310A0-00
Unavailable
48
PIPE 9
8HF-1248E-00-00
Unavailable
49
HOSE CLAMP ASSY
90450-35001-00
$5.60
50
CLIP (8M6)
90467-28046-00
Unavailable
51
RIVET, BLIND
90267-47195-00
Unavailable
52
RIVET, BLIND
90267-48023-00
Unavailable
53
RIVET, BLIND
90267-48177-00
Unavailable
54
HOSE 4
8FA-12579-00-00
Unavailable
55
CLIP(3BM)
90467-10135-00
Unavailable
56
CLIP (7K7)
90467-11044-00
Unavailable
57
CLAMP(4FM)
90464-15195-00
Unavailable
