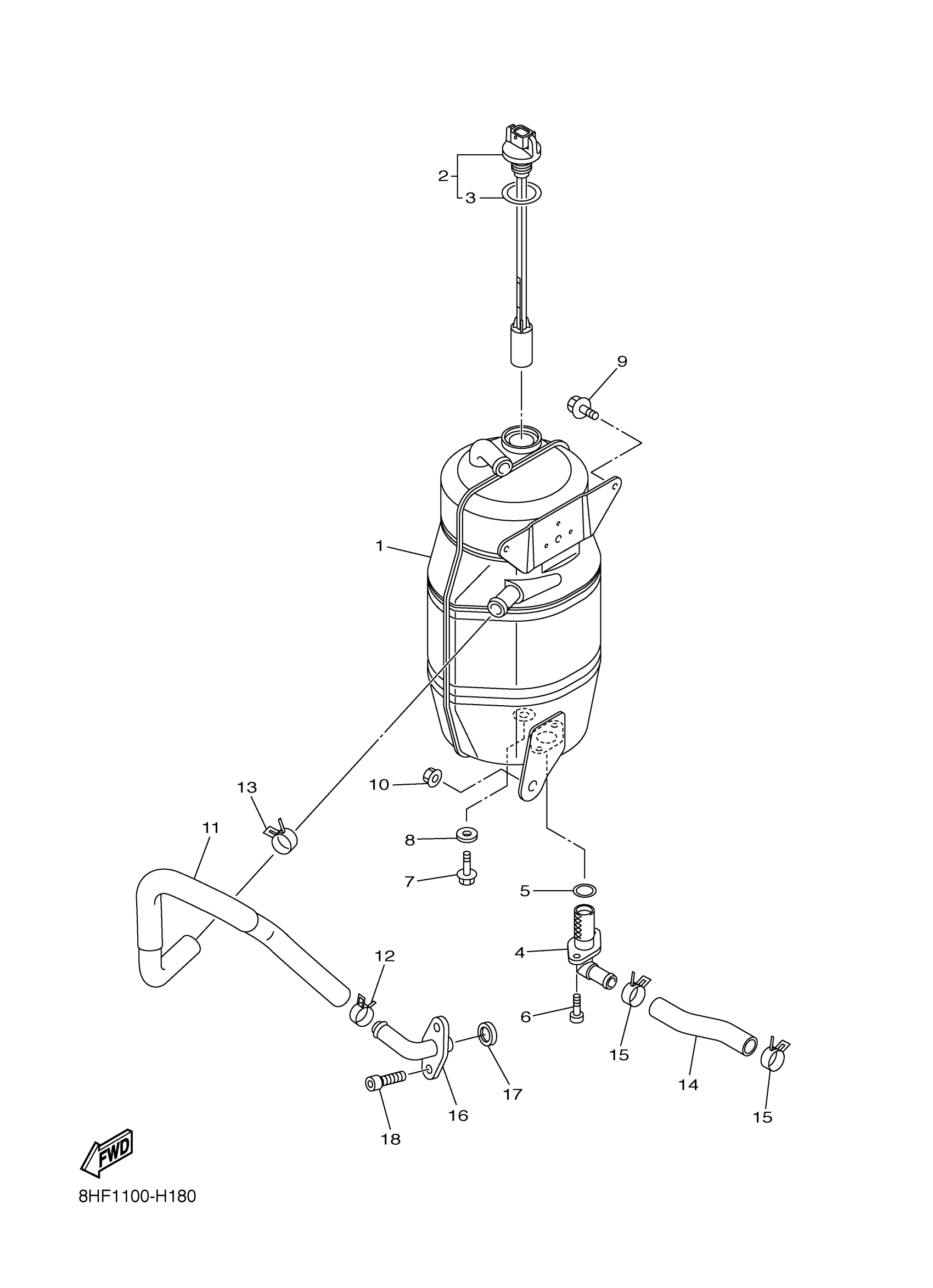

Yamaha RST90GTYS (RS VENTURE GT) 8HF10 2009 OIL TANK Diagram

#

Description
Price

1

TANK, OIL

8HF-21751-01-00

Unavailable

2

OIL LEVEL GAUGE ASSY

8GL-85720-00-00

$54.92

3

O-RING

8FP-85075-00-00

$8.25

4

OIL PIPE COMP. 2

8GL-13406-00-00

$115.15

5

O-RING

93210-24001-00

$5.45

6

BOLT(3MA)

91312-06016-00

$4.89

7

BOLT, FLANGE

95817-08012-00

$3.98

8

GASKET(3AJ)

90430-08204-00

$6.36

9

BOLT, FLANGE

95817-06016-00

$1.49

10

NUT, SELF-LOCKING

95602-08200-00

$2.77

11

HOSE, OIL 1

8GM-13464-00-00

$47.14

12

CLIP(34X)

90467-22097-00

$7.14

13

CLIP(34X)

90467-22097-00

$7.14

14

HOSE, OIL 2

8HF-13465-00-00

$11.23

15

CLIP(34X)

90467-22097-00

$7.14

16

CONNECTOR, SUCTION PIPE

8ES-13115-00-00

$39.06

17

O-RING (26H)

93210-16629-00

$5.86

18

BOLT(3MA)

91312-06016-00

$4.89
