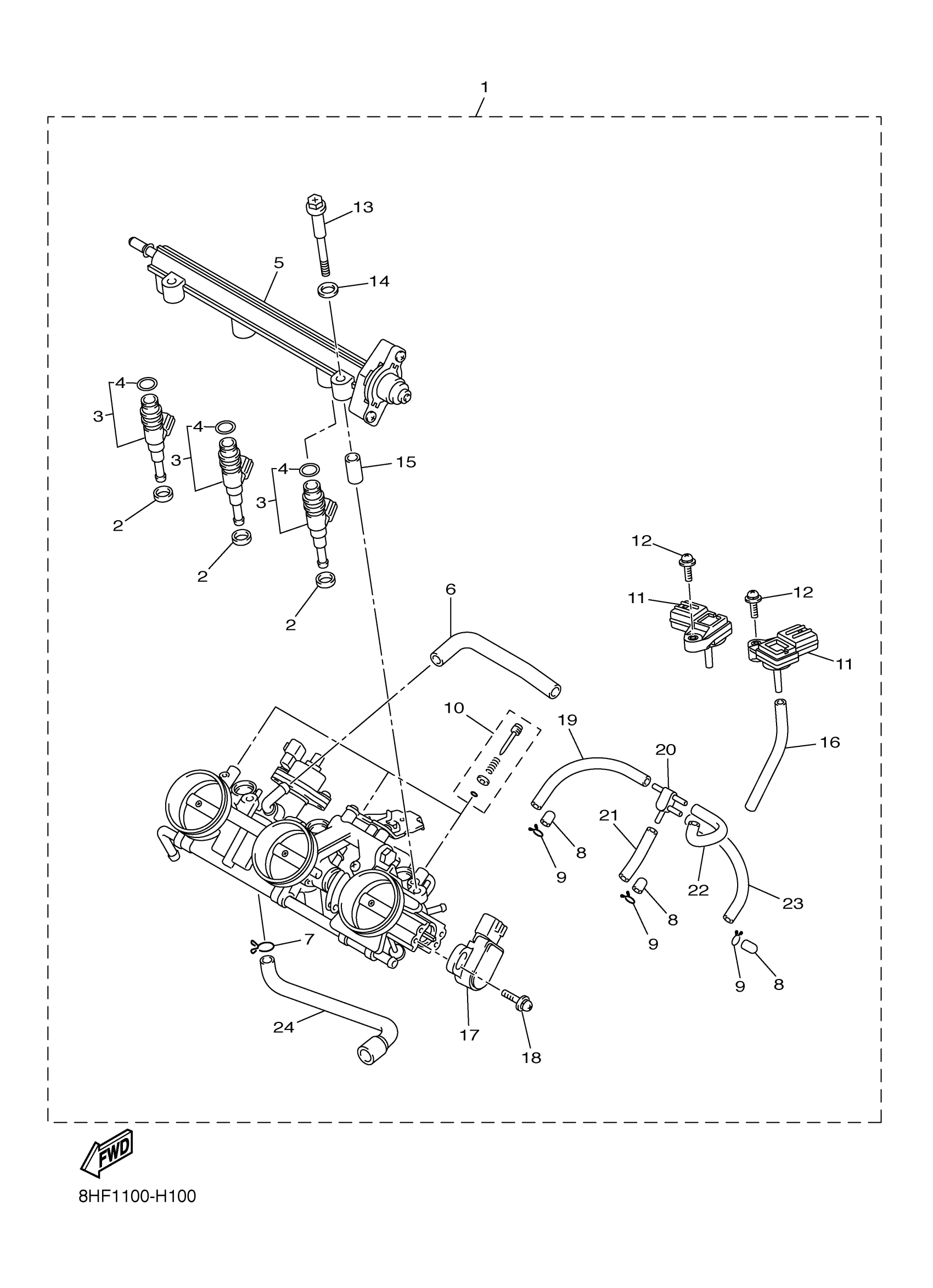

Yamaha RST90GTYS (RS VENTURE GT) 8HF10 2009 INTAKE 2 Diagram

#

Description
Price

1

THROTTLE BODY ASSY

8JA-13750-00-00

$1,561.99

2

GASKET, MANIFOLD

8FP-13556-00-00

$12.27

3

INJECTOR ASSY

8GC-13761-00-00

$254.51

4

O-RING

8GC-13769-00-00

Unavailable

5

PIPE INLET ASSEMBLY

8HF-13930-00-00

$286.02

6

HOSE, AIR

8GL-13895-00-00

$23.22

7

CLIP

90467-150A2-00

$6.25

8

CAP

895-14169-00-00

$4.02

9

CLIP, PIPE

8A7-14139-00-00

$6.80

10

ADJUST SCREW SET

8GL-14503-00-00

$13.66

11

SENSOR, PRESSURE

1WS-82380-00-00

$166.31

12

SCREW

2C0-14216-00-00

$3.03

13

BOLT 1

8GL-13573-00-00

$11.66

14

WASHER

8GL-13571-00-00

$3.37

15

COLLAR

8GL-14534-00-00

$8.31

16

PIPE

5PW-14349-00-00

$8.60

17

THROTTLE SENSOR AS

8GL-85885-01-00

$76.17

18

SCREW

8CC-14216-10-00

$7.12

19

HOSE

5JW-14987-00-00

$14.80

20

CONNECTOR

5PW-1410F-00-00

$17.45

21

PIPE

8FP-14349-30-00

$4.15

22

HOSE, AIR 2

8HF-13892-00-00

$37.43

23

HOSE, AIR 3

8GL-13893-00-00

$6.31

24

HOSE 1

8HF-13545-00-00

$14.35
