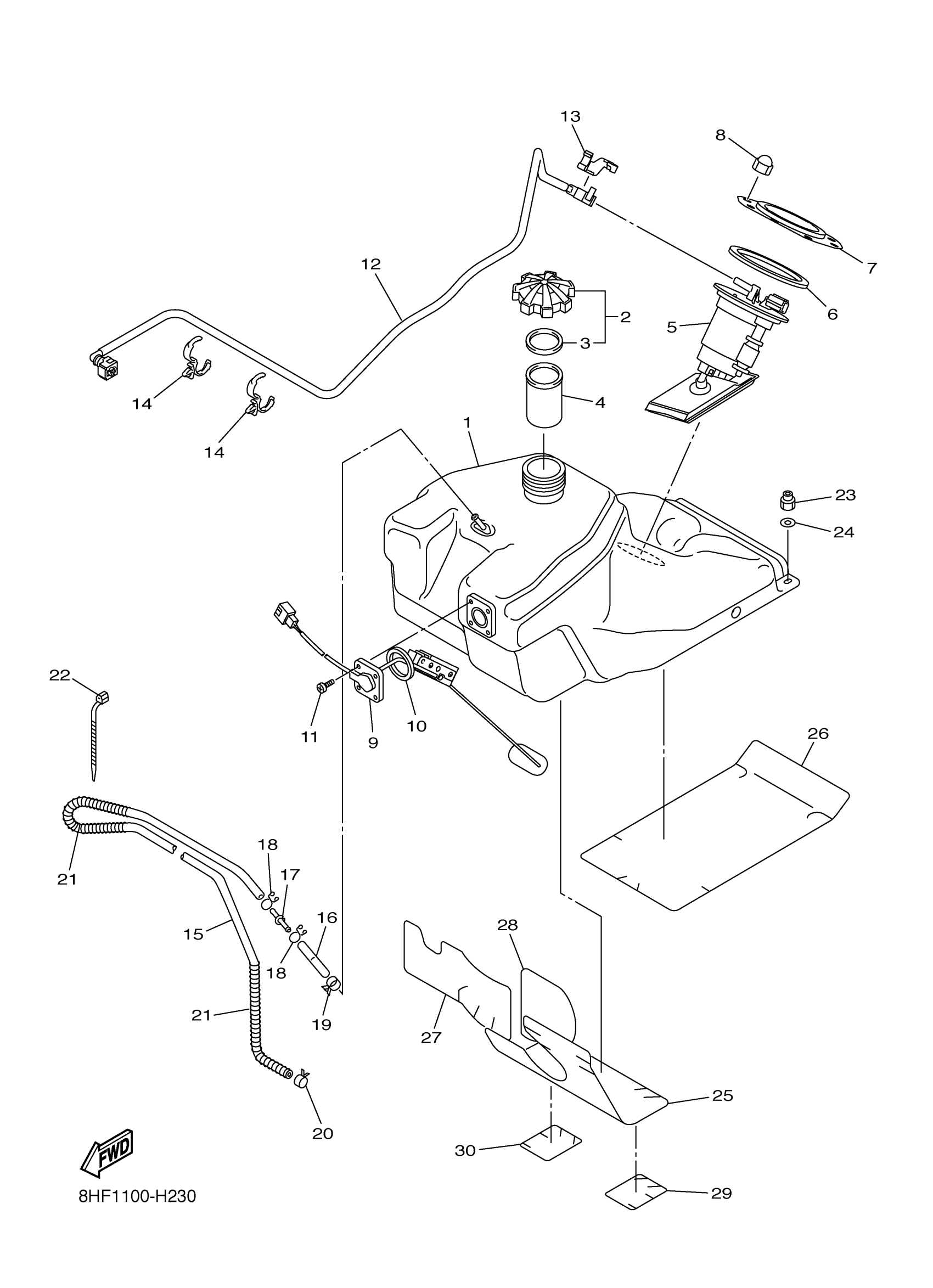

Yamaha RST90GTYS (RS VENTURE GT) 8HF10 2009 FUEL TANK Diagram

#

Description
Price

1

TANK, FUEL

8HF-24111-00-00

$968.99

2

CAP ASSY

8FG-24610-01-00

$34.95

3

GASKET, CAP 1

8HV-24641-00-00

Unavailable

4

TUBE, FILLER

8FP-24114-00-00

$4.98

5

FUEL PUMP COMP.

8GL-13907-04-00

Unavailable

6

O-RING

8FP-24486-00-00

$17.26

7

BRACKET, FUEL PUMP

8FP-24491-00-00

$15.88

8

NUT (J17)

95380-06800-00

$6.74

9

SENDER UNIT ASSY, FUEL METER

8HF-85752-00-00

$58.25

10

O-RING (102)

93210-41041-00

$5.86

11

SCREW, BIND

98902-05008-00

$1.23

12

PIPE, FUEL 1

8HF-24311-00-00

Unavailable

13

CLAMP

90464-14004-00

$5.40

14

CLAMP(4TR)

90464-18246-00

$1.77

15

TUBE, FLEXIBLE VINYL

91A20-05110-00

Unavailable

16

PIPE, JOINT

8FR-24461-00-00

$3.11

17

PIPE, JOINT

8H8-24376-00-00

$4.29

18

CLIP (8L2)

90467-08017-00

$7.51

19

CLIP (8A1)

90467-09026-00

$2.72

20

CLIP (8A1)

90467-09026-00

$2.72

21

SPRING, COMPRESSION (10L)

90501-08668-00

$10.02

22

CLAMP(4FM)

90464-15195-00

$2.77

23

NUT, NYLON

95717-08300-00

$2.57

24

WASHER, PLATE

90201-08053-00

$5.63

25

PROTECTOR, FUEL TANK

8FP-24141-00-00

$66.35

26

PROTECTOR, FUEL TANK

8FA-24141-10-00

$58.80

27

INSULATOR, FUEL TANK 1

8FP-2416F-00-00

Unavailable

28

INSULATOR, FUEL TANK 1

8FP-2416F-10-00

$14.42

29

INSULATOR, FUEL TANK 1

8HF-2416F-00-00

$4.20

30

INSULATOR, FUEL TANK 2

8HF-2416G-00-00

$4.23
